If you’re staring at a check engine light, a car that won’t start, or one stuck in limp mode because of a Bosch MG1CS201 ECU, you’re in the right place. I’ve spent years on the bench fixing these exact units, and I’m going to walk you through everything I know – no fluff, just what actually works in the real world.
The Bosch MG1CS201 (often paired with the TC298 processor) shows up in a lot of modern performance and daily drivers. When it fails, it can leave you stranded or costing a fortune at the dealer. The good news? Most of these problems can be repaired properly if you know what to look for. Let’s get into it.

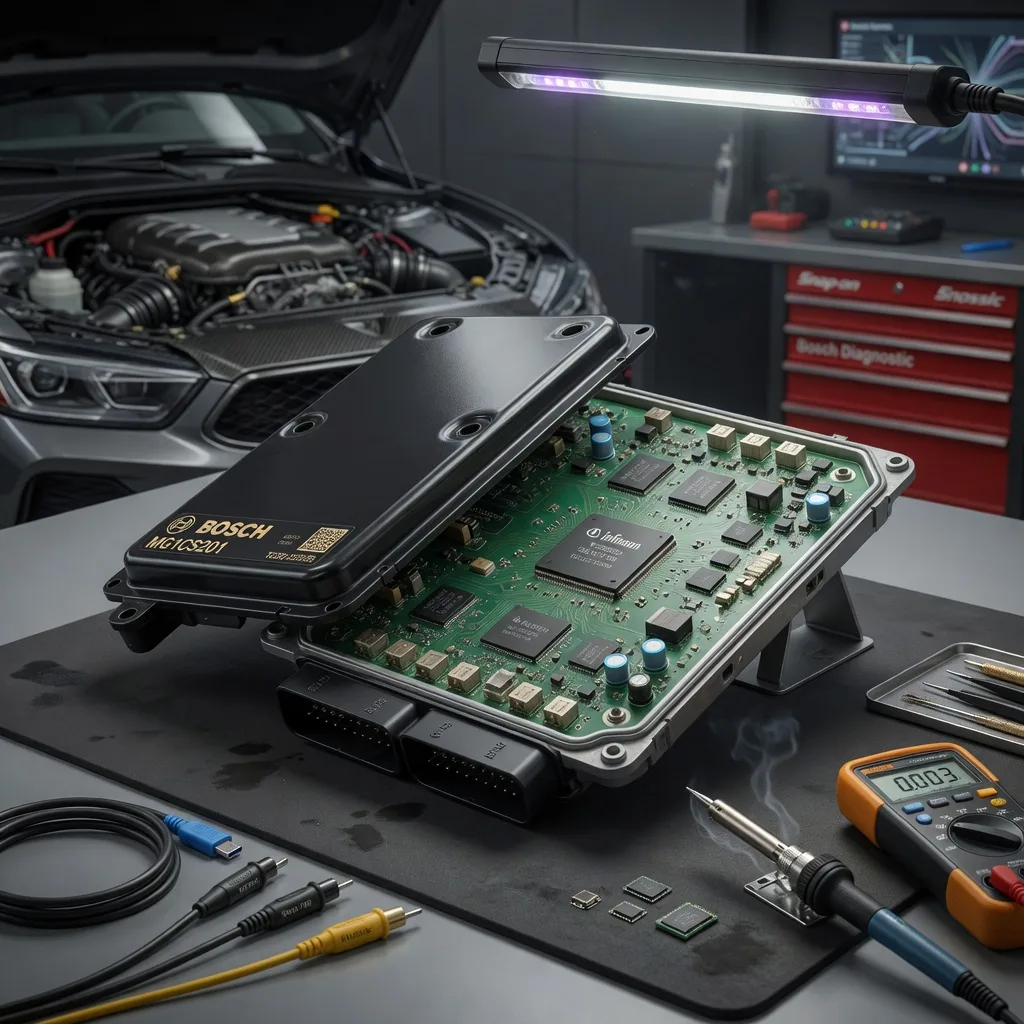

What Exactly Is the Bosch MG1CS201 ECU?
The MG1CS201 is Bosch’s engine control unit used across various petrol and diesel applications. It manages fuel injection, ignition timing, boost control, emissions systems, and a bunch of safety features. It’s a solid piece of hardware when it’s healthy, but like any modern ECU it can take a beating from heat, vibration, moisture, and electrical gremlins.
You’ll find it in cars that need precise control and decent power output. When it starts acting up, the symptoms hit hard: no-start conditions, random cut-outs, faulty sensor readings, communication errors with diagnostic tools, or the car just feeling gutless.
Common Bosch MG1CS201 ECU Problems I See Every Week
After repairing dozens of these, here are the failures that come through the door most often:
- Water and moisture damage
- The biggest killer. Even a small amount of water gets inside, corrodes tracks and components, and causes intermittent or total failure.
- Power stage and driver failures
- The output drivers that control injectors, coils, or solenoids burn out. Car may start then die, or run on fewer cylinders.
- TC298 processor or surrounding circuit issues
- Communication errors, boot problems, or complete no-response when you try to read the ECU.
- Capacitor and power supply faults
- Aging or heat-damaged capacitors cause voltage drops, random resets, and weird behavior under load.
- Connector and pin problems
- Bent, corroded, or pushed-back pins at the multi-pin connector. Looks fine until you wiggle the plug.
- Immobilizer and coding glitches
- After battery issues or previous work, the ECU loses sync with the immobilizer or other modules.
- Overheating related damage
- Poor engine bay heat management cooks the board over time.
If your scan tool throws codes related to internal control module failure, injector circuit faults that clear then return, or just “ECU not responding,” the MG1CS201 is often the culprit.
Tools You’ll Actually Need for Bosch MG1CS201 ECU Repair
Don’t waste money on fancy stuff you won’t use. Here’s my real bench setup:
- Good quality soldering station with fine tips and hot air
- Multimeter and preferably an oscilloscope for signal checking
- Magnifying lamp or microscope (these boards are dense)
- ECU programmer/bench tool that supports MG1CS201 (Flex, Autotuner, KT200, etc. – pick what you trust)
- Desoldering braid, flux, and quality solder
- Isopropyl alcohol and soft brushes for cleaning
- Replacement components (drivers, capacitors, sometimes the TC298 if it’s gone)
- Donor board or known-good parts for cloning if needed
- Proper ESD protection – wrist strap every time
If you’re not comfortable with surface-mount work, stop here and take it to someone who does this daily. A ruined board is worse than a broken one.
Step-by-Step Bosch MG1CS201 ECU Repair Process
1. Proper Diagnosis First
Never open an ECU just because you “think” it’s bad.
- Full diagnostic scan with a capable tool
- Check powers and grounds at the ECU connector with the car trying to run
- Wiggle test harnesses while monitoring live data
- Look for water ingress around the ECU mounting area
- Compare freeze-frame data and see if faults appear under specific conditions (hot, wet, under load)
Only when external causes are ruled out do we pull the unit.
2. Safe Removal and Opening
Disconnect the battery. Note all connector orientations.
Most MG1CS201 units are sealed. Carefully cut or unclip the housing without damaging the board. Take photos at every stage – you’ll thank yourself later.
3. Visual and Physical Inspection
Under good light and magnification look for:
- Corrosion (green/white powder)
- Burnt or cracked components
- Lifted tracks
- Bulging or leaking capacitors
- Damaged solder joints, especially around power components
Clean the board thoroughly with isopropyl and a soft brush. Dry completely.
4. Component-Level Repair
- Replace damaged drivers and power stages with exact or better-spec equivalents
- Change all suspect capacitors in the power supply section
- Repair broken tracks with magnet wire if needed
- Reflow any cracked joints
- In severe cases, replace the TC298 processor (this is advanced and requires proper programming afterward)
5. Testing on the Bench
Power the ECU safely on the bench. Check voltages at key points.
Read the flash and EEPROM. Verify the file is intact.
If the original file is corrupted, restore from a verified backup or clone from a matching donor.
6. Reassembly and Vehicle Testing
Reseal the housing properly (use the right sealant – moisture is the enemy).
Refit, clear codes, and do a full road test and dyno check if possible.
Monitor live data for at least 30-50 miles of mixed driving. Heat cycles matter.
Cloning and Programming Tips for MG1CS201
Sometimes repair isn’t enough and you need to clone. The MG1CS201 usually needs both flash and EEPROM (and sometimes additional security data) transferred correctly. Always work with full backups. Virtual read options exist on some tools, but physical bench is more reliable for damaged units.
After hardware repair, a clean original file or a carefully modified one can be written. If you’re tuning afterward, make sure the base file is solid first – garbage in, garbage out.
Can You Tune a Repaired Bosch MG1CS201?
Absolutely. Once the hardware is healthy, these ECUs respond very well to proper remapping. We’ve seen strong, reliable gains on both stock turbo and upgraded setups when the fundamentals are right. Just don’t throw aggressive maps at a half-repaired unit. Fix first, tune second.
Prevention: Stop the Same Failure Happening Again
- Keep the ECU mounting area dry and well sealed
- Fix any water leaks in the engine bay or underbody immediately
- Maintain good battery and charging system health (voltage spikes kill electronics)
- Avoid cheap jump starts and poor quality chargers
- If the car sees track use or extreme heat, consider better heat shielding or relocation if practical
When Repair Isn’t Worth It
If the board is heavily corroded, multiple layers damaged, or the cost of parts and time exceeds a good used or new unit, replacement makes more sense. We always give customers the honest numbers.
Real Talk from the Workshop
I’ve had cars come in that dealers quoted thousands for a new ECU plus coding. We opened them, cleaned corrosion, replaced three drivers and a handful of caps, resealed, and the car ran perfectly. Owner saved a ton and kept the original immobilizer pairing. That’s the kind of win that feels good.
On the flip side, I’ve also seen DIY attempts with the wrong iron temperature lift pads and turn a repairable board into scrap. Know your limits.
Final Checklist Before You Start or Hand It Over
- Full diagnostics completed
- External wiring and sensors verified
- Correct tools and replacement parts ready
- Backup of original software secured
- Proper sealing method planned
- Post-repair testing plan in place
