The Bosch MD1 is used in many modern diesel vehicles and commercial engines. It manages important systems such as fuel injection, air control, emissions equipment and engine communication. Bosch describes the MD1 as the central control unit that processes engine information and controls fuel supply, injection and aftertreatment systems.

When an MD1 ECU develops a fault, the symptoms can look like a fuel problem, wiring issue or sensor failure. That is why correct testing matters before spending money on a replacement unit.

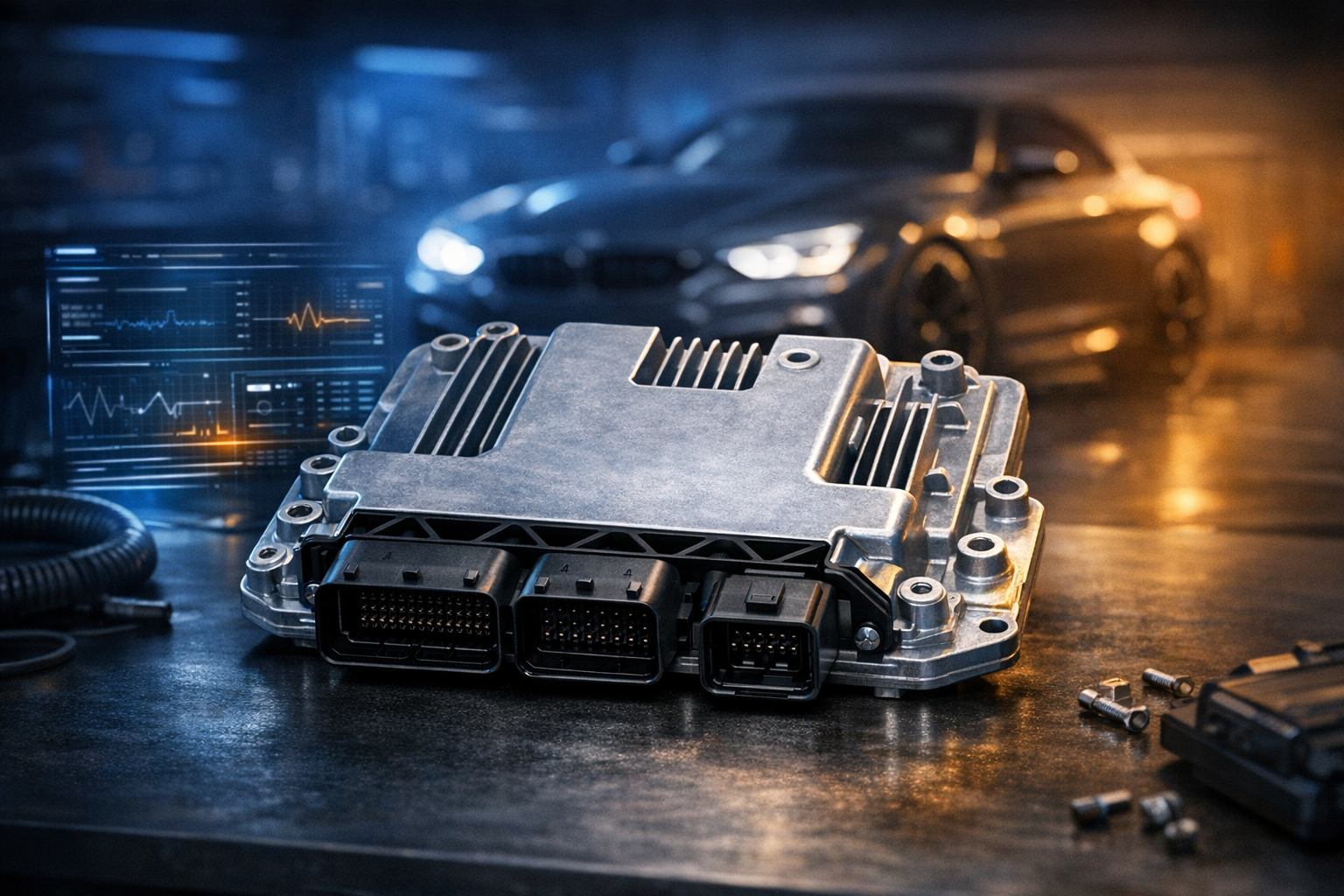

What Is the Bosch MD1 ECU?

Bosch MD1 is a family of engine control units rather than one single ECU. Common versions include:

• Bosch MD1CP004
• Bosch MD1CS004
• Bosch MD1CS006
• Bosch MD1CE101
• Bosch MD1CE200

The exact hardware depends on the vehicle, engine and software version. Two ECUs may look similar but use different software, processors, security systems or vehicle coding.

The Most Common Bosch MD1 Failures

1. No Communication With the ECU

One of the clearest warning signs is a complete loss of communication through the diagnostic socket.

Possible symptoms include:

• The scan tool cannot identify the engine ECU
• Multiple communication codes appear
• The engine does not start
• The dashboard shows several warning lights
• Programming or coding fails

A no-communication fault does not automatically prove that the ECU is damaged. A weak battery, blown fuse, bad ground, damaged CAN wiring or corrosion at the connector can create the same result.

Professional diagnosis should begin with battery voltage, ECU power supplies, grounds and CAN network checks.

2. Internal Power Supply Failure

Modern ECUs contain several internal voltage circuits that supply the processor, memory and driver components. Overvoltage, reverse polarity, jump-start mistakes or water damage can affect these circuits.

Typical symptoms include:

• A completely dead ECU
• Intermittent communication
• Random warning lights
• A no-start condition
• Sensors appearing to fail at the same time

If several unrelated sensors suddenly report faults together, the problem may be a shared power supply rather than multiple failed sensors.

3. Memory and Software Errors

The MD1 stores important calibration, coding and operating data. Corrupted memory or an interrupted programming session may cause checksum and internal control module errors.

Possible fault codes can include:

• P0606 — Control Module Processor Fault
• P060A — Internal Control Module Monitoring
• P060C — Internal Control Module Processor Performance
• P160A — Internal Control Module Memory or Checksum Error

These codes need to be interpreted carefully. Low voltage during programming, incorrect software, poor diagnostic connections and communication interruptions can all create programming-related faults.

4. Injector Driver Damage

The ECU controls the injectors through high-current electronic drivers. A shorted injector, damaged wiring or incorrect electrical load can damage an output stage inside the ECU.

Common symptoms include:

• One cylinder not contributing
• Rough running
• Excessive smoke
• A misfire that remains after replacing the injector
• One injector circuit showing no proper control signal

A professional technician should test the injector, wiring and ECU output together. Replacing the ECU without repairing a shorted injector or harness can damage the replacement unit as well.

5. CAN Communication Problems

The Bosch MD1 communicates with other vehicle modules through the CAN network. A damaged CAN transceiver or a short circuit on the network can prevent the ECU from communicating correctly.

Common signs include:

• U0100 communication codes
• Lost communication with the engine ECU
• Multiple modules going offline
• Intermittent starting problems
• Diagnostic communication that disappears when the engine bay becomes hot

The CAN wiring should be checked before condemning the ECU. A shorted module elsewhere on the vehicle can also interrupt communication.

6. Water and Corrosion Damage

Moisture is a serious enemy of engine control units. Leaking battery trays, blocked drains, poor seals and pressure washing can allow water to reach the ECU or its connectors.

Look for:

• Green or white corrosion on terminals
• Moisture inside the ECU connector
• Damaged seals
• Oxidation around the housing
• Faults that appear after rain or washing

A clean-looking connector does not always mean the ECU is safe. Corrosion can travel underneath terminals and affect low-voltage circuits.

How to Confirm a Bosch MD1 Failure

Before replacing or repairing the ECU, follow a logical test process:

1. Check battery voltage and charging voltage.
2. Inspect ECU fuses, relays and grounds.
3. Test power and ground directly at the ECU connector.
4. Check CAN high and CAN low wiring.
5. Scan every vehicle module for communication faults.
6. Inspect the ECU for water, heat or physical damage.
7. Compare live data with known-good values.
8. Test injectors, sensors and wiring before blaming the ECU.

Bosch diagnostic systems provide repair information, wiring diagrams, DTC troubleshooting and component test procedures for professional workshops.

Repair, Clone or Replace?

The best solution depends on the actual failure.

ECU repair may be suitable when the original unit has damaged power circuits, CAN components or injector drivers.

ECU cloning may transfer vehicle-specific data from the original ECU to a replacement unit, but compatibility must be confirmed by part number and software version.

Replacement and programming may be required when the processor or memory is beyond repair. The replacement ECU normally needs correct coding, configuration and immobiliser pairing.

Newer MD1 units can also include stronger security protections. Some later Bosch MD1CS004 units may reject certain bench communication attempts because of hardware and software security changes.
