Boost pressure control is one of the most important systems in a modern turbocharged engine. It ensures that the engine receives the correct amount of compressed air at every moment.

Whether the vehicle is idling, cruising through town or accelerating hard on the highway, the turbocharger must respond quickly and accurately. Too little boost can cause poor performance and weak acceleration. Too much boost can place excessive stress on the turbocharger, engine and exhaust system.

The engine control unit constantly compares the required boost pressure with the actual pressure measured in the intake system. It then adjusts the turbocharger to reach the target value.

In many modern diesel engines, this task is managed by the DDE engine control unit.

What Is Boost Pressure Control?

Boost pressure control regulates the amount of air supplied to the engine by controlling the turbocharger.

The turbocharger uses exhaust gases to drive a turbine wheel. This turbine is connected to a compressor wheel, which compresses fresh intake air before it enters the engine.

More compressed air means more oxygen in the combustion chamber. This allows the engine to burn fuel more efficiently and produce stronger torque, provided the pressure remains within safe limits.

The control system continuously considers several operating conditions, including:

• Engine speed
• Accelerator pedal position
• Engine load
• Air mass
• Intake-air temperature
• Atmospheric pressure
• Exhaust gas flow
• Fuel injection quantity
• Actual and target boost pressure

The result is smoother power delivery, improved fuel economy and better engine protection.

Open-Loop and Closed-Loop Boost Control

Boost pressure control generally operates in two different ways.

Open-Loop Control

In open-loop operation, the engine control unit uses predefined values stored in software maps.

Depending on engine speed, load and operating conditions, the control unit sends a calculated PWM signal to the turbocharger actuator. The actuator then moves the turbocharger vanes to a predetermined position.

This type of control is fast and predictable. However, it does not directly correct the result using the actual boost pressure.

Closed-Loop Control

In closed-loop operation, the actual boost pressure is measured by the boost pressure sensor.

The engine control unit compares the actual value with the target value. If the pressure is too low or too high, the control unit changes the actuator position to correct the difference.

This constant adjustment allows the engine to maintain the requested boost pressure under changing conditions.

For example, the system may open or close the turbocharger vanes when:

• The driver presses the accelerator
• Engine speed changes quickly
• The vehicle climbs a hill
• The intake-air temperature rises
• Atmospheric pressure changes
• The engine enters a regeneration cycle
• The vehicle operates at high altitude

Variable-Geometry Turbocharger

Many modern diesel engines use a variable-geometry turbocharger, often called a VGT or VTG turbocharger.

Unlike a traditional turbocharger with a simple wastegate, a variable-geometry turbocharger uses adjustable guide vanes around the turbine wheel.

These vanes control the speed and direction of the exhaust gas entering the turbine. This allows the turbocharger to produce useful boost pressure across a wide engine-speed range.

Vanes at Low Engine Speed

At low engine speed, the guide vanes move toward a more closed position.

This narrows the exhaust gas passage and increases exhaust gas velocity. The turbine receives more energy and begins spinning faster.

The result is:

• Faster boost response
• Better low-speed torque
• Reduced turbo lag
• Improved drivability

Vanes at High Engine Speed

At high engine speed, the guide vanes move toward a more open position.

This increases the exhaust gas passage and prevents boost pressure from becoming excessive.

The system can therefore provide strong low-speed response while still controlling boost pressure safely at higher engine speeds.

Electronic Turbocharger Actuator

The variable guide vanes are moved by an electronic boost pressure actuator.

The actuator usually contains:

• An electric motor
• A worm gear mechanism
• Internal control electronics
• Position monitoring components
• A mechanical connection to the turbocharger vane lever

The actuator is mounted directly to the turbocharger. Its movement is transferred through a lever on the turbine housing.

On some turbocharger designs, the actuator cannot be replaced separately. The exact repair procedure depends on the vehicle and turbocharger version.

Before replacing the turbocharger, the electrical system, actuator operation and mechanical vane movement should be tested carefully.

How the Turbocharger Actuator Works

The DDE control unit sends a pulse-width-modulated signal, commonly known as a PWM signal, to the electronic actuator.

The actuator converts this signal into a target position for the turbocharger vanes.

A typical operating range may be approximately:

• 10% duty cycle: Vanes largely open
• 95% duty cycle: Vanes largely closed

The exact relationship can vary depending on the turbocharger design and software calibration.

The actuator’s internal electronics control the electric motor and monitor its operation. If the actuator becomes blocked or develops an internal electrical fault, it can report the problem to the engine control unit.

Checking Variable Turbocharger Geometry

The turbocharger vane lever should move smoothly and quickly between its minimum and maximum positions.

On many systems, the total movement is approximately 35 to 45 degrees, although the exact specification depends on the turbocharger model.

During inspection, check that:

• The lever moves without sticking.
• The movement is smooth across the entire range.
• There is no excessive mechanical play.
• The actuator responds without delay.
• The lever does not stop before reaching its end positions.
• The electrical connector is clean and secure.

A seized or restricted vane mechanism can cause both overboost and underboost conditions.

Carbon deposits are a common cause of restricted movement, particularly on diesel engines that operate regularly at low speed or with heavy exhaust-soot loading.

Boost Pressure Sensor or MAP Sensor

The boost pressure sensor is commonly known as a MAP sensor. MAP means “Manifold Absolute Pressure.”

This sensor measures the absolute pressure inside the intake system and sends an electrical signal to the engine control unit.

Absolute pressure includes:

1. Atmospheric pressure
2. Additional turbocharger boost pressure

The sensor is commonly installed on the intake manifold or in the charge-air pipe. It normally receives:

• A reference voltage, often 5 volts
• Ground
• A signal connection to the engine control unit

The sensor uses an internal pressure-sensitive element to convert intake pressure into an electrical voltage.

Symptoms of a Faulty MAP Sensor

A faulty or contaminated MAP sensor may cause:

• Reduced engine power
• Poor throttle response
• Unstable acceleration
• Increased fuel consumption
• Check-engine warning
• Limp-home mode
• Boost pressure fault codes
• Incorrect turbocharger control
• Deactivated exhaust gas recirculation

If the engine control unit detects an implausible MAP signal, it may disable boost pressure control and use a substitute value.

A sensor covered with oil mist or soot may also provide inaccurate readings. Cleaning is sometimes possible, but the sensor must not be damaged during removal or cleaning.

Charge-Air Temperature Sensor

The charge-air temperature sensor measures the temperature of the compressed air after it has passed through the turbocharger and charge-air cooler.

This information is essential because hot air is less dense than cold air. At the same pressure and volume, hot air contains less oxygen.

The engine control unit uses the temperature signal to calculate air density and adjust fuel injection, boost pressure and engine torque.

The sensor normally works as a temperature-dependent resistor. In many applications, its resistance decreases as temperature increases.

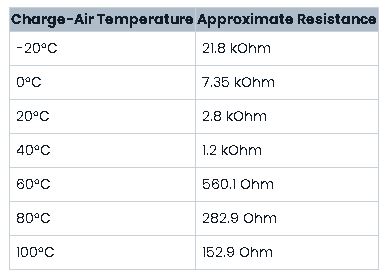

Example Resistance Values

These values are examples and may vary between engines and sensor types. Always use the correct manufacturer data for the specific vehicle.

Symptoms of a Faulty Charge-Air Temperature Sensor

A defective charge-air temperature sensor can cause:

• Reduced engine torque
• Limited fuel injection
• Poor throttle response
• Increased fuel consumption
• Limp-home operation
• Incorrect intake-temperature readings
• Deactivated boost control
• Deactivated exhaust gas recirculation

If the temperature signal is missing or implausible, the engine control unit may use a substitute value and limit engine performance.

Common Boost Control Faults

The engine control unit monitors boost pressure control for several possible problems.

Positive Boost Deviation

A positive deviation occurs when actual boost pressure is higher than the target value.

Possible causes include:

• Turbocharger vanes stuck in a closed position
• Faulty electronic actuator
• Carbon buildup in the turbine mechanism
• Incorrect MAP sensor signal
• Wiring or control faults
• Incorrect actuator calibration
• Restricted exhaust flow

Excessive boost should never be ignored. Continued driving under heavy load may increase thermal and mechanical stress.

Negative Boost Deviation

A negative deviation occurs when actual boost pressure remains below the requested value.

Common causes include:

• Split charge-air hose
• Loose hose clamp
• Cracked intercooler
• Leaking intake connection
• Sticking turbocharger vanes
• Faulty actuator
• Damaged turbocharger
• Blocked air filter
• Faulty MAP sensor
• Electrical connection problems

A disconnected charge-air hose is especially common. Typical signs include loud hissing during acceleration, oily residue around the leak and a sudden loss of power.

What Happens When the System Detects a Fault?

When a boost pressure problem is detected, the engine control unit may activate several protective measures.

These can include:

• Disabling automatic boost pressure control
• Operating the actuator with a fixed duty cycle
• Disabling exhaust gas recirculation
• Limiting fuel injection
• Reducing engine torque
• Using a substitute boost pressure value
• Activating limp-home mode

The exact response depends on the fault type and how serious the deviation is.

A vehicle may remain driveable after a boost control fault, but continued high-load driving should be avoided until the cause has been identified.

Other Systems That Affect Boost Control

Boost pressure control depends on many other engine systems. A fault in one of these systems can cause the engine control unit to switch off boost regulation, even when the turbocharger itself is working correctly.

The system may be disabled if faults are detected in:

• Exhaust gas recirculation control
• Boost pressure sensor
• Crankshaft position sensor
• Accelerator pedal module
• Mass airflow sensor
• Terminal 15 or wake-up signal
• Fuel quantity control valve
• Engine control unit power supply
• Turbocharger actuator wiring

This is why replacing the turbocharger immediately is often a mistake. A proper diagnosis should identify whether the problem is mechanical, electrical, pneumatic or software-related.

Understanding MAP Sensor Pressure Ranges

MAP sensors are available in different pressure ranges. Common examples include 1-bar, 2-bar and 3-bar sensors.

The important point is that a MAP sensor measures absolute pressure, not only turbocharger boost pressure.

Atmospheric pressure at sea level is approximately 100 kPa, or about 14.5 PSI. Therefore, a reading of 200 kPa absolute pressure represents roughly 100 kPa of boost pressure under ideal conditions.

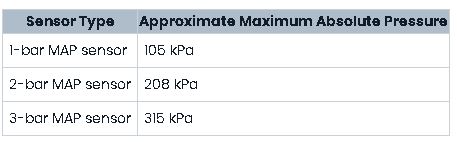

Typical MAP Sensor Ranges

The exact values depend on the sensor manufacturer and vehicle calibration.

Installing a sensor with the wrong pressure range can create serious problems. The engine software must be calibrated for the sensor being used. Otherwise, the control unit may calculate the wrong boost pressure and command unsafe or ineffective turbocharger positions.

Basic Boost Pressure Diagnostic Procedure

A logical test sequence can save time and prevent unnecessary parts replacement.

1. Read the Fault Memory

Start by scanning the engine control unit. Record the fault codes and the freeze-frame data, including engine speed, load and measured boost pressure.

2. Inspect the Charge-Air System

Check all hoses, clamps, pipes and intercooler connections. Look for:

• Cracks
• Loose clips
• Oil residue
• Damaged seals
• Disconnected pipes
• Deformed hoses

3. Compare Target and Actual Boost

Use a suitable diagnostic tool to compare requested boost pressure with actual boost pressure during a controlled road test.

4. Test the Turbocharger Actuator

Check whether the actuator moves through its full range. The movement should be smooth, quick and repeatable.

5. Check Sensor Readings

With the engine switched off, the MAP sensor reading should usually be close to the current atmospheric pressure. A large difference may indicate a sensor, wiring or calibration problem.

6. Pressure-Test the Charge-Air System

If a leak is suspected, pressure-test the system with approved equipment. Always follow the vehicle manufacturer’s pressure limits.

Boost pressure control plays a major role in engine performance, fuel economy and reliability. It brings together the variable-geometry turbocharger, electronic actuator, MAP sensor and charge-air temperature sensor in one carefully controlled system.

A loss of power does not automatically mean that the complete turbocharger has failed. The real cause may be a leaking charge-air hose, restricted turbocharger vanes, a faulty sensor, damaged wiring or an actuator problem.

The best diagnosis combines fault-code reading, live-data analysis, visual inspection and actuator testing. This approach is more reliable than replacing expensive parts based on symptoms alone.

Technical note: Pressure values, resistance readings and testing procedures can vary between engine versions, sensors and control units. Always use the manufacturer’s technical specifications for the exact vehicle.
