A BMW that suddenly switches off while driving is never a small problem—especially when the vehicle starts normally again after arriving at the workshop.
This 2019 BMW X5 G05 had covered just over 20,000 kilometres, yet it developed an intermittent stalling fault. The vehicle could suddenly shut down during operation, then restart as if nothing had happened. These faults can be difficult to diagnose because the car may appear normal during a basic inspection.
After the BMW X5 arrived at the workshop, it started again. However, a complete diagnostic scan revealed an important fault stored in the DME.
The Main Fault Code: 21A437
The primary fault code recorded was:
21A437_DME: Internal fault, hardware
Several other fault codes were also present, but they were related to lost communication with the DME. In this type of situation, communication faults are often secondary symptoms rather than the original problem.
The DME is responsible for managing many important engine functions, including:
- Fuel injection
- Ignition control
- Engine speed monitoring
- Throttle operation
- Sensor data processing
- Engine protection strategies
- Communication with other control modules
When the DME stops working correctly, other modules may report communication errors. This can make the diagnostic scan look more complicated than the actual failure.
The 21A437 fault code strongly indicated an internal DME hardware problem. However, because the vehicle had travelled only a little over 20,000 kilometres, the technicians decided not to assume the cause immediately. The power supply, grounds and external wiring needed to be checked carefully before opening the control unit.
The Stalling Pattern Provided the Key Clue
During testing, the technicians noticed a useful pattern.
The BMW X5 would sometimes run normally after starting, but then stall after approximately 30 minutes. The exact time was not always the same. On some tests, the engine ran longer; on others, it stopped sooner.
This type of time-dependent failure often points toward a heat-related electronic problem.
As the DME warms up, the circuit board, processor and solder joints expand slightly. If a solder joint is already weak or partially separated, the temperature change can cause the electrical connection to fail. Once the connection is lost, the engine may stop immediately.
After the vehicle was left to cool down, the DME could sometimes function again. That explains why the BMW started normally when it arrived at the workshop.
Intermittent electronic faults can be especially frustrating because the vehicle may pass a cold start test. A proper diagnosis often requires reproducing the problem under realistic operating conditions rather than relying only on a single scan.
External Wiring and Power Supply Were Checked First
Before removing the DME, the workshop checked the systems outside the control unit.
This included inspecting:
- Battery voltage
- DME power supply
- Ground connections
- Main connectors
- Wiring harnesses
- Communication lines
- Signs of moisture or corrosion
- Connector pin condition
These checks are essential. A damaged wire, loose ground or poor connector contact can create symptoms that look like an internal ECU failure.
Replacing or repairing a DME without checking the external circuit can lead to unnecessary expense. It may also result in the same fault returning after the replacement unit is installed.
In this case, the external power and wiring checks did not reveal a problem. The diagnostic evidence and warm-up stalling pattern continued to point toward an internal DME fault.
Removing the BMW X5 G05 DME
Once the external systems had been confirmed, the DME control unit was removed from the vehicle for further inspection.

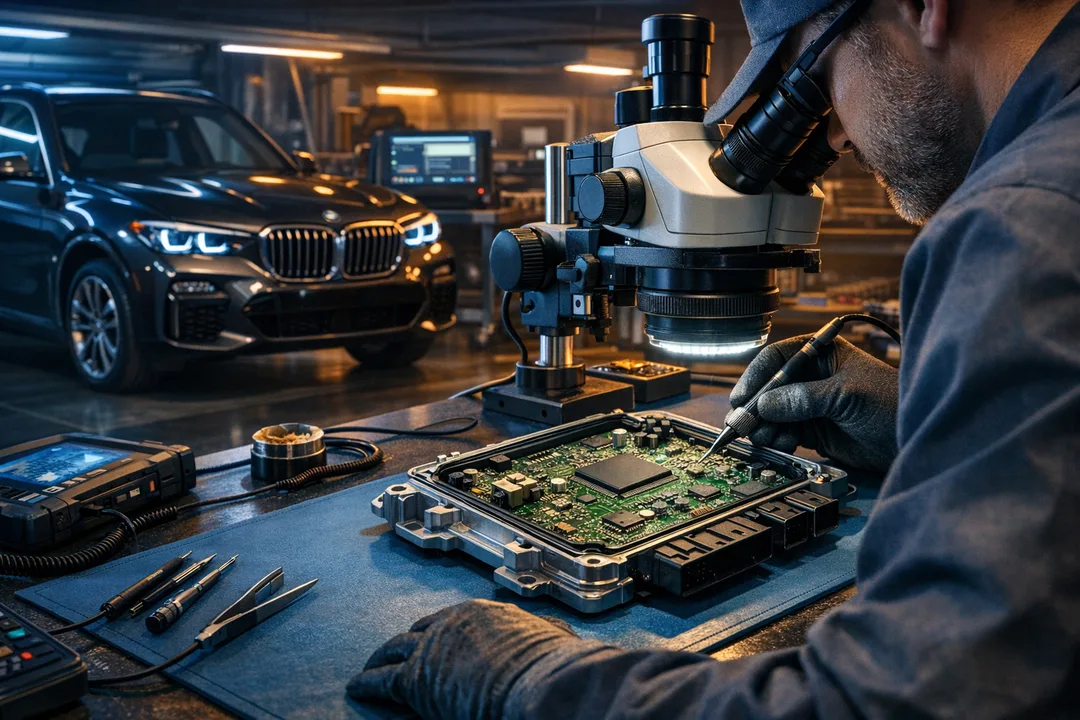

The control unit was opened carefully on an electronics repair bench. DME housings are designed to protect sensitive electronics from heat, moisture and vibration, so opening the casing requires patience and the correct tools.
Inside the unit, the technician inspected the circuit board under magnification. The focus was placed on the processor area, power circuits and other components that could cause a complete loss of engine control or communication.
A visual inspection alone is not always enough. Some solder faults are extremely small and may only appear when the board is heated, flexed or tested electrically.
The Final Cause: CPU Solder Joint Failure
The inspection confirmed that the failure was caused by a CPU solder joint problem.
The CPU, or central processing unit, is the main processor inside the DME. It reads information from the engine sensors, processes operating data and controls the engine management strategy.
If the CPU connection becomes unreliable, the DME may:
- Stop communicating with the vehicle
- Record an internal hardware fault
- Lose control of the engine
- Cause sudden stalling
- Restart after cooling down
- Produce multiple secondary communication codes
The CPU solder fault explained the complete set of symptoms:
- The BMW could start normally when cold.
- The DME worked for a period of time.
- Heat affected the weak solder connection.
- The processor connection became unstable.
- The DME stopped communicating correctly.
- The engine stalled and several related fault codes were stored.
- After cooling, the connection could work again temporarily.
This is why the vehicle’s mileage did not rule out an internal DME problem. Electronic failures are not always related to mileage. Heat cycles, vibration, manufacturing tolerances and long-term stress can affect solder joints even on a relatively low-mileage vehicle.
Why Replacing the DME Is Not Always the Best First Option
A complete DME replacement may appear to be the quickest solution, but it can involve additional programming and security-related procedures.
Depending on the vehicle and DME type, replacement may require:
- Software programming
- Vehicle-specific coding
- Immobiliser synchronisation
- Adaptation resets
- Transfer of configuration data
- Key and security system matching
A repaired original DME can often preserve the vehicle’s existing data and configuration. More importantly, a proper repair addresses the failed component instead of replacing the entire unit unnecessarily.
That said, DME repair should only be performed by a technician with the correct equipment and experience. Modern BMW control units contain sensitive multilayer circuit boards and tightly packed components. Poor soldering techniques can create further damage.
Common Symptoms of a Heat-Related BMW DME Fault
A BMW X5 with an internal DME problem may show one or more of the following symptoms:
- Engine stalls after warming up
- Vehicle restarts after cooling down
- Intermittent no-start condition
- Engine management warning light
- Several communication faults at once
- DME internal hardware fault
- Loss of communication with multiple modules
- Random sensor-related faults
- Engine runs normally during some tests and fails during others
The important point is that not every stored fault code identifies the original failure. When many modules report communication loss at the same time, the DME itself should be considered as a possible common source.
A Practical Diagnostic Approach
For an intermittent BMW DME fault, a careful diagnostic process should include the following steps:
1. Scan all vehicle modules
Do not rely only on a basic engine scan. Communication errors stored in other modules may help identify the control unit that has stopped responding.
2. Identify the primary fault
Separate the main DME hardware code from secondary communication faults. In this case, 21A437 was the key code.
3. Reproduce the fault
Test the vehicle until it reaches normal operating temperature. A cold inspection may not reveal a heat-related failure.
4. Check battery voltage and grounds
Low voltage and poor grounding can cause confusing electronic symptoms, so these checks should be completed early.
5. Inspect connectors and wiring
Look for damaged pins, corrosion, loose terminals, moisture and harness damage.
6. Test communication lines
If the DME loses communication, verify whether the fault is caused by the network wiring or by the control unit itself.
7. Inspect the DME internally
Only after external causes have been ruled out should the unit be opened for board-level diagnosis.
8. Test the repaired unit
After repair, the DME should be tested under heat and operating conditions similar to those that originally caused the failure.
The Importance of Proper ECU Repair
An ECU or DME is not simply an electronic box that can be repaired by replacing random components. The technician needs to understand the relationship between the fault code, the vehicle symptoms and the physical circuit board.
In this BMW X5 G05 case, the warm-up timing was an important clue. The vehicle did not fail continuously. It failed after a period of operation, which strongly suggested a temperature-sensitive connection.
The final CPU solder fault confirmed that diagnosis.
A reliable ECU repair should include:
- Accurate fault confirmation
- Careful board inspection
- Correct soldering and rework methods
- Protection against electrostatic discharge
- Testing before the unit is returned
- Verification that the original fault no longer occurs
