If your BMW X5 F15 suddenly starts showing drivetrain malfunction warnings, rough starting, transmission errors, or random stalling, there is a very good chance the problem is tied to the crankshaft sensor system.

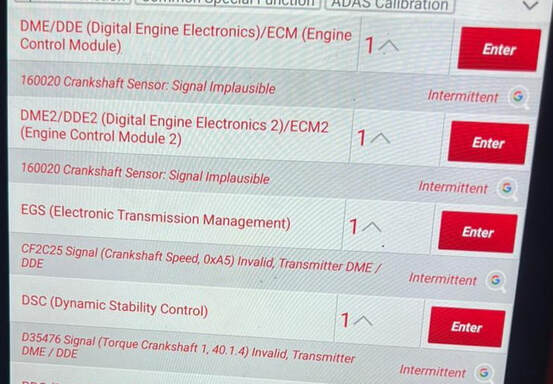

One of the most common fault combinations seen on the BMW X5 F15 with the DME MEDV17.2.H engine management system includes:

• 160020 Crankshaft Sensor: Signal Implausible
• CF2C25 Signal (Crankshaft Speed, 0xA5) Invalid
• D35476 Torque Crankshaft Signal Invalid

These codes can look dramatic, especially when they pop up across different control modules at the same time. But in many cases, the root cause is not as complicated as it first appears.

The good news is that this problem is often fixable with the right diagnosis, not guesswork.

What the BMW X5 F15 Crankshaft Fault Codes Mean

160020 – Crankshaft Sensor: Signal Implausible

This is usually the main fault.

It means the DME is receiving an incorrect, unstable, or missing signal from the crankshaft position sensor. That sensor is one of the most important inputs the engine computer uses.

The DME depends on this signal to calculate:

• Engine RPM
• Injection timing
• Ignition timing
• Crankshaft and camshaft synchronization

When the signal becomes unstable, the engine computer can no longer manage timing properly.

CF2C25 – Crankshaft Speed Signal Invalid

This fault often appears in the transmission control module, also known as the EGS.

The gearbox needs accurate engine speed data from the DME. When the crankshaft signal is corrupted, the transmission module loses confidence in the RPM information.

That can lead to:

• Hard shifting
• Limp mode
• Delayed acceleration
• Transmission warning messages

D35476 – Torque Crankshaft Signal Invalid

This code usually appears in the DSC system.

The DSC module uses engine torque data for traction control and stability calculations. If crankshaft information becomes unreliable, the DSC may temporarily disable certain functions.

That is why BMW owners often see several warnings at once, including:

• Drivetrain malfunction
• Chassis stabilization warning
• Transmission malfunction
• Check engine light

The important thing to remember is this:

The crankshaft signal fault is usually the primary issue. The other codes are often secondary reactions.

Common Symptoms of BMW X5 F15 Crankshaft Sensor Problems

A failing crankshaft sensor or related wiring issue can show up in several ways.

Hard Starting or No Start

The engine may crank longer than normal or fail to start because the DME cannot accurately determine crankshaft position.

Random Stalling

Some vehicles stall at idle or while slowing down. This may happen only once in a while at first, then become more frequent.

Rough Idle

An unstable crankshaft signal can make idle speed fluctuate and cause vibration.

Drivetrain Malfunction Warning

This is often one of the first alerts the driver sees on the dashboard.

Transmission Limp Mode

Because the EGS relies on engine speed information, gearbox operation may become harsh or limited.

Sudden Loss of Power

The engine may enter protection mode to avoid timing-related damage.

Main Causes of BMW DME MEDV17.2.H Crankshaft Sensor Faults

A lot of people immediately replace the sensor itself. Sometimes that solves it. Sometimes it does not.

A proper BMW diagnosis looks at the whole signal chain.

1. Faulty Crankshaft Position Sensor

This is the most common cause.

Heat, age, and oil contamination can damage the sensor internally. On BMW engines, using a high-quality part matters a lot.

Best practice:

• Use a genuine BMW sensor
• Or choose OEM suppliers like Bosch or Hella
• Avoid cheap no-name sensors

Low-quality sensors can create new intermittent faults, which only makes the problem more annoying.

2. Damaged Wiring Harness

On higher-mileage BMW X5 F15 models, wiring damage is very common.

Typical problems include:

• Oil inside the connector
• Broken insulation
• Heat-damaged wiring
• Corrosion near pins
• Loose or bent terminals

Even a tiny break in the signal can trigger several fault codes across multiple modules.

3. Weak Battery or Voltage Issues

BMW modules are sensitive to voltage drops.

Low voltage can create false communication faults between the:

• DME
• EGS
• DSC

Before replacing expensive parts, always test:

• Battery condition
• Charging system
• Ground connections

This step saves a lot of money.

4. Timing Chain Problems

Sometimes the crankshaft signal fault is not electrical at all.

If the timing chain has stretched, crankshaft and camshaft synchronization can become unstable. That can confuse the DME and trigger faults that look electrical on the surface.

Warning signs may include:

• Camshaft correlation faults
• Timing adaptation limits
• Cold start rattling

This is a more serious issue and should not be ignored.

5. DME Internal Failure

This is less common, but it does happen.

Water intrusion, heat damage, or internal circuit failure inside the MEDV17.2.H DME can interfere with sensor signal processing.

Before blaming the DME, verify:

• Power supply
• Sensor waveform
• CAN communication
• Wiring integrity

How BMW Specialists Diagnose These Faults

Good diagnostics go far beyond reading fault codes.

Step 1: Scan All Modules

A full vehicle scan is essential.

You want to check:

• DME
• EGS
• DSC
• CAS/FEM

Sometimes the real clue is in the module that did not even set the main fault.

Step 2: Monitor Live RPM Signal

A technician will check:

• Cranking RPM
• Signal stability
• Dropouts
• Synchronization values

If the signal cuts in and out, that often points directly to the sensor or wiring.

Step 3: Inspect the Wiring

This includes:

• Continuity testing
• Voltage drop testing
• Connector inspection
• Oscilloscope testing

A cracked wire or loose terminal can be enough to cause the entire issue.

Step 4: Check Timing Correlation

If the electrical tests pass, the engine timing should be checked next.

Step 5: Verify Battery Voltage

A weak battery can create confusing fault patterns that disappear once voltage is corrected.

Best Fix for BMW X5 F15 160020 Fault

In most cases, the best repair path looks like this:

Start With:

• Battery test
• Wiring inspection
• Genuine crankshaft sensor replacement

Then Recheck:

• Fault memory
• Live RPM values
• Cold start behavior
• Transmission operation

If Faults Return:

• Inspect timing chain condition
• Test DME integrity
• Recheck grounds and power supply

This is the smartest way to avoid wasted money and repeated repairs.

Can You Drive With These Fault Codes?

Technically, yes.

Practically, it is risky.

Intermittent crankshaft signal faults can get worse without warning and may leave the car unable to start.

Ignoring the problem can also lead to:

• Poor fuel economy
• Transmission stress
• Unexpected engine shutdown
• Catalytic converter damage

If the vehicle is already going into limp mode, the repair should not be delayed.

BMW X5 F15 Crankshaft Sensor Replacement Tips

A few simple workshop habits can save a lot of hassle.

Use OEM Parts Only

BMW engine management systems are very picky about signal quality. Cheap sensors often create repeat faults.

Clear Adaptations After Repair

After replacing the sensor:

• Clear DTCs
• Reset adaptations if needed
• Perform a proper test drive
• Recheck live data

Check for Oil Leaks

Oil contamination around the sensor connector is common on aging BMW engines.

If the connector is soaked or dirty, the repair should include cleaning and inspection, not just part replacement.
