Modern BMW vehicles rely on several sensors to keep the car stable, safe, and predictable on the road. One of the most important is the Lenkwinkelsensor, also known as the steering angle sensor.
This sensor tells the vehicle how far the steering wheel has been turned and in which direction. The information is used by systems such as Dynamic Stability Control, ABS, traction control, active steering, parking assistance, and driver-assistance features.
Although the sensor is small, its signal has a major influence on how the vehicle behaves. When the car detects that the steering angle does not match the vehicle’s actual movement, it can intervene by reducing engine power or applying the brakes to individual wheels.

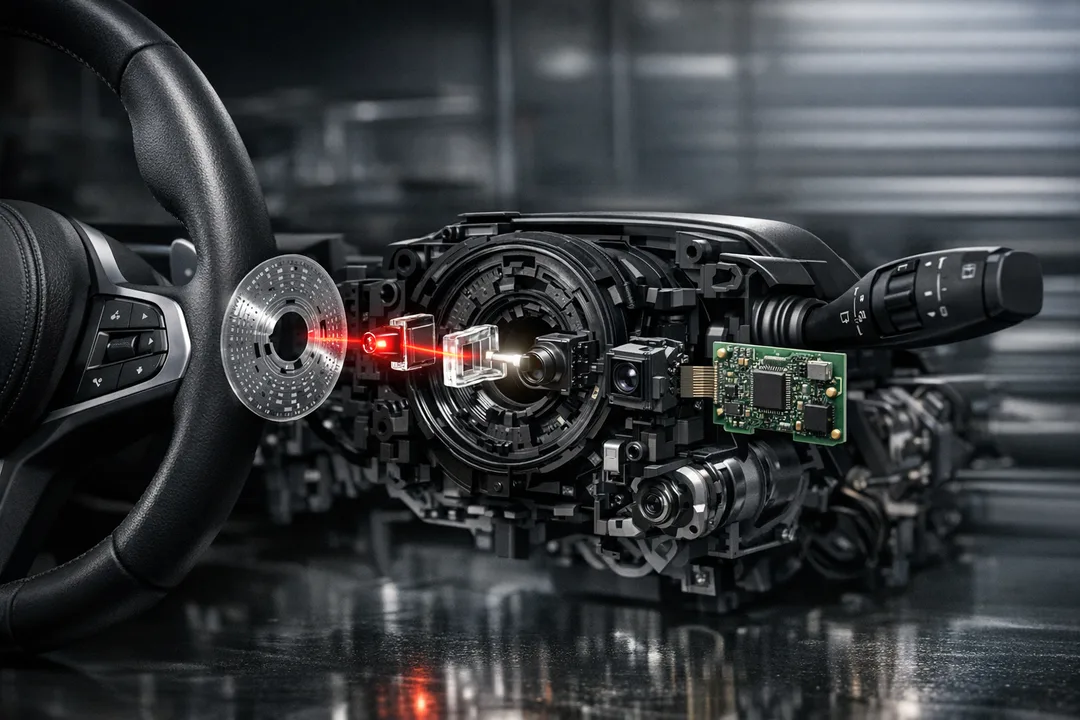

BMW uses an optical steering angle sensor in many applications. Unlike older contact-based systems, the optical design measures steering movement without relying on traditional sliding electrical contacts. This allows accurate and fast angle measurement while reducing mechanical wear.
Where Is the BMW Steering Angle Sensor Located?
The steering angle sensor is installed inside the Steering Column Switch Cluster, commonly referred to as the SZL.
The SZL is positioned behind the steering wheel and forms part of the steering column assembly. Depending on the BMW model, this area can also contain or connect with components such as:
- Steering-wheel controls
- The clock spring or coil spring cassette
- Turn-signal controls
- Wiper controls
- Steering-column switches
- Multifunction buttons
- Paddle-shift connections
- The steering angle sensor electronics
The sensor is not normally visible from outside the vehicle. Access usually requires the removal of the steering wheel and steering-column covers. Because the steering wheel and airbag are involved, this work should be carried out carefully and with the correct safety procedures.
A mistake during removal or installation can damage the clock spring, misalign the steering system, or create an airbag fault.
Optical Steering Angle Sensor in BMW 1 Series and 3 Series
BMW introduced optical steering angle sensor technology across several model ranges. From around September 2005, certain BMW 1 Series and 3 Series vehicles also used an optical steering angle sensor design.
The exact system depends on the vehicle’s production date, equipment level, steering system, and control-module configuration. For that reason, parts should always be checked by the vehicle identification number before replacement.
Two cars that look similar may use different SZL versions or different steering-angle sensor configurations. Fitting the wrong unit can lead to communication problems, incorrect coding, or calibration faults.
Main Components of the Lenkwinkelsensor
The optical steering angle sensor is built around two main components:
- Coded disc
- Optical sensor
The optical sensor is mounted on a circuit board together with the electronic evaluation system. These parts work together to measure the position and direction of the steering wheel.
1. The Coded Disc
The coded disc is connected to the steering wheel through the clock spring cassette, also called the coil spring cassette.
When the driver turns the steering wheel, the coded disc rotates inside the optical sensor. The disc contains carefully arranged line patterns. These patterns allow the sensor electronics to identify the steering wheel’s exact position.
The disc does not simply show whether the wheel is turning left or right. Its pattern allows the system to determine the amount of movement and the direction of rotation.
This is essential because the vehicle needs more than a basic left-or-right signal. The DSC system must know whether the steering wheel is:
- Near the straight-ahead position
- Slightly turned
- At a large steering angle
- Moving toward the left
- Moving toward the right
- Returning toward the centre
The coded disc provides the optical information required for this calculation.
2. The Optical Sensor
The optical sensor is mounted on the sensor circuit board and contains the parts that read the coded disc.
Its main elements include:
- A light-emitting diode
- A light guide
- A line camera
- Evaluation electronics
The LED produces the light used for measurement. The light guide directs that light toward the coded disc.
As the coded disc rotates, its line patterns allow different amounts of light to pass through. The amount and pattern of light reaching the line camera changes according to the steering-wheel position.
The line camera receives this optical information and converts it into electrical signals. The evaluation electronics then process the signal and calculate the steering angle.
How the Optical Measurement Works
The measurement process follows a simple but precise signal path:
LED → light guide → coded disc → line camera → analogue signal → evaluation electronics
Here is what happens inside the sensor:
- The LED produces light.
- The light guide directs the light onto the coded disc.
- The coded disc blocks or allows light through according to its line pattern.
- The line camera detects the changing light pattern.
- The camera converts the optical information into an electrical signal.
- The evaluation electronics calculate the steering angle.
- The final value is sent to the relevant vehicle control modules.
The measurement changes as the driver moves the steering wheel. Depending on the position of the coded disc, more or less light reaches the line camera.
This process happens continuously while the vehicle is operating. The steering angle value can then be compared with other data, including:
- Individual wheel speeds
- Yaw rate
- Lateral acceleration
- Vehicle speed
- Brake pressure
- Engine torque
- Drive-wheel slip
Together, these signals help the vehicle determine whether it is following the driver’s intended path.
Why the Steering Angle Sensor Matters
The BMW steering angle sensor is especially important for the DSC system.
For example, if the driver turns the steering wheel to the left but the vehicle begins to rotate excessively, the DSC system can recognise that the car is starting to oversteer. It may then apply braking force to one or more wheels and reduce engine torque.
If the vehicle does not respond enough to the steering input, the system may identify understeer and adjust the vehicle’s behaviour.
The steering angle sensor is also used for:
- ABS and traction-control functions
- Electronic parking brake logic
- Active steering systems
- Lane-related assistance systems
- Parking systems
- Chassis-control functions
- Stability-control calculations
- Steering system diagnostics
Without a reliable steering-angle signal, several systems may switch off as a safety precaution.
Common Symptoms of a Faulty Lenkwinkelsensor
A defective steering angle sensor does not always fail in the same way. Some faults are electrical, while others are caused by incorrect calibration, physical damage, poor installation, or communication problems.
Common symptoms may include:
- DSC or ABS warning light
- Steering-wheel warning symbol
- Traction-control warning
- Multiple warning messages on the dashboard
- Loss of stability-control functions
- Active steering malfunction message
- Steering that feels different after repairs
- Warning lights appearing after a battery replacement
- Faults after wheel alignment
- Faults after steering-wheel or SZL removal
- Steering angle values that remain fixed
- Diagnostic readings that show an implausible angle
In some cases, the vehicle may drive normally, but safety systems such as DSC and ABS may not be fully available.
A warning light does not automatically mean the sensor itself is defective. The root cause could be:
- Incorrect calibration
- Low battery voltage
- Damaged wiring
- A communication fault
- Incorrect SZL coding
- A damaged clock spring
- Steering-wheel installation off-centre
- Wheel-alignment problems
- A fault in another DSC-related sensor
A proper diagnostic scan is therefore important before replacing parts.
Why Calibration Is Important
The steering angle sensor needs to know where the straight-ahead position is. This position is used as a reference point for all future measurements.
If the sensor is not calibrated correctly, the control unit may believe that the steering wheel is turned even when the vehicle is travelling straight.
Calibration may be required after:
- Wheel alignment
- Steering-rack replacement
- Steering-column work
- Steering-wheel removal
- SZL replacement
- Clock spring replacement
- Suspension repairs
- Battery or voltage-related faults
- DSC control-module work
- Changes to the vehicle’s steering system
The steering wheel should normally be mechanically centred before calibration. The front wheels must also be pointing straight ahead.
If calibration is carried out while the steering wheel is off-centre, the sensor may store an incorrect reference value. The result can be a warning light, inaccurate live data, or a stability-control fault.
Diagnosing the Sensor Correctly
A professional diagnosis should begin with a complete vehicle scan using suitable BMW diagnostic equipment.
The technician should check:
- Stored fault codes
- Live steering-angle data
- The angle at the straight-ahead position
- Communication between the SZL and other modules
- Battery voltage and charging voltage
- Clock spring condition
- Steering-wheel alignment
- Wheel alignment
- DSC sensor values
- Required calibration or coding procedures
Live data is particularly useful. With the front wheels straight and the steering wheel correctly centred, the steering angle should be close to the expected zero reference.
When the wheel is turned slowly left and right, the reading should change smoothly. Sudden jumps, frozen values, incorrect direction, or implausible readings can indicate a fault.
However, one incorrect value is not enough to condemn the sensor immediately. The wiring, power supply, communication network, and related modules must also be checked.
Can a Lenkwinkelsensor Be Repaired?
In some cases, the problem can be corrected without replacing the entire unit.
Possible solutions may include:
- Steering angle calibration
- Correct coding of the SZL
- Repairing damaged wiring
- Replacing a damaged clock spring
- Correcting steering-wheel alignment
- Clearing a voltage-related fault
- Updating or configuring the control module
If the optical sensor, coded disc, or circuit board is physically damaged, replacement of the sensor or complete SZL may be necessary.
Used parts can sometimes be installed, but compatibility, coding, and calibration must be considered. A part from another BMW may look identical but use a different software version or internal configuration.
The safest approach is to confirm the correct part number and vehicle compatibility before installation.
Important Safety Notes
Work around the steering wheel involves the driver’s airbag. The battery-disconnection procedure and manufacturer safety instructions should be followed before removing the airbag or steering wheel.
The clock spring must also remain within its correct operating range. If it is installed while over-rotated, it can break when the steering wheel is turned.
A damaged clock spring may cause:
- Airbag warning lights
- Horn failure
- Steering-wheel button problems
- Communication faults
- Steering-angle sensor errors
After any steering-column repair, the vehicle should be checked for fault codes and the steering angle should be calibrated when required.
The BMW Lenkwinkelsensor is a compact but highly important part of the vehicle’s safety network. Its optical design uses a coded disc, LED, light guide, line camera, and evaluation electronics to measure steering-wheel movement accurately.
The sensor is located inside the Steering Column Switch Cluster, or SZL, behind the steering wheel. Its signal supports DSC, ABS, traction control, active steering, and other vehicle systems.
When warning lights appear, replacing the sensor immediately is not always the correct answer. A proper diagnosis should first check calibration, steering alignment, battery voltage, wiring, communication, and the condition of the clock spring.
Correct installation and calibration are essential. When the system is working properly, the steering angle sensor quietly performs its job in the background, helping the BMW remain stable, controlled, and safe in changing driving conditions.
