There is nothing quite like walking out to your BMW on a hot or cold morning, pressing the key three times, and knowing the cabin is already getting comfortable before you even open the door.
The interesting part is that on the right BMW, remote engine start is not necessarily a question of fitting a box under the dashboard or changing the engine software. BMW already designed the function into its newer vehicles.
The real job is getting the car's software configuration, vehicle order and related control units to agree that the feature is present.
That is where BMW option 1CR, E-Sys, an ENET cable and the correct FSC activation come in.
BMW itself documents remote engine start as a factory-style vehicle function. On supported cars, the key fob can activate it with three presses of the lock button, and BMW's documentation also explains that the feature is primarily there to pre-condition the cabin before driving. Depending on the vehicle and market, the exact menus and availability can differ.
This guide focuses on the BDC3 G-Series configuration described here, using E-Sys and targeted FDL coding.
One important point before getting started: BMW coding is not a place to guess. The exact electronic equipment fitted to the car matters more than simply looking at the badge or model year. A VIN-based compatibility check is always smarter than assuming every G-Series BMW will support the same setup.
What BMW Remote Engine Start 1CR Actually Does
The easiest way to think about option 1CR is this:
You are enabling a factory vehicle function that allows the car to start the engine remotely for climate preconditioning.
That means the goal is not to create an aftermarket remote starter from scratch. The coding is there to tell the BMW's electronic systems that remote start is a valid function and to make sure the different modules involved communicate correctly.
BMW's own information shows the same basic idea. Remote Engine Start can be activated through the vehicle's climate settings and can also be triggered by pressing the lock button three times on the key fob. BMW notes that the system is intended to pre-condition the vehicle, with the engine running for a limited period.
That distinction matters.
You are not tuning the DME for more power. You are not changing the transmission software. You are not adding an aftermarket immobilizer bypass. You are configuring the vehicle's existing electronics for a supported function.
Before You Touch E-Sys, Check These Things
This is the boring part, but it can save you hours.
For the configuration covered in this guide, you should be working with a compatible petrol automatic G-Series BMW using BDC3 and the appropriate iDrive generation, together with the required factory activation for the vehicle.
The exact availability of BMW Remote Engine Start is market- and equipment-dependent. BMW says supported vehicles with Operating System 7 or newer can have the feature, while availability also depends on the vehicle's equipment and connected services.
Before coding, make sure you have:
- E-Sys installed on a Windows laptop.
- A matching and usable PSdZData package.
- A reliable ENET cable from the laptop to the BMW's OBD port.
- A proper battery charger or maintainer connected to the car.
- The correct 1CR Patch FSC for that VIN.
- A saved copy of the original FA/vehicle order.
- Backups of the original CAFD data before making changes.
And one more thing: don't start the job with a half-charged laptop, a weak car battery and the idea that you will "probably be fine."
That is exactly how simple coding jobs turn into recovery jobs.
Why the Battery Charger Matters So Much
During coding, the BMW can have multiple control units awake for a significant amount of time.
A voltage drop is one of the easiest ways to turn a routine coding session into a stressful afternoon.
BMW's own Remote Engine Start documentation lists a sufficiently charged battery as one of the system's operating requirements, which is a good reminder that battery condition matters even after the coding is finished.
For the coding process itself, keep the charger connected from beginning to end.
Do not remove it because the first module coded successfully.
Do not start the job and plan to connect it later.
Put the car on stable power first, then begin.
Part 1: Add Option 1CR to the Vehicle Order
The first stage is changing the FA, or vehicle order, so the car knows that remote engine start is part of its configuration.
This is important because simply changing one or two FDL parameters does not give the vehicle a complete understanding of the new function.
Step 1: Connect the BMW
Open E-Sys and select the correct target for the vehicle.
Connect through the ENET cable and make sure communication with the car is stable before doing anything else.
Do not rush past this check.
Step 2: Read the Original Vehicle Order
Enter the FA/vehicle order section in Expert Mode and read the original configuration from the vehicle.
Before making changes, save the original FA.
Keep a copy somewhere safe.
It is your reference point if you need to return the vehicle to its original coding state.
Step 3: Add 1CR
Add the remote engine start option to the FA by appending:
1CR
The important part here is not simply typing the code. Make sure the resulting vehicle order remains correctly formatted and that you are editing the expected FA.
Save the modified FA.
Step 4: Activate the FA
Load the edited FA in the VCM section and activate it so the revised vehicle configuration is written to the car.
At this point, the BMW knows about the added option.
That does not necessarily mean every module is ready to use remote start.
That is why the second stage matters.
Step 5: Perform the Required Coding
Move into the Coding section and code the relevant modules using the activated configuration.
Some vehicles may show the feature after FA activation and coding alone.
On the BDC3 setup covered here, however, the targeted FDL changes are important for getting the complete remote-start behavior, including the key-fob start and climate-related functions.
Part 2: FDL Coding the Individual Modules
Now comes the part BMW coders will recognize immediately.
You are going module by module and changing specific parameters in the FDL editor.
The basic routine is the same each time:
- Select the ECU.
- Read the CAFD.
- Open the FDL editor.
- Find the required parameter.
- Change it to the specified value.
- Save the CAFD.
- Run Code FDL on that module.
- Confirm E-Sys reports a successful coding result.
Do not change ten modules at once and hope for the best.
One module at a time is slower, but troubleshooting is much easier.
BDC_BODY3 (0x40): The Main Module
This is the most important part of the setup.
The main remote-start permissions are handled here.
Set:
TCM_REMOTE_START → aktiv
RCM_ENABLE_REMOTE_ENGINESTART → aktiv
ALH_AKTIV_IN_PWF_ZUSTAND → ab_Standfunktionen
ASP_STANDHEIZUNG → aktiv
VOKO_SHZ_ALHZ → VOKO_aktive_alle_Sitze
LRE_LHZ_VOKO → aktiv
The last two depend on the equipment in the car.
If the BMW does not have heated seats, skip the seat-heating related parameter.
If there is no heated steering wheel, skip the heated steering wheel parameter.
There is no benefit in forcing a parameter for equipment the car does not have.
DKOMBI4 (0x60): Instrument Cluster
The instrument cluster also needs to know that remote start is allowed.
Set:
HMI_REMOTE_START_ENABLE → aktiv
This is one of those settings that can be easy to miss because the remote-start function is not something most people associate with the cluster.
But the cluster is part of the communication chain, so it needs the correct coding.
DSC_BRS_IB (0x29): Stability and Parking Brake
Set:
C_EPBI_Remote_Start → aktiv
If the parameter is not present on your vehicle, do not start inventing alternatives.
Skip it and move on.
Different equipment levels and software configurations can mean that not every parameter appears in every car.
FZD2 (0x56): Roof and Alarm Module
For vehicles equipped with the relevant alarm system, set:
DWA Motor Remote → aktiv
No alarm system?
Skip it.
This is one of the reasons copying a coding list from another BMW without checking the actual equipment can create more confusion than it solves.
HU_MGU (0x63): iDrive Head Unit
This is an important one because the head unit is responsible for the driver-facing climate and remote-start controls.
Set:
HVAC_REMOTE_ENGINE_START → aktiv
If the remote-start function has been coded into the lower-level modules but the iDrive menu is still missing, this is one of the first areas worth checking.
BMW's official documentation shows that remote engine start is surfaced through the vehicle's climate/preconditioning menus, although the exact menu path changes by BMW Operating System.
IHKA4 (0x78): Climate Control
The climate control module is another big piece of the puzzle.
Set:
MIN_TANKINHALT_STANDHEIZEN → 2L
STANDKLIMA_MOTORLAUF → AKTIV_Alle_Aktivierungswege
HSH_ANSTEUERUNG_BEI_VOKO → AKTIV
This is where the remote engine start logic meets the practical reason most owners want it in the first place: getting the cabin ready before the drive.
BMW describes preconditioning as a system that can heat, cool or ventilate the cabin depending on the conditions and vehicle setup.
SM2 Driver and Passenger Seat Modules
For cars equipped with seat heating, set this parameter on both sides:
SA_SHZ_VOKO_AKTIVIERUNG → aktiv
Driver side:
SM2 (0x6D)
Passenger side:
SM2 (0x6E)
No heated seats?
Skip both.
That is normal.

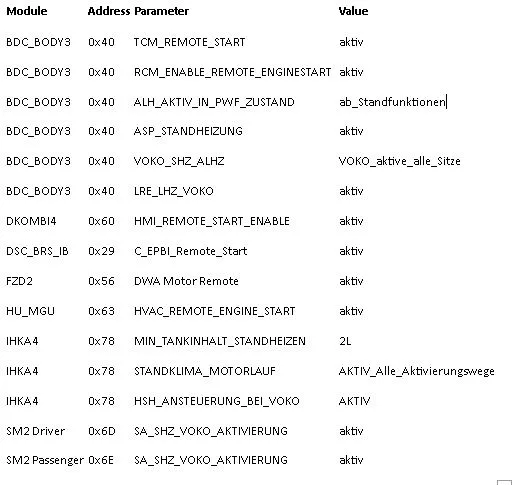

Full BMW Remote Start Coding Table
The table above should be treated as a coding reference for the configuration described in this guide, not a universal list for every BMW.
Your vehicle's ECU list and available parameters should always win over a copied table.
What Should Happen After Coding?
Once the modules have been coded successfully, give the vehicle a moment to settle.
Then check the iDrive climate or preconditioning section.
On BMW systems that support the function, you should see a Remote Engine Start option in the appropriate climate/preconditioning menu. BMW's current documentation shows different menu paths depending on whether the car is running Operating System 7, 8, 8.5 or 9.
If the menu does not appear immediately, restart the car and cycle the ignition.
A head-unit reboot can make the difference between staring at a missing menu and suddenly seeing the option where it should be.
Test the Three-Press Key-Fob Start
With the car properly coded and the feature activated, test the factory key.
BMW states that supported vehicles can activate Remote Engine Start by pressing the lock button on the key fob three times consecutively.
Stay close enough to the vehicle for the key to communicate properly.
Watch for the normal confirmation behavior and give the car a moment rather than pressing the button repeatedly.
The point of the first test is not to see how many times you can make the engine start.
The point is to confirm that the complete chain works:
Key → vehicle authorization → body module → cluster → climate control → engine start
Common BMW Remote Start Problems
The Remote Engine Start menu is missing
This is probably the first problem people notice.
Check the HU_MGU and IHKA4 coding first, then make sure the FA was activated correctly.
A complete vehicle restart can also be necessary after coding.
BMW itself requires the Remote Engine Start function to be enabled in the climate/preconditioning settings before automatic engine start can be used.
One of the parameters is missing
Do not assume the coding is wrong.
The parameter may simply belong to equipment your car does not have.
No heated seats? The seat-heating parameter can be absent.
No heated steering wheel? Skip that one.
No applicable alarm module? Move on.
Coding fails halfway through
Stop and look at the E-Sys error before doing anything else.
Do not keep clicking Code FDL over and over without reading the message.
Check the target ECU, CAFD, connection quality and power supply.
A clean backup is worth far more than five minutes saved by rushing.
The key fob does nothing
Go back through the basics:
- Is 1CR actually in the FA?
- Was the FA activated?
- Were the relevant modules coded?
- Is the FSC correct for the VIN?
- Is the car actually compatible?
- Is Remote Engine Start enabled in iDrive?
The key-fob function only works when the full system agrees that the feature is available.
Remote start works but climate behavior is wrong
Then look closely at IHKA4 and the related comfort functions.
The remote engine start feature is not just an engine command. Its main purpose is climate preconditioning, so the climate module needs to be correctly configured too.
A Few Safety Checks That Are Easy to Forget
BMW lists several conditions around remote engine start and preconditioning, including a sufficiently charged battery, enough fuel, and a closed hood. The system also has limits on repeated remote activations.
That is worth remembering in daily use.
Remote start is not something to use inside an enclosed garage or other poorly ventilated area. Also check the rules that apply where the vehicle is operated, because regulations around unattended engine operation vary by location.
And never treat coding as a substitute for normal vehicle safety.
Does This Need an ECU Unlock?
For the configuration described here, the job is centered on vehicle-order, FSC and control-unit coding rather than an engine performance tune.
That is an important distinction.
You are not flashing a custom engine map to make the BMW produce more horsepower.
You are configuring the vehicle to support a factory-style feature.
The exact FSC implementation and compatibility still depend on the specific vehicle, software and market, so confirm those details against the VIN before ordering or installing anything.
Is an ENET Cable Really Necessary?
For direct E-Sys coding on these BMWs, the ENET connection is the normal route between the laptop and the vehicle.
It gives E-Sys a stable Ethernet-based connection to the car's diagnostic network.
A cheap cable that randomly disconnects is not a bargain when you are in the middle of coding a body controller.
Use a decent ENET cable and avoid moving the laptop or cable around during programming.
The Biggest Mistake: Assuming Every G-Series BMW Is the Same
This is worth saying twice.
It isn't.
Two BMWs can look almost identical from the outside and still have different electronic configurations.
Different BDC versions, climate modules, head units, equipment packages, software levels and market specifications can change what you see in E-Sys.
That is why a proper VIN check should come before a shopping list of coding values.
A coding list is a reference.
The car in front of you is the final authority.
Checklist
Before you call the job finished, check all of the following:
- 1CR added correctly to the vehicle order.
- Original FA backed up.
- Original CAFD data backed up.
- Battery charger connected during coding.
- BDC_BODY3 coded.
- DKOMBI4 coded.
- DSC_BRS_IB coded if applicable.
- FZD2 coded if applicable.
- HU_MGU coded.
- IHKA4 coded.
- SM2 modules coded where seat heating is fitted.
- Remote Engine Start visible in the appropriate iDrive climate menu.
- Vehicle restarted after coding.
- Three-press key-fob test completed.
- No new unexpected faults stored in the vehicle.
Once everything checks out, disconnect E-Sys cleanly and remove the ENET cable.
BMW Remote Engine Start is one of those features that looks complicated until you understand how the different pieces fit together.
The FA tells the BMW that option 1CR exists.
The FSC provides the required vehicle-specific authorization.
The body controller handles the main permissions.
The head unit and climate module make the feature visible and useful.
The other modules help the car coordinate the function with equipment such as the alarm, parking brake and heated seats.
When all of those pieces line up, the result is simple from the driver's point of view: the same BMW key, the same factory-style interface and a convenient three-press start.
The coding itself is not the hard part.
Doing it carefully is.
Back up first. Keep stable voltage on the car. Check every module against the vehicle you actually have. And never assume a parameter exists just because it appeared in somebody else's screenshot.
For BMW owners who want to go beyond one feature and understand the bigger picture of FA coding, FDL coding, CAFD handling, FSC activation and advanced E-Sys workflows, the next step is learning the process rather than memorizing a list of parameters.
BMW Advanced Programming Course
For hands-on BMW coding and programming training, visit:
https://www.autocodeworks.com/bmw-advanced-programming-course
