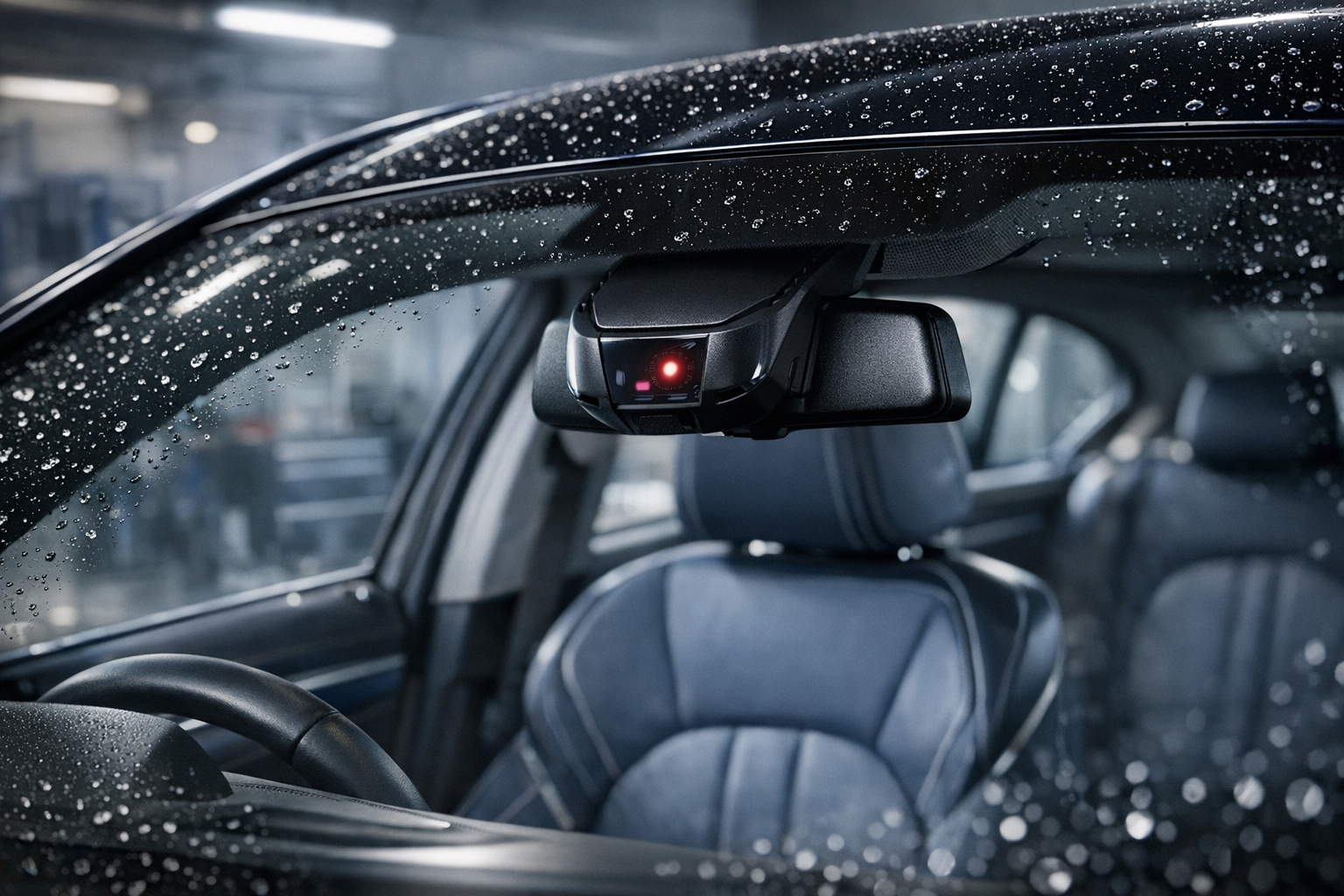

BMW’s rain/light sensor is a small component with an important job. Mounted behind the rear-view mirror, it helps control the automatic windshield wipers and headlights. The system detects moisture on the windshield and measures outside light conditions, allowing the vehicle to react without constant driver input.

When the system is working correctly, the wipers start automatically when rain reaches the glass. The headlights can also switch on when the vehicle enters darkness, a tunnel, or another low-light area.

However, problems may appear after a windshield replacement, sensor replacement, poor installation, or dirty glass. In many cases, the sensor needs to be initialized or coded before it can work correctly.

What Is the BMW Rain/Light Sensor?

The BMW rain/light sensor combines two systems in one housing:

• A rain sensor for detecting moisture on the windshield
• A driving light sensor for measuring ambient light

The sensor is attached to the inside of the windshield, usually behind the interior mirror. An optical body connects the sensor to the glass. This optical connection is essential because the sensor reads changes in light reflection through the windshield.

The rain sensor uses infrared light. When the glass is clean and dry, most of the infrared light is reflected back to the sensor. When rain, water, dirt, or streaks cover the sensor area, some of the infrared light passes through the glass instead of returning to the receiving diodes.

The sensor measures this change and sends information to the vehicle’s control modules through the K-CAN data bus. The wiper module then decides whether to perform a single wipe, intermittent wiping, or continuous wiping.

How the BMW Rain Sensor Works

The rain sensor is activated using the rain sensor button on the wiper switch. When it is switched on, a green indicator light usually illuminates on the switch.

As a confirmation, the wipers normally perform one wiping cycle. After that, the sensor continuously checks the windshield surface.

The system reacts according to the amount of water detected:

• Light moisture may trigger occasional wiping
• Moderate rain may activate intermittent wiping
• Heavy rain may switch the wipers to continuous operation
• Very heavy rain may increase wiping speed automatically

The sensitivity can usually be adjusted with the knurled wheel on the wiper stalk. Turning the wheel upward increases sensitivity. Each adjustment may cause one wiping cycle, confirming that the setting has changed.

When the vehicle is stationary, the system may reduce its sensitivity. This prevents the wipers from operating too aggressively while the car is stopped.

What Does the Driving Light Sensor Do?

The driving light sensor measures the brightness around the vehicle. It uses photodiodes to detect light from different directions, including light coming from the front and light coming from above.

When the light level changes, the sensor sends information through the K-CAN data bus. If automatic headlight control is active, the lighting module decides whether the headlights should turn on or off.

The sensor can react to conditions such as:

• Nighttime driving
• Dark roads
• Covered parking areas
• Tunnels
• Heavy cloud cover
• Rapid changes in outdoor brightness

The light sensor does not directly detect fog. Fog can make visibility poor, but the surrounding light may still be bright enough that the sensor does not switch the headlights on.

When Is Rain Sensor Initialization Required?

BMW rain sensor initialization is especially important after work has been carried out around the windshield or sensor.

Initialization may be required in these situations:

• After replacing the windshield
• After replacing the rain/light sensor
• When the sensor has been removed and reinstalled
• When automatic wipers behave incorrectly after glass replacement
• When the system produces sensor-related fault codes

The rain sensor must adapt to the specific windshield and optical connection. A new windshield may have slightly different optical characteristics from the original glass. Initialization allows the sensor to clear its previous adaptation values and create new reference values.

Without correct initialization, the system may become too sensitive, not sensitive enough, or operate at the wrong time.

Important Difference Between Initialization and Coding

Initialization and coding are not the same operation.

Rain Sensor Initialization

Initialization adapts the rain sensor to the windshield. It clears the stored adaptation values and allows the sensor to measure the new glass surface.

This process is mainly related to rain detection.

Rain/Light Sensor Coding

Coding is required when a replacement rain/light sensor is installed. The vehicle must recognize the new component and configure it according to the vehicle order.

Coding can also affect automatic headlight sensitivity and market-specific settings. For example, some regional versions may use different lighting sensitivity values.

A key point is that initializing the rain sensor will not repair every automatic headlight problem. If the issue is connected to the driving light sensor, coding or further diagnosis may be necessary.

BMW Rain Sensor Initialization Procedure

The exact diagnostic menu may vary between BMW models and software versions. In general, initialization is performed with the BMW diagnostic system using the service function called “Initialize Rain Sensor.”

Before starting, make sure the following conditions are met:

1. The windshield is completely dry.
2. The sensor area is clean.
3. There are no water marks or streaks.
4. The glass has no chips or cracks near the sensor.
5. The optical body is properly bonded to the windshield.
6. There are no air bubbles in the adhesive surface.
7. The wiper blades are in good condition.

A typical initialization sequence is:

1. Turn off the rain sensor.
2. Switch off terminal 15 and terminal R.
3. Switch terminal R and terminal 15 back on.
4. Wait approximately 10 seconds.
5. During this period, the sensor determines and stores new adjustment values.

The diagnostic equipment may display additional instructions. Always follow the vehicle-specific test plan because BMW systems can differ between generations.

Why the Windshield Must Be Clean

The rain sensor reads changes in reflected infrared light. Dirt or residue in the sensor area can interfere with that measurement.

Common sources of contamination include:

• Road salt
• Insects
• Wax residue
• Washer fluid residue
• Dust
• Oil film
• Water streaks

A dirty sensor area can cause false wiping, delayed wiping, or continuous wiping. If contamination remains for a long time, the system may lower its sensitivity to prevent constant activation.

Cleaning the outside of the windshield around the sensor is often a simple first step before replacing parts or carrying out complicated diagnosis.

The Importance of Good Wiper Blades

The wiper blades play a direct role in rain sensor performance. Their job is not only to clear the driver’s view but also to keep the sensor’s viewing area clean.

Worn blades may leave:

• Streaks
• Smears
• Water trails
• Unclean patches
• Fine film across the sensor area

These marks can change the infrared reflection pattern and confuse the sensor. If the automatic wipers work correctly during light rain but behave badly after each wipe, worn blades are worth checking first.

Good-quality blades and a clean windshield can solve problems that may otherwise appear to be electronic faults.

Common BMW Rain Sensor Problems

Wipers Activate on a Dry Windshield

Possible causes include:

• Dirt or residue over the sensor area
• Water streaks left by worn blades
• Air bubbles under the optical body
• Incorrect sensor initialization
• A damaged rain/light sensor
• A windshield installation issue

Start by cleaning the glass and checking the wiper blades. If the problem began immediately after windshield replacement, inspect the optical connection and perform initialization.

Wipers Do Not Start Automatically

If automatic wiping does not work, check whether the rain sensor is active and whether the green indicator on the switch is illuminated.

Other possible causes include:

• Sensor not initialized
• Sensor not coded after replacement
• Damaged optical body
• Incorrectly installed windshield
• Wiring or communication fault
• Sensor surface contamination

If the rain sensor fails completely, the wipers may operate at a fixed interval as a backup function.

Headlights Switch On Too Early or Too Late

Automatic headlight behavior can be influenced by:

• Sensor coding
• Ambient light conditions
• Tunnel entrances
• Cloud cover
• Infrared light levels
• Windshield or optical-body problems

A brightly lit tunnel entrance may delay headlight activation because the sensor still detects strong light. In other conditions, such as winter skies or dense cloud cover, the infrared light level can cause the headlights to switch on earlier.

Automatic Headlights Do Not Work After Sensor Replacement

Replacing the sensor alone may not be enough. The new rain/light sensor usually needs to be coded to the vehicle order.

If the headlights remain incorrect after replacement, the vehicle should be checked for:

• Coding errors
• Communication faults
• Incorrect sensor installation
• Damaged optical bonding
• Windshield compatibility issues

Terminal R and Safety Operation

Switching off terminal R deactivates the rain sensor for safety reasons. This prevents automatic wiping from continuing when the vehicle is switched off or when the electrical system changes state.

This behavior is normal and should not automatically be treated as a fault.

If the system does not respond as expected after terminal changes, a diagnostic scan can help identify whether the issue is mechanical, electrical, or related to stored adaptation values.

Problems Caused by Air Bubbles

The optical body must sit firmly against the windshield. Air bubbles, gaps, or poor adhesive contact can interrupt the infrared light path.

This may lead to:

• Unstable wiping
• False rain detection
• Reduced sensitivity
• Delayed response
• Sensor initialization failure

If bubbles are visible around the sensor attachment area, initialization alone may not solve the problem. The optical body or windshield installation may need to be corrected.

Practical Maintenance Tips

To keep the BMW rain/light sensor working properly:

• Clean the windshield regularly
• Remove insects and road salt from the sensor area
• Replace worn wiper blades
• Avoid applying heavy wax directly over the sensor area
• Check for chips or cracks near the sensor
• Inspect the optical body after windshield replacement
• Initialize the rain sensor after fitting new glass
• Code a replacement rain/light sensor
• Avoid touching the optical contact surface during installation

A few minutes of basic maintenance can prevent poor automatic wiper and lighting performance.
