BMW vehicles have become far more advanced than a simple engine, gearbox and wiring harness. Today’s BMW includes dozens of electronic control units, secure communication systems, software-based features and diagnostic functions that must work together correctly.

That is why modern BMW programming and diagnosis often involve different types of requests, responses, certificates or authorization data. Terms such as KDS, SFA, LCS, SecOC and ISTA diagnostic tokens can sound confusing, especially when they appear in the same programming or service workflow.

The important point is that these terms do not all describe the same thing.

Each one is connected to a different function, security layer or vehicle configuration process. A package created for feature activation may not work for protected diagnostic access. A response generated for one ECU may not be accepted by another. Likewise, an older request may become invalid after the diagnostic session changes.

This guide explains the differences in straightforward language and outlines safe handling practices for legitimate BMW repair, diagnosis, programming and authorized configuration work.

Important: BMW security and diagnostic functions should only be used for lawful repair, authorized programming, vehicle diagnosis and approved configuration work. Do not attempt to bypass vehicle security or reuse authorization data outside its intended vehicle, ECU or session.

Why BMW Uses Several Token Types

A modern BMW does not rely on one universal authorization file for every operation. Different functions are protected separately because they involve different levels of access and different types of vehicle data.

For example, activating a factory-supported feature is not the same as accessing a protected diagnostic routine. Secure communication between ECUs is also a separate matter from the authorization required to perform a service procedure through ISTA.

Using separate workflows provides several advantages:

• It limits access to the specific function being requested.
• It connects a response to the correct vehicle or ECU.
• It helps prevent accidental use of outdated information.
• It protects communication between control units.
• It allows BMW systems to manage different vehicle generations and software levels.
• It makes it easier to audit programming and diagnostic activity.

The practical rule is simple:

Identify the function that created the request, complete the request through the same function, and return the response to the matching workflow.

This rule prevents many common mistakes during BMW programming and diagnosis.

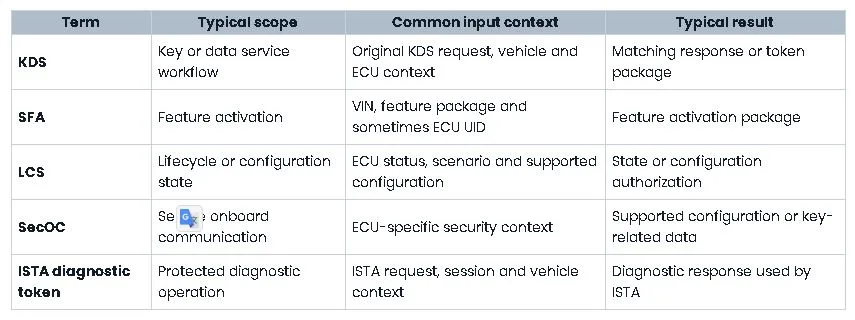

BMW Token Types at a Glance

The names describe broad categories rather than one universal file format. The exact request structure, response type and supported vehicle range can vary depending on:

• Vehicle platform
• ECU generation
• Software integration level
• Diagnostic application
• Request version
• Vehicle identification data
• Supported service endpoint
• ECU-specific information

In other words, the same label may appear in different environments while the actual workflow remains platform-dependent.

What Is a BMW KDS Token?

A KDS token is associated with a key or data service workflow. The request normally originates from the diagnostic or service function that needs the authorization.

Depending on the system, the request can be connected to information such as:

• Vehicle identification
• ECU identification
• A specific diagnostic operation
• Software or hardware context
• A session-generated value
• A request version
• The originating service function

The response is then expected to match the original request.

How the KDS Workflow Usually Works

The safest approach is to keep the KDS process inside the function that generated it:

1. Start the authorized diagnostic or service operation.
2. Allow the BMW application to create the original request.
3. Save the request without editing it.
4. Submit the request through the correct supported service.
5. Download or receive the matching response.
6. Import the response through the same KDS function.
7. Continue the original service procedure.

Changing request contents, replacing identifiers or rebuilding a request manually can break the relationship between the request and response.

A KDS result should not be treated as a general-purpose token. It is not automatically interchangeable with an SFA activation package, an ISTA diagnostic response or another vehicle security workflow.

What Is BMW SFA?

SFA is generally connected to feature activation and software-based vehicle functions. In practical terms, an SFA workflow may be involved when a vehicle feature, package or supported configuration needs to be authorized.

Depending on the vehicle generation and service application, an SFA request may use different input information, including:

• Full VIN
• Resolved VIN7
• Feature or package details
• ECU unique identification
• Diagnostic address
• Vehicle configuration context
• Software version
• A package rebuild request

This is where many misunderstandings begin. Two requests may both be described as “SFA,” but they may represent different operations.

For example, a VIN-based request for the newest supported package is not necessarily the same as an ECU-UID feature request. They may use different inputs, different validation rules and different response formats.

SFA Best Practice

Always use the SFA mode that matches the source application.

If the original software generated a request using a particular ECU identifier, do not replace it with a VIN-only request simply because it appears easier. The service must receive the information expected by the original workflow.

Feature activation should also be performed only when:

• The feature is supported by the vehicle.
• The vehicle configuration is correct.
• The programming equipment is suitable.
• The operation is legally authorized.
• The required software level is compatible.
• A stable power supply is connected.

A valid-looking response is not proof that a feature is compatible with every vehicle. Vehicle platform, ECU version and software level still matter.

Understanding BMW LCS

LCS is associated with lifecycle or configuration-state processes. It may appear when a vehicle or control unit needs authorization connected to a particular state, scenario or configuration condition.

Unlike a simple feature activation workflow, LCS-related operations may depend on the current condition of an ECU or the stage of a supported vehicle process.

Relevant information may include:

• ECU status
• Current vehicle configuration
• Lifecycle state
• Supported scenario
• Software and hardware combination
• Service operation being performed
• Values read directly from the vehicle

An LCS response prepared for one state may not be valid after the vehicle changes state, receives a software update or is connected to a different ECU context.

Why LCS Data Must Be Handled Carefully

Configuration-state data can be sensitive to timing and vehicle condition. If the request was created before a major programming step, but the response is used after the vehicle has changed, the authorization may no longer match the current context.

For that reason, technicians should avoid using old files simply because they are available. The newest request created by the active workflow is usually the relevant one.

What Is SecOC?

SecOC, or Secure Onboard Communication, refers to security mechanisms used to authenticate communication between electronic control units.

Modern vehicles exchange large amounts of data across internal networks. Some messages need protection so that control units can verify that the message is genuine and has not been altered.

SecOC-related processes may involve:

• ECU-specific security context
• Authenticated messages
• Key-related configuration data
• Network communication requirements
• Vehicle and ECU state
• Supported software conditions

SecOC is connected to vehicle security, but it should not be treated as identical to SFA or LCS.

A feature activation package may authorize a user-facing function. SecOC, by contrast, relates more closely to trust and authentication between control units. They can be part of the same broader vehicle security architecture while serving different purposes.

The Main Practical Lesson

Do not combine SecOC data with another token category unless the official workflow explicitly requires it.

A response created for one ECU, network configuration or software state may fail when used elsewhere. It may also create communication problems if the vehicle is not in the expected condition.

What Is an ISTA Diagnostic Token?

An ISTA diagnostic token is generally connected to a protected diagnostic operation initiated inside ISTA or a compatible authorized diagnostic workflow.

When ISTA requires special authorization, it may generate a request tied to information such as:

• The vehicle being diagnosed
• The current diagnostic session
• The requested service function
• ECU information
• The application state
• A time-sensitive or session-specific context

The returned data should normally be loaded back into the same workflow that created the request.

Why Session Context Matters

A common mistake is to disconnect the vehicle, reconnect later and then reuse an older response. If ISTA generates a new request after reconnecting, the newest request should be treated as the active one.

The older response may no longer correspond to:

• The current session
• The new request identifier
• The current vehicle state
• The selected diagnostic function
• The ECU information read during the new connection

Keeping requests and responses together with clear timestamps makes this much easier to track.

Are BMW Tokens Interchangeable?

In most cases, no.

A KDS response is not automatically an SFA response. An SFA package is not automatically suitable for LCS. SecOC-related data should not be assumed to work as a diagnostic token. An ISTA token should be used by the diagnostic workflow that generated the request.

The names may all appear in discussions about BMW programming, but their purpose and validation context are different.

Think of them like different keys for different doors:

• One key may open a service function.
• Another may authorize a feature.
• Another may confirm communication between ECUs.
• Another may be valid only during a particular diagnostic session.

Trying the wrong key does not make the door more secure. It simply results in a failed operation—or, worse, confusion about what went wrong.

Common BMW Token Workflow Mistakes

1. Editing the Request File

Request files may be stored as JSON, XML, binary or text-based data. Even a small change can invalidate the request if the contents are signed, encoded or tied to vehicle information.

Do not edit a request unless the official specification clearly allows it.

2. Using the Wrong Request Type

A VIN-only request, an ECU-UID request and an ISTA session request may look similar to a person unfamiliar with the workflow. They are not necessarily interchangeable.

Always identify the function that created the request.

3. Reusing a Token on Another Vehicle

Authorization data may be bound to a VIN, ECU, software level, diagnostic session or combination of these values. Reusing it on another vehicle is unsafe and may fail validation.

4. Using an Old Response

A previous response may belong to an earlier request, an earlier session or a different vehicle state. Keep current files organized and avoid selecting an old file simply because it is convenient.

5. Ignoring ECU Differences

Two BMW vehicles can share a model name but contain different ECU generations, software levels or optional equipment. Always confirm compatibility before beginning a protected service operation.

6. Applying Programming Without Stable Power

BMW programming can fail when battery voltage drops. A controlled workshop power supply is essential for programming and many diagnostic procedures.

7. Treating a Successful Download as a Successful Installation

Receiving a response from a service does not always mean the vehicle has accepted or completed the operation. The result still needs to be imported into the correct application and verified through the supported diagnostic process.

Safe BMW Token Handling Checklist

Before starting a protected BMW programming or diagnostic operation, record the following:

• Full VIN
• Vehicle model and platform
• ECU name and diagnostic address
• Software level where available
• Function that created the request
• Request filename
• Response filename
• Date and time
• Diagnostic session details
• Technician or workshop reference
• Service purpose

Follow these handling rules:

1. Generate the request from the correct BMW diagnostic function.
2. Save the original request unchanged.
3. Keep request and response files in the same job folder.
4. Use clear filenames and timestamps.
5. Confirm that the service supports the request version.
6. Do not reuse data between vehicles.
7. Do not mix KDS, SFA, LCS, SecOC or ISTA workflows.
8. Maintain stable vehicle power.
9. Import the response through the same application that created the request.
10. Verify the result with a proper diagnostic test.
11. Keep records for future troubleshooting.
12. Use the system only for authorized repair and configuration work.

Good file management may not sound exciting, but it prevents a surprising number of programming headaches.

Why Training Matters in BMW Programming

BMW programming is not only about connecting a cable and clicking a button. A technician needs to understand vehicle identification, software compatibility, ECU communication, power management, diagnostic session control and the difference between coding, programming and feature activation.

Training is especially valuable when working with:

• ECU programming
• DME and transmission control units
• Retrofit coding
• Vehicle configuration
• Software updates
• Secure diagnostic operations
• Factory-supported feature activation
• Post-programming verification

A structured BMW programming course can help technicians build a repeatable process instead of relying on guesswork. The goal is not simply to complete one job it is to understand why the workflow works, what can cause it to fail and how to diagnose the problem responsibly.
