Modern BMW and MINI vehicles rely on much more than a simple battery and alternator. Their electrical systems use advanced power management to monitor battery condition, control energy consumption, and help ensure the engine starts when needed.
At the heart of this system is the IBS, or Intelligent Battery Sensor. Fitted to the battery terminal, the IBS continuously measures important electrical values and sends this information to the engine control unit.
When the IBS works correctly, the vehicle can manage electrical power intelligently. When it detects a weak battery, excessive current draw, or an incorrect battery installation, it can trigger warning messages, store fault codes, or reduce the operation of selected electrical consumers.

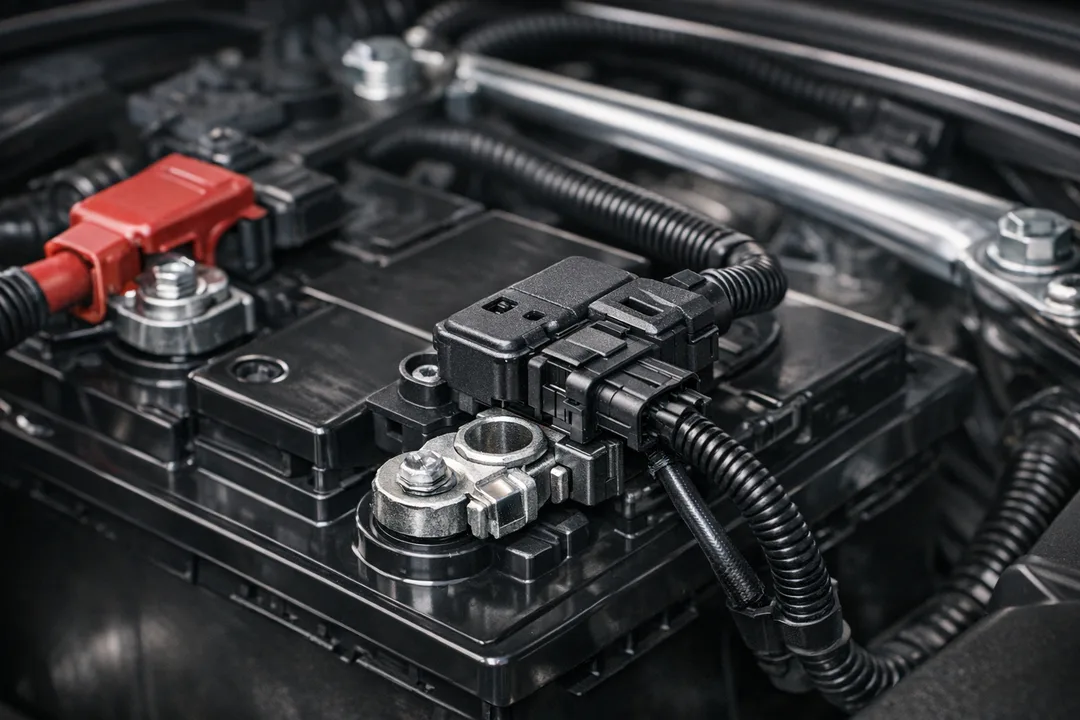

What Is the BMW Intelligent Battery Sensor?
The Intelligent Battery Sensor is a small mechatronic device with its own microprocessor. It is installed directly at the battery and forms part of the vehicle’s advanced power management system.
Inside the IBS are several important components:
- A shunt for measuring current flow
- A temperature sensor
- Electronic evaluation circuits
- A microprocessor
- A digital communication interface
The sensor monitors the battery while the vehicle is being driven and while it is parked. It then sends the collected data through the bit-serial data interface, commonly known as BSD, to the vehicle’s engine electronics.
Depending on the engine, this may be the Digital Motor Electronics (DME) or Digital Diesel Electronics (DDE).
In simple terms, the IBS helps the vehicle answer three important questions:
- How much charge is currently in the battery?
- Can the battery still start the engine reliably?
- Is the battery aging or damaged?
What Does the IBS Measure?
The BMW IBS continuously monitors several battery values:
- Terminal voltage
- Charging current
- Discharging current
- Battery temperature
These measurements are essential because battery voltage alone does not provide a complete picture of battery health.
For example, a battery may show a normal voltage after charging but still have poor starting performance. By measuring current flow and monitoring voltage drops during engine starts, the IBS can help the vehicle identify a battery that is becoming weak.
Temperature is also important. A battery’s performance changes significantly depending on outside conditions. Cold temperatures reduce available battery power and increase the energy needed to start the engine.
Why Must a New BMW Battery Be Registered?
After installing a new battery, the service function “Register battery replacement” should be performed using suitable diagnostic equipment.
Battery registration tells the vehicle’s power management system that a new battery has been installed. Without this step, the car may continue using the charging strategy and battery history stored for the old battery.
This can lead to several problems, including:
- Incorrect charging behavior
- Battery-management warning messages
- Reduced operation of electrical consumers
- Unnecessary fault codes
- Poor battery life
- Difficulty diagnosing future electrical problems
Battery registration is not the same as coding or programming. Registration confirms that the battery has been replaced. If the replacement battery has a different capacity or technology, such as switching from a conventional lead-acid battery to an AGM battery, additional coding may also be required.
The exact procedure depends on the BMW or MINI model, battery type, engine electronics, and diagnostic system.
How the IBS Calculates Battery Charge
The advanced power management system estimates the battery’s state of charge during driving and while the vehicle is parked.
During Driving
While the engine is running, the IBS monitors the balance between energy entering and leaving the battery. It also evaluates the electrical behavior during engine starting.
The system considers:
- Battery charging current
- Electrical consumption
- Alternator output
- Battery voltage
- Current used during starting
- Voltage drop during previous starts
This information helps the vehicle calculate how much usable energy remains in the battery.
While the Vehicle Is Parked
When the vehicle is switched off, the IBS continues to monitor the battery at regular intervals. It uses resting-voltage measurements to detect energy loss and unusual current consumption.
The vehicle stores some of this information and sends it to the DME or DDE after the next engine start.
The system can record the battery’s charge history over several days. It may also store how long the battery remained within different charge ranges, such as:
- 0–20 percent
- 20–40 percent
- 40–60 percent
- 60–80 percent
- 80–100 percent
This history helps the vehicle identify whether the battery is regularly operating at a low charge level.
Why Three Hours of Rest Can Matter
A battery’s true resting voltage cannot always be measured immediately after driving. The battery needs time to settle after charging and electrical use.
For this reason, the battery state of charge may not be reliable until the vehicle has been stationary for approximately three hours.
If the vehicle has not remained parked long enough, the system may calculate an incorrect or implausible battery charge level.
The reading can also be affected by:
- Excessive standby current
- An electronic module that fails to go to sleep
- An aftermarket alarm or tracking device
- Interior lights remaining on
- Frequent short journeys
- A weak or aging battery
This is why battery diagnosis should not be based on one voltage measurement alone.
What Is the Starting Ability Limit?
The power management system calculates a lower and upper starting ability limit.
The lower limit represents the minimum charge level required for the vehicle to start the engine. The upper limit provides a reserve so that the battery does not fall too close to the point where starting becomes impossible.
The system considers several factors:
- Current battery charge
- Average outside temperature
- Temperature during the previous drive
- Voltage drop during recent engine starts
- Battery aging trend
Cold weather is especially demanding. At lower temperatures, the engine requires more energy to crank, while the battery itself produces less available power.
As a general example, the starting reserve may be higher in cold conditions than in mild weather. A battery that starts the vehicle easily at 15°C may struggle at -15°C if its capacity has already been reduced by age or repeated discharge.
Battery Charge Is Not the Same as Battery Health
One of the most important points in BMW battery diagnosis is the difference between state of charge and battery condition.
The state of charge describes how full the battery is at a particular moment. Battery health describes how much capacity and starting power the battery still has.
An old battery can sometimes be fully charged but still fail under load. This happens because batteries naturally lose capacity as they age.
Inside the battery, repeated charging and discharging cause chemical changes and deposits. Over time, these changes reduce the battery’s ability to store and deliver energy.
Deep discharge is particularly harmful. The longer a battery remains deeply discharged, the greater the risk of permanent capacity loss.
A vehicle that is frequently driven on short journeys may also suffer because the battery does not receive enough time to recover the energy used during starting.
How BMW Detects an Aging Battery
The diagnostic system evaluates battery condition using several factors rather than relying on one measurement.
It may consider:
- Total energy throughput
- Cumulative discharge
- Voltage drop during recent starts
- Time spent below a low state of charge
- Stored battery-management faults
- Repeated deep-discharge events
If the system identifies a severely aged or defective battery, it may store a fault message in the engine control unit.
In many cases, this fault cannot be permanently cleared until the battery has been replaced and the replacement has been registered correctly.
Correctly Charging a BMW With IBS
Charging a BMW equipped with an IBS requires care.
When the battery is installed in the vehicle and dedicated jump-start terminals are available in the engine compartment, the charger should normally be connected through those terminals. This allows the vehicle electronics to recognize the charging process correctly.
Connecting a charger directly to the battery terminals may cause incorrect battery-management readings or unwanted warning messages on some vehicles.
Important charging points include:
- Use a charger approved for the vehicle and battery type.
- Follow the correct charging voltage and charger settings.
- Keep the battery within a suitable temperature range during charging.
- Avoid charging a frozen or visibly damaged battery.
- Do not rely on charging alone to repair an aged battery.
BMW and MINI models can use different battery technologies and charging strategies. AGM batteries, for example, require the correct charger mode.
For safety, always follow the vehicle manufacturer’s repair instructions for the specific model.
Maintaining a BMW or MINI That Is Stored
Vehicles that remain parked for long periods can slowly discharge the battery. Even when the engine is off, the car may continue using a small amount of electrical energy for security systems, memory functions, and control modules.
A stored vehicle should be maintained with a suitable battery charger or conditioner. Regular maintenance charging can help prevent deep discharge and reduce the chance of permanent battery damage.
This is especially important for:
- Classic BMW models with modern electrical upgrades
- Performance cars used only at weekends
- Vehicles stored during winter
- Cars with alarms or tracking systems
- Demonstration and showroom vehicles
Before reconnecting a charger, check that it is compatible with the battery technology and that the charging connection is correct for the vehicle.
What Happens After Replacing the IBS?
If the Intelligent Battery Sensor itself is replaced, the vehicle may also need time to establish a new battery baseline.
After replacing the IBS or the battery, the vehicle should remain undisturbed for approximately three hours when possible. This gives the system time to perform a reliable resting-voltage measurement.
A diagnostic scan may be required to:
- Confirm communication with the IBS
- Clear stored fault codes
- Register the battery replacement
- Check charging values
- Verify sleep-mode current
- Confirm that the power management system is operating correctly
If warning messages return after the repair, the problem may not be the IBS alone. Possible causes include a weak battery, charging-system fault, parasitic drain, damaged BSD wiring, or a control module that is not entering sleep mode.
Common IBS-Related Symptoms
A failing battery-management system may produce symptoms such as:
- Battery warning messages
- “Increased battery discharge” warnings
- Difficulty starting the vehicle
- Electrical consumers switching off
- Radio or comfort functions becoming unavailable
- Random low-voltage fault codes
- A battery that repeatedly goes flat
- Incorrect battery state-of-charge readings
These symptoms can have several causes. A professional diagnosis should test the battery, alternator, IBS communication, charging voltage, and resting current before replacing parts.
Replacing the sensor without checking the battery and charging system can lead to unnecessary expense.
