A technician's walkthrough of the SME control unit, safety box, cooling system, and cell balancing inside the 5 Series PHEV battery

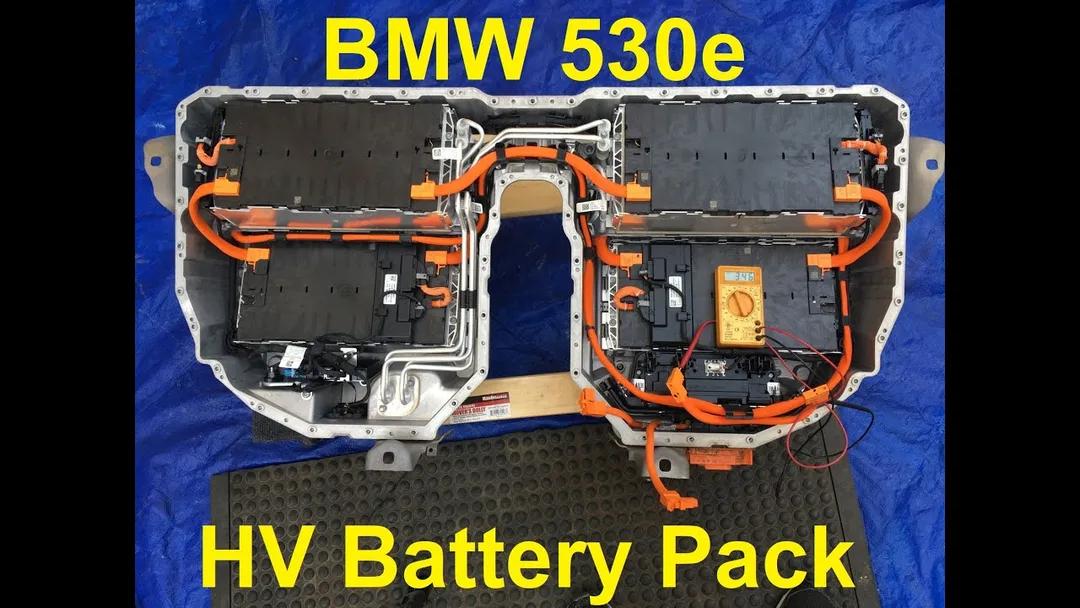

If you've ever opened up a BMW G38 530Le and looked at that sealed slab under the rear seat and thought "okay, but what is actually going on in there," you're not alone. Most guides either dumb it down to "it's just a big battery" or throw a wiring diagram at you with zero explanation. Neither one helps you when a customer's car is sitting in your bay with a check-control warning and you need to know whether you're looking at a real cell fault or something a lot less scary.

We've spent the last 15+ years elbow-deep in ECUs, EEPROMs, and high-voltage systems at our shop, and this is the write-up we wished existed when we first started working on plug-in hybrid BMWs. No fluff, no filler — just how the 530Le's high-voltage battery unit is built, how it decides when to turn itself on or off, and what actually happens when something goes wrong inside it.

What the High-Voltage Battery Unit Actually Does

The high-voltage battery in the G38 530Le has one job: take electrical energy, store it safely, and hand it back out to the electric drive system and the high-voltage onboard network whenever it's needed. That sounds simple, but the pack itself isn't just "a battery" — it's a stack of individual battery cell modules wired in series, each one made up of several individual lithium-ion cells. String enough of those modules together and you get the full high-voltage battery.

To make that whole assembly work safely and last as long as it should, BMW builds in several dedicated components:

• The SME control unit (Storage Management Electronics) — basically the brain of the pack
• A safety box with the contactors and current sensors
• Battery monitoring electronics on each module
• Twin battery cell modules wired together
• A coolant temperature sensor
• A heat exchanger with cooling channels

Let's go through each of these the way we'd walk a junior tech through it on the shop floor.

The SME: The Brain Behind the Battery

The Storage Management Electronics, or SME, is the control unit that never really stops watching the pack. Even when the car is parked and off, it's periodically checking in on the state of every single cell.

Here's what it's responsible for, in practical terms:

• Starting and stopping the high-voltage system based on requests from the EME (the electric motor's control unit)
• Reading every cell's voltage and temperature, plus the current running through the high-voltage circuit
• Running the cooling system for the battery
• Calculating State of Charge and State of Health — in other words, how full the battery is and how much life it's got left in it
• Figuring out available power, and telling the EME to back off if the battery can't deliver what's being asked of it
• Handling safety monitoring — voltage and temperature limits, checking the high-voltage contacts, and watching for insulation faults

When the SME logs a fault, it doesn't treat every fault the same way. Depending on how serious it is, the response falls into one of three buckets:

1. Shut the high-voltage system down immediately
2. Limit power output and driving range
3. Log it quietly with no effect the customer will ever notice

That third category is worth remembering next time a 530Le comes in with a stored fault code but the customer swears "it drives totally normal." Sometimes it really is nothing urgent — the SME already decided that for you.

The Safety Box: Where the High-Voltage Connection Actually Gets Made

The safety box is where the pack physically connects — or disconnects — from the rest of the high-voltage network. It contains:

Contactors. Two electromechanical contactors connect or disconnect the battery from the high-voltage onboard network, and the SME controls both of them. A rear power distribution box supplies these contactors with the standard 12V vehicle voltage. There's a third contactor too, used for pre-charging — before the two main contactors close, the system checks the connection across the high-voltage network first. This pre-charge step matters because closing the circuit cold, with no pre-charge, would send a damaging surge of current through the components.

A voltage/current sensor. This measures voltage and current right at the battery output or at the connection to the high-voltage network, and it talks to the SME over an internal local CAN bus.

A fuse on the positive battery terminal circuit.

Insulation monitoring, checking that the high-voltage measuring equipment itself isn't developing insulation problems.

Battery Monitoring Electronics: Watching Every Individual Cell

The SME supplies 5V to the battery monitoring electronics, though these can also draw power directly from the cell modules. Their job is watching over 12 lithium-ion cells at a time:

• Measuring and monitoring each individual cell's voltage
• Measuring and monitoring the temperature of each cell module
• Reporting all of that back to the SME
• Running the cell voltage balancing process

One battery monitoring unit acts as the master, communicating with the SME and with the other monitoring units (which act as slaves) over an internal local CAN network.

Twin Battery Cell Modules

Each battery cell module is built from 12 lithium-ion cells wired in series, clamped together with a pressure plate. Three temperature sensors are built into each module, and a cover plate protects against accidental contact. Two of these modules are bolted together with a heat sink sandwiched between them.

Every module carries a unique serial number, and it's worth knowing how to read one, because it tells you exactly what you're looking at:

Example: BMW 6127 8649734-04 194611 14 China 17-07-16 00001

• 8649734 — seven-digit part number
• 04 — two-digit change index
• 19461114 — eight-digit supplier number
• 170716 — six-digit production date (year, month, day)
• 00001 — five-digit serial number

If you're ever cross-referencing a module for a warranty claim or a parts order, this breakdown saves a lot of back-and-forth.

Coolant Temperature Sensor and Heat Exchanger

A coolant temperature sensor sits at the outlet of the reservoir and reports coolant temperature straight to the SME.

Cooling itself runs through a heat exchanger built from flat aluminum tubing, positioned underneath the battery cell modules and tied into the car's air conditioning refrigerant circuit. That means the AC system isn't just cooling the cabin on a 530Le — it's extended to cool the high-voltage battery too.

How the System Actually Behaves: Startup, Shutdown, and Cooling Logic

Turning the High-Voltage System On and Off

Starting the high-voltage system is a joint effort between the EME and the SME. The EME acts as the master, the SME as the slave carrying out the actual work, and the commands between them travel over PT-CAN2.

When the ignition (terminal KL15) comes on, or the car needs parked climate control or is plugged in to charge, the EME requests a startup. That startup happens in defined steps:

1. Pre-charge test — checking that the battery and the entire high-voltage network are ready to go, including confirming the high-voltage interlock circuit is closed
2. Gradual voltage ramp-up — because of the capacitance in the high-voltage circuit (the intermediate circuit capacitors), closing the contactors instantly would send a damaging inrush current through them, so voltage is raised slowly instead
3. Closing the main contactors

Shutdown works differently depending on the situation. A normal shutdown protects the electrical components and checks the system methodically — the contactors only open once current has dropped close to zero, otherwise they'd be opening under heavy load, which damages them over time.

A fast shutdown happens whenever voltage needs to drop to a safe level immediately, for safety reasons:

• Collision — depending on severity, either a bus signal requests shutdown, or the safety battery terminal is forcibly disconnected from the 12V positive terminal, which cuts power to the contactors and forces them open automatically
• Overcurrent — the voltage/current sensor monitors current continuously, and if it detects excessive current, the SME forces the contactors open
• Short circuit
• Critical cell condition — undervoltage, overvoltage, or overtemperature on an individual cell
• Interlock circuit interruption

Watching for Insulation Faults

Insulation monitoring checks whether the resistance between live high-voltage components (like the high-voltage cabling) and the vehicle chassis stays above the required minimum. Drop below that minimum, and you've got a real risk of vehicle components carrying dangerous voltage.

The response is staged in two levels. Cross the first threshold, and there's no immediate danger to anyone — the high-voltage system stays active, no warning is shown to the driver, but the fault gets logged. Drop below the second, lower threshold, and it's a different story: the fault is logged and a check-control message tells the driver to get the car into a shop.

Cooling Control

To get the longest life and the most usable power out of the pack, BMW keeps it running within a defined temperature window. In principle, the high-voltage battery's operating range is -40°C to +55°C — and that's the actual temperature of the individual cells, not the ambient temperature around the car.

Once a cell's temperature passes 32°C, the SME kicks off active cooling and opens the combined expansion and check valve, letting refrigerant flow to the battery. This runs independently of cabin cooling, controlled through its own dedicated valve. Outside that range, the valve stays closed and the battery isn't actively cooled.

Cell Voltage Balancing

Here's something that trips up a lot of technicians who are new to hybrid work: if even one cell in the pack sits noticeably lower than the rest, it limits how much usable energy the whole battery can deliver. The pack's capacity gets dictated by its weakest cell — once that cell hits its discharge limit, the whole system has to stop drawing power, even if every other cell still has plenty left. Keep discharging past that point, and you'll permanently damage the weak cell.

That's why cell balancing exists. Periodically, even while the car is asleep, the SME wakes up and compares every cell's voltage against the others. Since balancing can only happen by selectively discharging individual cells, it targets whichever cells are sitting noticeably higher than the weakest one. It sends a request over the local CAN network to that cell's monitoring electronics, which discharges it through a resistor built into the monitoring unit until voltages even out.

It's a lossy process — you're literally burning off energy to balance things — but it's necessary to get full usable capacity and a long service life out of the pack. On a 530Le, this happens fully automatically whenever the car is parked.

Service Notes Worth Knowing Before You Touch One

A few things we tell every technician before they open up a 530Le battery pack:

• High-voltage safety rules apply, full stop. Never work on a live high-voltage component. Before any work involving high-voltage parts, the system has to be de-energized and locked out against being switched back on unintentionally.
• Internal faults inside the battery unit are not a DIY job. This work needs properly trained technicians, and if your shop isn't equipped for it, the right move is sending the car to a qualified BMW-authorized repair partner.
• Serial numbers and installation positions are stored in the SME. That pairing between each cell module, its monitoring electronics, and its installed position has to stay intact through any repair. If you're replacing a module or monitoring unit, log the new part's serial number and position before you install it — it'll save you a headache during commissioning.
• Voltage matching matters on module replacement. Before installing a new cell module, confirm its voltage matches the rest of the pack. The diagnostic system will show you the target voltage from the module replacement instructions — don't skip that check.
• Use the built-in service functions. The diagnostic system has dedicated high-voltage battery service functions under: Service Functions > Drive System > High-Voltage Battery Unit.

Frequently Asked Questions

What controls the BMW 530Le's high-voltage battery? The SME (Storage Management Electronics) control unit manages the pack — monitoring cell voltage and temperature, running the cooling system, calculating charge and health status, and handling all the safety functions.

What temperature range does the 530Le high-voltage battery operate in? The pack is designed to run between -40°C and +55°C, measured at the individual cell level rather than ambient temperature. Active cooling kicks in once cells pass roughly 32°C.

Why does a 530Le battery lose usable range even when most cells are healthy? Because the pack's usable capacity is limited by its weakest cell. If one cell is significantly lower than the rest, the system has to stop discharging once that cell hits its limit — even if the other cells still have charge left. That's exactly what cell balancing is designed to fix over time.

Can a 530Le high-voltage battery be repaired at module level? Yes — BMW's service structure allows individual cell module or monitoring electronics replacement rather than always swapping the entire pack, provided the correct serial number and installation position matching is followed and the new module's voltage is matched before commissioning.
