Installing a BMW navigation map update should be simple: download the correct map files, copy them to a USB drive, connect the drive to the car, and follow the iDrive instructions. Yet many BMW owners reach the same frustrating point—the system asks for an FSC code, or the code they have is rejected.

The reason is easy to understand once the BMW FSC system is explained.

An FSC code is not just a random number. It is a vehicle-specific activation key that connects the navigation map, the BMW’s VIN, and the head unit installed in the car. If one part of that combination does not match, the update may stop before installation begins.

This guide explains what a BMW FSC code is, how it works, which BMW systems use a typed code or an FSC file, and what to do if your activation is missing, rejected, or connected to a retrofitted head unit.

What Is a BMW FSC Code?

FSC stands for Freischaltcode, a German term that means activation code.

In practical terms, a BMW FSC code is a digital licence that authorises a specific BMW navigation system to install a particular map version. The map files contain the navigation data, but the FSC activation tells the head unit that the vehicle is allowed to use them.

Without the correct FSC activation, the map files on the USB drive are simply data. The BMW may recognise that an update is available, but it will not complete the installation unless the activation matches the vehicle and head unit.

A BMW FSC activation is generally linked to:

• The vehicle’s 17-character VIN
• The installed BMW head unit
• The navigation map version
• The geographical region
• The type of activation purchased

This is why an FSC code from another BMW normally will not work, even if both vehicles are the same model, use the same map package, and were built in the same year.

Is an FSC Code the Same as an Activation Code?

Yes. The terms are usually used interchangeably.

• FSC code is the technical BMW term.
• Activation code is the simpler description.
• Navigation activation code is another common phrase used by BMW owners and update providers.

They all refer to the authorisation needed by the head unit before a map update can be installed.

Why Does BMW Use an FSC Activation?

BMW separates the map data from the activation because the map files are large and shared across many vehicles.

A European map package, for example, may contain many gigabytes of roads, addresses, points of interest, speed-limit information, and routing data. The same map package can be used by thousands of cars with compatible BMW navigation systems.

The map files are therefore general data. The FSC activation is the vehicle-specific licence.

This arrangement allows BMW to manage navigation updates more efficiently:

1. The map package contains the actual navigation information.
2. The FSC activation confirms that the vehicle is authorised to install it.
3. The head unit checks the activation against its stored identity.
4. The update continues only when the information matches.

That is why downloading the correct map package alone may not be enough. The vehicle still needs the appropriate activation.

Is a BMW FSC Code Always a Typed Code?

No. The activation format depends on the BMW head unit generation.

Older systems usually use a 20-character alphanumeric FSC code that the driver enters into the iDrive screen. Newer BMW systems often use an FSC file that is placed on the USB drive with the map files. The head unit reads the file automatically during the update.

Both formats perform the same basic job. The difference is how the activation reaches the navigation system.

BMW Head Units That Commonly Use a Typed FSC Code

These systems generally require the activation code to be entered manually:

• Motion
• Move
• Route
• Premium
• Next
• EVO ID4

The iDrive system normally displays a prompt during the map update. The driver enters the 20-character code using the iDrive controller.

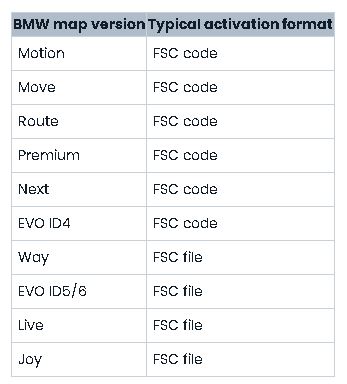

BMW Head Units That Commonly Use an FSC File

These systems generally read the activation file from the USB drive:

• Way
• EVO ID5/6
• Live
• Joy

There is usually no code-entry screen on these newer systems. If you are following an installation guide that tells you to type a code but your BMW never asks for one, you may be using instructions intended for a different head unit generation.

The names can sometimes be confusing because BMW map versions are linked to particular head units and model years. Checking the exact navigation version before ordering an FSC activation is essential.

BMW FSC Code Compatibility: VIN, Map, and Head Unit

A valid FSC activation must match more than the vehicle registration number.

1. The VIN Must Match

The VIN identifies the vehicle. A code generated for a different VIN will normally be rejected.

Even two identical BMW vehicles with the same engine, trim level, and navigation option need separate FSC activations because their VINs are different.

2. The Map Version Must Match

BMW navigation systems use different map families, including:

• Motion
• Move
• Route
• Premium
• Next
• Way
• EVO
• Live
• Joy

An FSC activation for BMW Premium maps will not normally activate BMW Next maps. Similarly, a code for EVO ID4 should not be confused with one for EVO ID5/6.

3. The Head Unit Must Match

The head unit is the computer that operates the BMW navigation and iDrive system. If the head unit has been replaced, repaired, or retrofitted, its internal identity may no longer match the original equipment fitted to the vehicle.

This is one of the most common reasons a code generated from the VIN is rejected.

Single-Use and Lifetime BMW FSC Codes

BMW FSC activations are commonly supplied in two forms: single-use and lifetime.

Single-Use FSC Code

A single-use FSC activation is intended for one specific map update or map release.

It can be a practical option when:

• You only need to update the map once.
• You are selling the vehicle soon.
• You do not install updates regularly.
• You want the lowest initial cost.

After it has been used for the specified map activation, a new code may be required for a future update.

Lifetime FSC Code

A lifetime FSC activation is designed to cover future map releases for the same compatible map family and vehicle.

It may make more sense when:

• You plan to keep the BMW for several years.
• You update navigation maps regularly.
• You drive long distances.
• You want to avoid purchasing another activation each time.

The exact coverage can depend on the map family, head unit, and product terms, so it is important to confirm compatibility before ordering.

BMW Map Regions: Europe, North America, and More

Some BMW map families are divided into regional packages. Europe is commonly offered in separate East and West packages, depending on the map generation and coverage.

In many cases, one compatible FSC activation can be used with either regional package for the same vehicle and map family. The activation remains linked to the VIN and head unit rather than being limited to only one European sub-region.

However, crossing continents is different.

A European FSC activation will not normally authorise a North American map package. Likewise, a Middle East activation should not be expected to activate European navigation data.

A separate regional activation may be needed when:

• A vehicle is imported into another continent.
• A BMW is moved permanently to a different market.
• The head unit is being configured for a new geographic region.
• A fleet contains vehicles assigned to different territories.

Always match the map region to the navigation system and the market in which the vehicle is being used.

Why Is My BMW FSC Code Not Accepted?

A rejected FSC code does not always mean the code was entered incorrectly. In many cases, the head unit itself has a different identity from the one expected by the activation system.

The most common causes include the following.

The Head Unit Was Replaced

A previous owner may have replaced the original head unit after a failure. A repair shop may also have installed a used unit from another BMW.

Even when the replacement unit is the same type, it may still contain identity information from the donor vehicle.

For example, an NBT head unit taken from another BMW may still be associated internally with that donor car. Your vehicle’s VIN is printed on the chassis, but the head unit may be expecting a different VIN.

The BMW Was Retrofitted

Many BMW owners upgrade their navigation systems, such as:

• CIC to NBT
• NBT to NBT EVO
• Older navigation to EVO ID4
• EVO ID4 to EVO ID5/6
• EntryNav to EntryNav 2 or Entry EVO

A retrofit normally requires more than installing the hardware. The head unit must also be wired, coded, configured, and associated with the vehicle correctly.

If the FSC activation is applied before those steps are completed, the code may not match the head unit’s final configuration.

The Head Unit Was Patched

Some used BMW head units have previously been modified to bypass or alter the normal activation process. A patch may allow a map update to work temporarily, but it can also leave the unit with an unusual FSC status.

In that situation, a standard activation generated from the vehicle VIN may not be enough.

The Head Unit Was Repaired

A repair may involve replacing internal components or using a refurbished unit. If the part that stores the head unit’s identity has changed, the original FSC data may no longer match.

This is why a BMW that worked correctly before a repair may suddenly reject a previously valid activation.

What to Do When the BMW FSC Code Fails

The first step is to avoid repeatedly purchasing codes without identifying the cause.

If the standard activation generated from your VIN is rejected, the head unit may need to be checked directly. A technician can often read the relevant FSC data from the unit using suitable BMW coding and diagnostic equipment.

Depending on the head unit generation, technicians may work with files such as:

• The 1B file
• The DE file
• Other head-unit-specific FSC data

These files provide information about what the installed unit is actually configured to accept. They can be especially useful when:

• The head unit has been swapped.
• The BMW has a retrofit.
• The unit contains a donor VIN.
• The car has been patched.
• A previous update used an unusual activation.
• A repaired head unit no longer matches the vehicle VIN.

The correct solution is usually to identify the head unit’s current state first, then generate or supply an activation that matches it.

Missing Factory FSC Files: What Does That Mean?

BMW vehicles equipped with factory navigation are delivered with original FSC data stored within the vehicle’s navigation system.

This data may cover:

• Original navigation activation
• Factory-enabled features
• Map-related authorisations
• Other digital permissions associated with the head unit

These files can sometimes be deleted or damaged after:

• Incorrect coding
• Failed programming
• Head unit repairs
• Aggressive resets
• Unsuccessful software work
• Replacement of internal components

When the factory FSC data is missing, navigation may stop working correctly even though the head unit itself still powers on.

OEM FSC Repair Kit

An OEM FSC repair kit is intended to restore the original FSC files associated with the vehicle’s factory configuration.

This is different from buying a normal map-update activation.

A repair kit may be appropriate when:

• The original head unit is still installed.
• Factory FSC files have been deleted.
• The vehicle’s original navigation permissions need restoring.
• The problem began after coding or repair work.

The repair process is not usually intended for beginners. Loading FSC files requires the correct hardware, software, and knowledge of the BMW head unit. In some cases, product documentation may not include installation instructions, so professional assistance is the safer route.

A repair kit is also not a guaranteed fix for a swapped head unit. If the unit belongs to another vehicle, restoring the original vehicle’s factory files may not solve the identity mismatch.

FSC Kits for BMW Head Unit Retrofits

Retrofitting a newer BMW navigation system can improve screen quality, performance, smartphone integration, and map functionality. However, the FSC activation is normally one of the final steps—not the first.

Common retrofit FSC kits are available for systems such as:

• CIC
• NBT
• EVO ID4
• EVO ID5/6
• EntryNav 2
• Entry EVO

Before applying a retrofit FSC kit, the head unit should normally be:

1. Installed correctly.
2. Wired to the vehicle correctly.
3. Coded to match the vehicle’s options.
4. VIN-changed or configured for the current vehicle.
5. Checked for communication and diagnostic faults.
6. Prepared for the FSC activation.

Applying the FSC kit too early can create another mismatch. The activation should match the head unit’s final configuration, not its temporary state during installation.

A retrofit is therefore best handled by someone familiar with BMW coding, programming, diagnostics, and head unit configuration.

How a BMW Navigation Map Update Uses the FSC Activation

The exact steps vary between BMW generations, but the general process looks like this:

1. Identify the correct BMW map version.
2. Download the matching map package.
3. Prepare a compatible USB drive.
4. Copy or extract the map files correctly.
5. Start the BMW and keep the vehicle powered during the update.
6. Insert the USB drive into the correct data port.
7. Allow iDrive to detect the update.
8. Enter the FSC code if the head unit uses a typed activation.
9. Allow the head unit to read the FSC file if it uses file-based activation.
10. Wait for the map installation to finish.

Older head units generally ask for a 20-character FSC code. Newer systems often read an FSC file automatically.

The vehicle should remain powered during the installation. Interrupting the process can cause incomplete map data or software problems.

BMW FSC Code FAQ

Can I use one FSC code on two BMWs?

No. An FSC activation is normally tied to a specific vehicle and head unit. A code from another BMW will not normally work.

How long is a BMW FSC code?

On older BMW head units, the FSC activation is usually a 20-character alphanumeric code. Newer systems may use an FSC file instead of a code that you type manually.

Does a single-use FSC code expire?

A single-use activation is intended for one specified map activation. It is not the same as a lifetime activation covering future releases.

Does a lifetime FSC code work forever?

A lifetime activation is generally intended to cover future updates for the same vehicle and compatible map family. Always check the specific product coverage before purchase.

I bought a used BMW and have no FSC paperwork. Is that a problem?

Usually not. Many owners do not receive FSC paperwork because activations can be generated when a map update is needed. A standard VIN-based activation may work unless the vehicle has a replacement, retrofitted, or modified head unit.

Why does the FSC code work on the website but fail in the car?

The vehicle may contain a different head unit identity, donor VIN, map family, or activation status. The code must match the installed head unit—not just the VIN printed on the vehicle.

Is an FSC repair kit the same as a map-update code?

No. A map-update FSC activates a particular navigation update. An FSC repair kit is intended to restore missing or damaged factory FSC data.

The Simple Way to Think About BMW FSC Codes

A BMW FSC activation is the licence that connects three things:

• The car
• The head unit
• The map version

If all three match, the update should normally proceed.

If the code is rejected, do not immediately assume the map files are bad. First check whether:

• The correct map family was selected.
• The map region is compatible.
• The head unit has been replaced.
• The BMW has been retrofitted.
• The unit was previously patched.
• Factory FSC files are missing.
• The activation format matches the head unit generation.

For owners who already have the correct map files, a standalone BMW FSC activation may be enough. For everyone else, a complete navigation update package is usually the simpler route because it combines the map data, activation, preparation tools, and instructions.

BMW FSC codes can seem mysterious because the map files and activation are handled separately. Once the system is understood, the logic is much clearer.

The map files provide the navigation data. The FSC activation confirms that the specific BMW and head unit are authorised to use that data.

For a normal factory head unit, a VIN-based FSC activation is often all that is needed. When the code is rejected, however, the problem may be deeper—especially if the car has a used head unit, a retrofit, a repair history, or previous coding work.

The safest approach is to identify the BMW map version and head unit first. That small check can prevent the most common mistake: purchasing an activation for the wrong system.

Related BMW Training and Services

For technicians, enthusiasts, and BMW owners who want to understand coding, programming, diagnostics, and retrofit work in greater detail, the BMW Advanced Programming Course provides online training focused on BMW ECU/DME programming, coding, and retrofits.

Professional support is also available for BMW ECU repair, coding, programming, diagnostics, electronic modules, and fault detection through BMW Services.

Recommended Resources

• BMWAdvancedProgrammingCourse
• BMWServices
