BMW engines are brilliant, but they can also be picky. When the DME starts logging fault codes, it is easy to panic and assume the worst. In real workshop life, though, many of these faults come from simple electrical problems, weak voltage, damaged wiring, or a failing actuator rather than a dead ECU.

That is why smart diagnosis matters. If you chase the code instead of the cause, you can end up replacing injectors, modules, or sensors that were never the real problem.

Below, I’ll walk through some common BMW DME fault codes, what they usually mean, and how a proper technician would approach them.

What Is the BMW DME?

BMW’s DME, or Digital Motor Electronics, is the engine control unit that manages fuel injection, ignition timing, emissions, sensor readings, and many other engine functions. On modern BMWs, the DME is deeply connected to the rest of the car, so one voltage issue can trigger several fault codes at once.

That is why a scan tool reading is only the starting point. The code tells you where the DME noticed a problem, not always where the problem began.

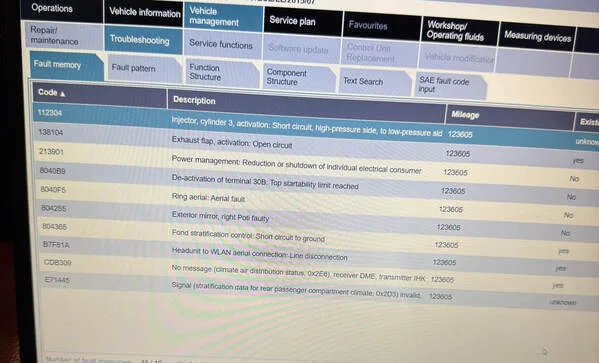

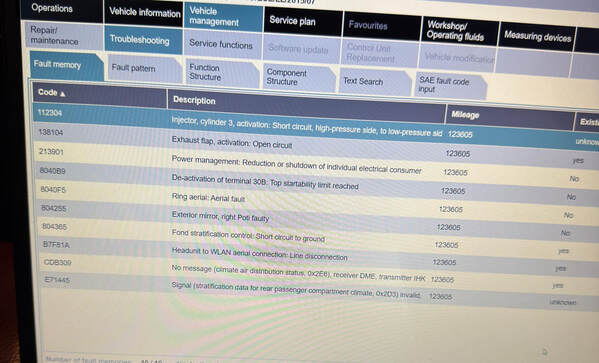

Common BMW DME Fault Codes and What They Mean

112304 — Injector, Cylinder 3 Activation: Short Circuit

This fault usually points to an electrical issue in the injector circuit for cylinder 3.

Common causes

• Shorted fuel injector
• Damaged injector wiring
• Internal DME driver failure
• Water damage near the injector harness
• Poor engine grounding

Real workshop diagnosis

One of the biggest mistakes is replacing the injector right away without checking the circuit first. A good technician will test injector resistance, inspect the wiring, and verify that the DME is actually sending the correct control signal.

If the injector and wiring test properly, the fault often sits inside the DME itself. In many cases, the injector driver transistor has failed.

What to check

• Injector resistance
• Wiring continuity
• DME connector pins
• Injector activation signal
• Signs of oil, coolant, or water contamination

138104 — Exhaust Flap Activation: Open Circuit

This code is common on turbocharged BMW models with electronically controlled exhaust flaps.

Symptoms

• Loud exhaust tone
• Exhaust flap stuck open
• Reduced low-end torque
• Check engine light

Possible causes

• Failed exhaust flap actuator
• Broken wiring
• Corroded connector
• Bad control output from the module

Heat, vibration, and moisture are rough on these components. Over time, the connector or actuator can fail, especially on cars that see a lot of daily use or weather exposure.

Repair tip

Always inspect the actuator and linkage physically before replacing anything. Sometimes the flap is jammed by carbon buildup, and the motor is fine.

213901 — Power Management: Reduction or Shutdown of Electrical Consumer

This is one of the most common BMW electrical faults, and it often has nothing to do with the engine itself.

What it means

The vehicle is managing electrical load because battery voltage is not where it should be. BMW does this to protect the system and keep the car running.

Common causes

• Weak battery
• Faulty IBS sensor
• Alternator charging issue
• Excessive parasitic drain
• Battery not registered properly

Important BMW battery note

BMW cars need battery registration after replacement. If the battery is changed but not registered, the vehicle may keep seeing battery management issues and may continue logging fault codes.

Recommended diagnosis

• Test battery health
• Check charging voltage
• Read IBS sensor data
• Measure current draw during sleep mode
• Confirm battery registration

8040B9D — e-Activation of Terminal 30B

This fault usually appears when voltage supply drops below the expected threshold.

Main causes

• Weak or aging battery
• IBS sensor problems
• Power distribution faults
• Energy management shutdown

In many cases, this code is not a sign of a bad DME. It is the car trying to protect itself from low voltage.

Real-world solution

A fresh AGM battery, properly coded and registered, can solve this fault completely when the battery is the real cause. Many owners replace modules before checking the battery, and that gets expensive fast.

804365 — Fond Stratification Control: Short Circuit to Ground

This fault is linked to climate control air distribution systems.

Possible causes

• Shorted air flap motor
• Wiring damage
• Climate control module issue
• Water intrusion in HVAC area

Common symptoms

• Uneven cabin temperature
• Weak or strange airflow
• Clicking sounds behind the dash
• HVAC not responding properly

This type of fault can take more time to diagnose because access to the components may require dashboard or trim removal.

CDB309 — No Message from Climate Air Distribution Status

Communication faults like this one often confuse owners because the DME may not be the real source of the problem.

What it means

The DME is not receiving the expected communication data from the climate control system.

Possible causes

• CAN bus interruption
• Faulty IHKA module
• Wiring issue
• Low voltage condition
• Water damage

Diagnosis tip

Start with battery voltage and network stability before replacing modules. On BMWs, communication faults often show up after low-voltage events.

Why BMW DME Diagnosis Has to Be Done Properly

BMW electrical systems are tightly linked. A single weak battery can create several unrelated-looking faults. That is why fault code memory should never be treated like a parts shopping list.

A proper diagnosis usually includes:

• Live data analysis
• Wiring inspection
• Voltage supply testing
• Oscilloscope testing
• Ground testing
• CAN network checks

This is the kind of work that saves time, money, and frustration.

The Most Common Electrical Problems Behind BMW DME Faults

In real workshops, these are the repeat offenders:

1. Weak or failing battery

Low voltage causes a surprising number of BMW faults.

2. Grounding issues

Bad grounds can create false readings, weak signals, and communication errors.

3. Water damage

Moisture near the DME, connectors, or wiring can cause intermittent faults that are hard to pin down.

4. Alternator problems

If charging voltage is unstable, the car may log power management and communication faults.

5. Internal ECU failure

Sometimes the DME does fail internally, especially if injector drivers or output stages are damaged.

When the DME Itself Is the Problem

Not every fault comes from wiring or sensors. Sometimes the ECU hardware is damaged. Common signs include:

• No injector output
• Repeated driver circuit faults
• Missing communication with other modules
• Burn marks, corrosion, or water damage on the ECU
• Faults that stay even after wiring checks

At that point, ECU repair or replacement becomes the right path.

A professional ECU technician will usually test the board, check driver circuits, inspect solder joints, and confirm whether repair is possible before recommending a replacement.

Repair or Replace?

That depends on the fault and the condition of the module.

Repair makes sense when:

• The issue is a failed driver circuit
• The ECU has moisture damage
• A connector pin or internal joint is damaged
• The module still communicates normally

Replace makes sense when:

• The ECU is heavily damaged
• The board is burned
• Multiple internal circuits have failed
• Repair would not be reliable long term

For many BMW owners, repair is the smarter route if the module is still structurally sound.

What BMW Owners Should Do First

If your BMW throws one of these DME codes, start here:

1. Check battery condition
2. Verify charging voltage
3. Scan all modules, not just the DME
4. Inspect connectors and wiring
5. Test the relevant circuit before buying parts
6. Confirm whether the battery has been registered
7. Only then decide on ECU repair or replacement

This simple process prevents a lot of guesswork.
