BMW Coding & Flashing: What Equipment Do You Really Need?

If you have ever tried tweaking options or resetting fault codes on a BMW, you quickly learn one hard truth: a single cheap cable will not cover every job.

Whether you want to clear a simple check engine light on an older E46, code fresh ambient lighting on a G30 5 Series, or flash updated software onto a bricked control module, your gear makes or breaks the outcome. Diagnostics, coding, and flashing are three completely different tasks, each placing very different demands on your hardware.

This practical guide cuts through the confusion and breaks down the exact interfaces, cables, and power units you need to build a rock-solid BMW diagnostic setup.

Crucial Warning: Coding and flashing are done entirely at your own risk. Voltage drops, loose USB ports, or interrupted connections during an ECU flash can render a control unit uncommunicative. For critical module updates or high-voltage system work, trust a dedicated specialist workshop.

1. Diagnostics vs. Coding vs. Flashing: What’s the Difference?

Before buying hardware, clarify your end goal. The risk profile and tool requirements scale dramatically depending on what you are trying to achieve:

TaskExample JobRisk LevelMinimum Recommended GearDiagnosticsReading/clearing fault codes, checking live DPF dataLow to MediumQuality OBD Bluetooth adapter or K+DCAN/ENET cableCodingEnabling digital speedometer, folding mirrors via key fobMediumHigh-quality interface, laptop on mains power, basic battery supportFlashing / ECU ProgrammingUpdating I-Step levels, tuning engine/transmission ECUsHighICOM or reliable ENET cable, 70A+ clean power supply, expert knowledge

Golden Rule:

Diagnostics: A simple wireless app adapter gets the job done.
Coding: Requires a stable, wired connection and zero computer sleep interruptions.
Flashing: Demands a professional-grade continuous power supply and an ICOM or bulletproof ENET link.

2. BMW Model Compatibility Guide

BMW diagnostic protocols changed significantly over the decades. Matching your vehicle generation to the correct interface saves hours of troubleshooting:

Older BMWs with Engine Bay 20-Pin Ports (E31, E32, E34, E36, Early E38/E39/E46): Requires a 16-pin to 20-pin round adapter. Note: Ensure your interface supports genuine ADS protocols if working on very early '90s models.
E-Series & MINI R-Series with K-Line (E46, E39, E53, Early E60/E83): Requires a K+DCAN cable with a physical Pin 7/8 switch toggled to bridge mode.
E-Series with D-CAN (E8x, E9x, E6x LCI, E7x, E89): Standard K+DCAN USB cable. The classic setup for INPA, NCS Expert, Tool32, and WinKFP.
F, G, & I-Series (F10, F30, G20, G30, i3, i8): ENET cable (Ethernet-to-OBD) or ICOM. ENET works natively with E-Sys and ISTA+.
Professional All-Round Workshop Use: ICOM NEXT / ICOM A system with fiber-optic (MOST) adapters.

3. Wireless Mobile Apps: Quick & Easy Entry

Apps like BimmerCode, BimmerLink, xHP Flashtool, MHD, and Carly have made basic tweaks accessible to everyone. However, your adapter matters:

Bluetooth / BLE Adapters: Great for daily logging and toggling comfort options. Stick strictly to adapters explicitly listed on your app’s official compatibility page.
WiFi Adapters: Fast data transfer, but wireless interference can occasionally interrupt sessions.
ENET to USB-C / Lightning Cables: The fastest, most reliable mobile choice for F and G chassis models running compatible apps.

Avoid using basic app adapters for full module flashing or major software updates.

4. K+DCAN & K-Line Cables: The E-Series Standard

The K+DCAN USB cable remains the backbone of E-series diagnostics. When picking a K+DCAN interface, keep these pointers in mind:

Check the USB Chipset: Opt for cables built with genuine FTDI chips to prevent driver crashes.
Built-in Pin 7/8 Switch: Essential if you switch between older K-Line vehicles (where pins 7 and 8 must be bridged) and newer D-CAN vehicles (where pins 7 and 8 must remain separated).
Dedicated Port Settings: Always assign your cable to COM Port 1 in Windows Device Manager and set Latency Timer to 1 ms for stable INPA/NCS Expert communication.

5. ENET Cables: Fast & Reliable for F, G, and I Models

ENET (Ethernet-to-OBD) cables route direct network communication between your PC’s LAN port and the vehicle’s Ethernet gateway. Because ENET uses standard network hardware, cables are simple, durable, and highly cost-effective.

Best Practices for ENET Sessions:

Turn off Wi-Fi, VPNs, and active firewalls on your laptop before launching E-Sys or ISTA.
Use a high-quality USB-to-Ethernet adapter if your laptop lacks a native RJ45 network port.
Disable sleep mode and screen savers on Windows.

6. BMW ICOM: The Professional Standard

The Integrated Communication Optical Module (ICOM) is BMW’s official dealer hardware interface.

ICOM A / NEXT: Primary module for standard OBD diagnostic protocols and Ethernet connections.
ICOM B: Fiber-optic (MOST) interface required for flashing older head units and instrument clusters.
ICOM C: Adapter unit for legacy round 20-pin engine bay connectors.

While high-quality clones exist, professional shops working on customer vehicles should always opt for genuine ICOM hardware to ensure clean voltage regulation and zero communication dropouts during extensive module updating.

7. Vehicle Power Supply: The #1 Ignored Factor

The single most common cause of a failed flash or bricked module isn’t bad software—it’s voltage drop. When a BMW’s ignition remains on during a long flash session, fuel pumps, auxiliary fans, and ECU modules drain the battery rapidly. If system voltage drops below 12.5V (or 13.8V depending on module requirements), the flash halts immediately.

Trickle Chargers (5–10A): Fine for maintaining battery health in garage storage. Unsafe for ECU flashing.
Mid-Range Power Units (30–50A): Good for basic diagnostic scans and quick coding tasks.
Professional Flashing Power Supplies (70–100A+ Clean Power): Mandatory for ECU flashing and I-Step updates. These units provide continuous, ripple-free voltage without fluctuating.

Never use a battery booster/jump-start mode during programming, as high voltage spikes can instantly damage sensitive electronics.

8. Pre-Flight Setup Checklist

Before hitting “Execute” on any coding software or flash tool:

Connect your laptop to its wall charger.

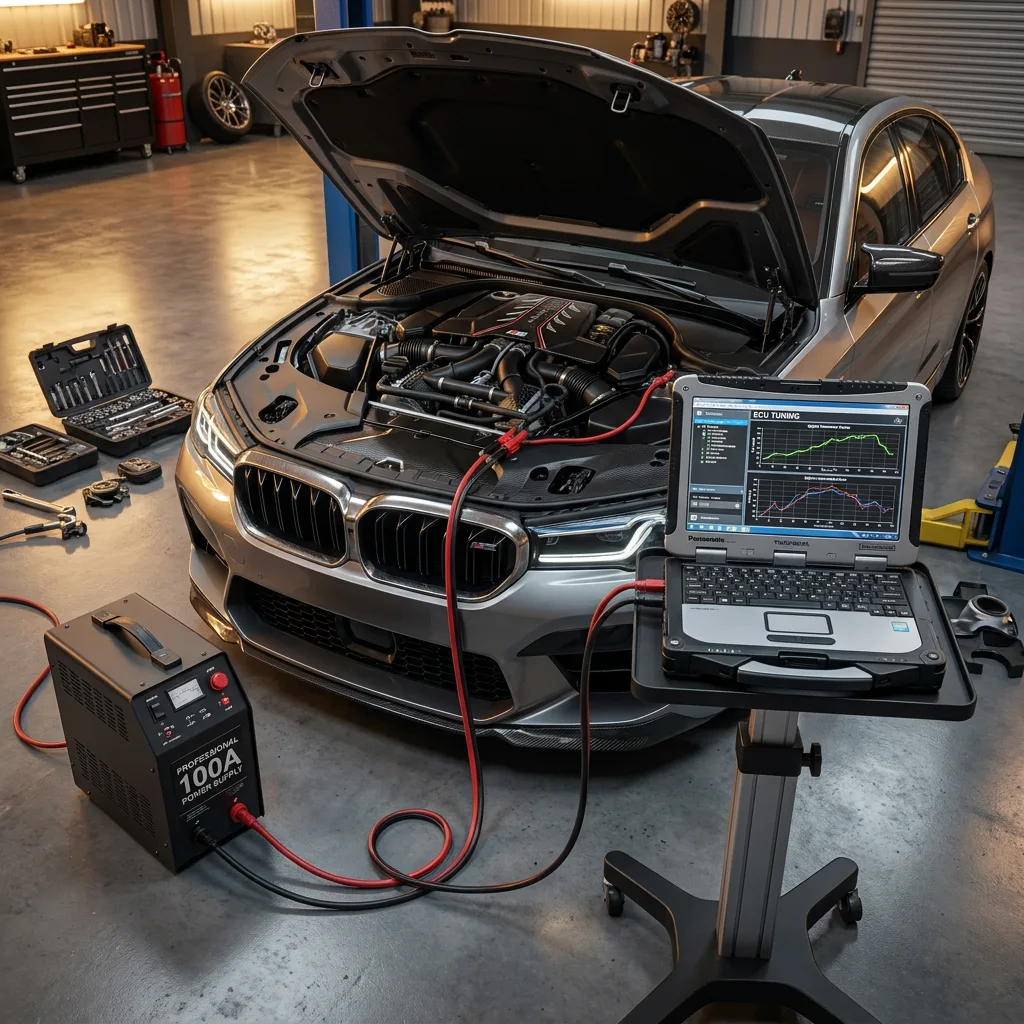

Hook up a regulated continuous power supply to the vehicle’s under-hood jump points (not directly to battery terminals).
Set Windows Power Plan to High Performance (disable sleep, hibernation, and USB selective suspend).
Turn off climate control, headlights, stereo, and seat heaters inside the car.
Close the vehicle doors or latch them manually so the car stays in ignition-on mode without putting modules to sleep.

For F/G Series Hobbyists: Grab a solid ENET cable, a reliable Ethernet USB adapter, a laptop, and a decent battery support unit.

For E-Series Enthusiasts: Get a high-grade K+DCAN cable with a physical switch, verify your FTDI drivers, and keep your laptop plugged in.
For Advanced Flashing & Workshop Use: Invest in a true ICOM setup paired with a professional 70A–100A continuous supply unit.
