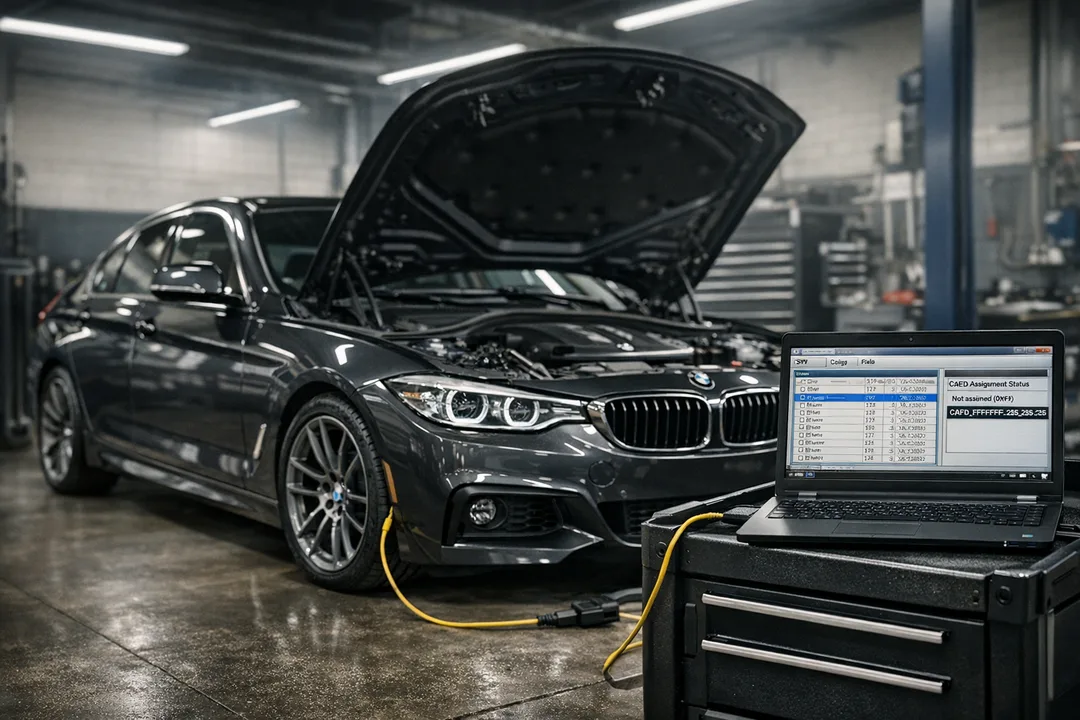

BMW CAFD_FFFFFFFF_255_255_255 Meaning: Causes, Fixes, and Next Steps

If you work with BMW E-Sys, ISTA-related data, or advanced vehicle coding, you may eventually see an ECU entry labeled:

CAFD_FFFFFFFF_255_255_255

At first glance, the line can look serious. Many people immediately assume the ECU has failed, the car has been bricked, or the coding session has gone badly wrong.

In reality, this entry usually points to a missing, invalid, or unavailable CAFD assignment. It is a data and configuration issue that needs to be investigated carefully. The placeholder does not automatically prove that the ECU itself is defective.

Understanding the difference is important. It can save time, prevent unnecessary programming attempts, and help you collect the right information before asking for technical support.

What Does CAFD_FFFFFFFF_255_255_255 Mean?

A normal BMW CAFD identifier points to a specific coding application and version used by an ECU. CAFD files contain the coding structure that allows software such as E-Sys to read and modify the ECU’s available parameters.

The value CAFD_FFFFFFFF_255_255_255 is not a normal CAFD assignment. It uses placeholder values instead of a valid coding application reference.

In simple terms, the vehicle’s current SVT entry is saying:

“This ECU is present, but a usable CAFD reference has not been assigned or identified.”

The ECU may still communicate correctly with the vehicle. It may still show software identifiers, diagnostic information, and other data.

The problem is that the coding layer required for certain E-Sys operations is missing or does not match the available data.

This is why the placeholder should be treated as a diagnostic clue, not an automatic verdict that the ECU is damaged.

What Is a CAFD File?

CAFD stands for Coding Application File Data. In BMW coding workflows, the CAFD helps define the coding parameters available for a particular ECU software version.

It is useful to think of the CAFD as a translation layer between:

The BMW ECU software
The vehicle order, also called the FA
The software transaction view, or SVT
The coding data used by E-Sys
The NCD coding file generated for the ECU

When the correct CAFD is available, E-Sys can usually display the ECU’s coding functions in a structured way. This may include lighting behavior, comfort settings, driver assistance options, display settings, sound-related functions, and other configuration parameters.

However, a CAFD must match the ECU software and the vehicle’s data environment.

Choosing one simply because the name looks similar can create additional problems.

Why Does BMW E-Sys Show This Placeholder?

There are several possible reasons for the CAFD_FFFFFFFF_255_255_255 entry. The correct solution depends on what happened before the problem appeared.

1. The ECU Was Replaced

If an ECU, body control module, gateway, head unit, or other control unit was replaced, the new unit may not yet have a suitable coding application assigned.

This is common after:

ECU replacement
Used module installation
Retrofit work
Dealer programming
Control-unit cloning
Software updates
Hardware upgrades

A replacement ECU can communicate with the vehicle while still lacking the correct coding assignment. Communication and coding readiness are not always the same thing.

2. The SVT Read Is Incomplete

The SVT Actual is a snapshot of the control units detected in the vehicle. If the read process is interrupted, incomplete, or performed while the vehicle is not in a stable condition, the resulting file may not contain reliable information.

Possible causes include:

Ignition switching off during the read
Weak battery voltage
Unstable ENET connection
Communication interruptions
Incorrect connection procedure
E-Sys session timeout
The vehicle entering sleep mode

In some cases, a fresh SVT read makes the placeholder disappear. When that happens, the original problem may have been a stale or incomplete data read rather than a lasting ECU issue.

3. The Project or Target Is Incorrect

E-Sys projects and targets are platform-specific. If the selected project does not correspond to the vehicle series or software environment, the system may fail to find the correct CAFD.

This can happen when:

The wrong chassis target is selected
The project is intended for another vehicle platform
The vehicle uses a different integration level
The selected data package does not support the ECU
A target was chosen based on a similar-looking model name

BMW platforms can share components while still requiring different software data. Similar vehicle names do not guarantee compatibility.

4. PSdZData Does Not Match the Vehicle

The installed PSdZData must contain suitable data for the vehicle’s software level and ECU software. If the data is too old, incomplete, or not aligned with the car’s I-Level, the correct CAFD may not be available.

A mismatch can occur when:

The vehicle has recently been programmed
The installed PSdZData is older than the vehicle software
The ECU has newer software than the local data set
Only a partial data package was installed
The selected data set does not cover the vehicle’s platform

This is one of the most common areas to check before attempting any manual assignment.

5. The Vehicle Is in a Transitional Programming State

The placeholder may appear after an interrupted or incomplete programming operation. The ECU might have received part of a software update but not completed the full programming and coding process.

This situation deserves extra caution.

Do not repeatedly send coding or programming commands simply because the ECU is visible in the SVT. First establish:

What operation was being performed
Whether programming completed successfully
Whether the vehicle’s current I-Level is known
Whether all control units are communicating
Whether battery voltage remained stable
Whether E-Sys reported a specific failure

A vehicle in a transitional state may need a proper programming workflow rather than a basic coding operation.

6. The ECU May Not Use a CAFD in the Way You Expect

Not every control unit is handled in exactly the same way. Some modules may not be coded through a normal CAFD workflow, or they may use a different programming and diagnostic process.

This is especially important when working with:

Special-purpose modules
Older BMW platforms
Newer control units
Retrofit modules
Bootloader or gateway-related components
Modules that require another BMW engineering application

Before assuming the CAFD is missing, confirm that the ECU is normally expected to have a CAFD assignment for the operation you are trying to perform.

First Checks to Perform

Before trying to detect or assign a CAFD, begin with the basics. Good diagnostics are usually less dramatic than random clicking and much more effective.

Read the FA Again

Read the vehicle order directly from the vehicle and confirm that the information is complete.

Check:

VIN
Vehicle series
Production information
Installed options
Relevant retrofit codes
Vehicle order consistency

The FA helps E-Sys understand which coding and software configuration applies to the vehicle.

Read SVT Actual Again

Perform a fresh read of the SVT Actual from the vehicle. Avoid relying on an old file saved before a programming session, retrofit, or ECU replacement.

Compare the new result with the earlier SVT and check:

Which ECU shows the placeholder
Whether the ECU is still detected
Whether the diagnostic address is correct
Whether BTLD and SWFL identifiers are present
Whether other control units show normal assignments

If the placeholder disappears after a fresh read, the earlier SVT may simply have been incomplete or outdated.

Confirm the Vehicle Platform

Check the full VIN and confirm that the selected E-Sys target matches the exact BMW platform.

Do not choose a target only because the model name looks close. BMW vehicles can have different electronic architectures across production years, engine variants, body styles, and market versions.

Check the Vehicle I-Level

The vehicle’s integration level, commonly called the I-Level, is an important reference point. It helps identify the software environment installed in the car.

Compare the I-Level with:

The installed PSdZData version
The ECU’s software identifiers
The selected E-Sys project
The programming or coding task you plan to perform

If the local data does not cover the vehicle’s software level, E-Sys may not be able to identify a suitable CAFD.

What Does “Detect CAF for SWE” Do?

E-Sys includes a workflow commonly described as Detect CAF for SWE.

SWE refers to the ECU software environment. The function attempts to locate a CAFD that is compatible with the software installed on the ECU.

A successful detection can restore a normal CAFD assignment and allow the ECU’s coding data to be read or prepared. However, detection is only as reliable as the information supplied to it.

For the best chance of success, make sure you have:

The correct FA
A fresh SVT Actual
The correct vehicle target
A compatible PSdZData version
Stable vehicle voltage
Reliable communication with the car

Do Not Select a CAFD at Random

This warning is worth repeating.

Do not select a CAFD just because:

It has a similar name
It appears first in the list
Another vehicle uses it
A forum post recommends it without context
It has the same general ECU family name

A wrong CAFD assignment can produce invalid coding data, create confusing errors, or make future diagnosis more difficult. The correct CAFD must be compatible with the ECU’s software and the vehicle’s configuration.

How Does It Affect an NCD Request?

An NCD generator prepares coding data for valid ECU and CAFD combinations. If an SVT entry contains CAFD_FFFFFFFF_255_255_255, the tool may:

Skip the ECU
Mark the entry as invalid
Produce no NCD file for that module
Report a CAFD-related error
Continue processing other valid ECUs

This means that a smaller number of generated NCD files does not automatically indicate a service failure.

For example, if an SVT contains ten ECUs but one has an invalid CAFD placeholder, the tool may successfully generate files for the other nine. The missing file may be a direct result of the invalid assignment.

Review the result count and folder structure carefully. Look at which ECU entries were processed rather than judging the operation only by the final number of files.

When Should You Stop Coding?

Stop and return to diagnosis when:

The ECU was recently replaced
Programming was interrupted
The vehicle has several communication errors
The I-Level is unknown
The correct PSdZData version is uncertain
The CAFD detection process finds no valid match
The only suggested solution is to try random CAFD files
Battery voltage is unstable
The vehicle is not responding consistently

Coding is not the same as programming. A coding session changes configuration values, while programming can write software or firmware to a control unit. Confusing the two can turn a manageable data issue into a much larger repair problem.

Always use proper battery support during programming and follow a workflow designed for the exact BMW platform and control unit.

Information to Save Before Asking for Help

When requesting support, a cropped screenshot showing only the all-F CAFD line is rarely enough.

Save and provide:

Full VIN
BMW vehicle series
Current I-Level
Fresh FA file
Fresh SVT Actual file
ECU name
ECU diagnostic address
BTLD identifier
SWFL identifier
Exact E-Sys error message
E-Sys project or target
PSdZData version
Details of any recent ECU replacement or programming session

This information gives a technician a much clearer picture of the vehicle’s software state.

Is CAFD_FFFFFFFF Proof That the ECU Is Bad?

No. The placeholder alone does not prove ECU failure.

It may indicate:

Missing coding data
Incompatible software data
Incomplete SVT information
Wrong project selection
A replacement module awaiting assignment
A programming interruption
A module that does not use a conventional CAFD workflow

The ECU should be considered suspicious only when the placeholder is combined with other symptoms, such as:

No communication
Repeated programming failure
Internal ECU fault codes
Missing software identifiers
Hardware-related diagnostic faults
Network communication problems
A control unit that cannot be detected consistently

The goal is to separate a data assignment problem from a genuine hardware or programming failure.

A Practical BMW E-Sys Troubleshooting Order

A sensible order of checks looks like this:

Stabilize the vehicle voltage.
Confirm the ENET or approved communication connection.
Read the full VIN.
Read FA from the vehicle.
Read SVT Actual again.
Confirm the vehicle platform and target.
Check the current I-Level.
Confirm PSdZData compatibility.
Review the ECU’s BTLD and SWFL information.
Use Detect CAF for SWE only when the data is correct.
Validate the proposed CAFD before coding.
Stop if the ECU remains inconsistent or programming history is unclear.

This process is slower than guessing, but it is far safer and usually saves time.

The BMW CAFD_FFFFFFFF_255_255_255 entry is best understood as a missing or invalid CAFD assignment in the current vehicle data. It does not automatically mean that the ECU is defective.

Start with a fresh FA and SVT read. Confirm the VIN, vehicle platform, I-Level, E-Sys project, and PSdZData compatibility. Then investigate whether a valid CAFD can be detected for the ECU software.

Avoid random CAFD assignments and do not keep sending coding commands when the vehicle’s software state is uncertain. The right answer comes from matching the ECU software, vehicle order, and data set not from choosing the closest-looking file.
