The BMW 7 Series F02 is known for its advanced lighting system, but even a high-end LED headlight can develop a simple wiring problem. One common fault appears as a left-side high beam failure, while the low beam continues to operate with reduced power.
In this case, the vehicle stored fault code 8059A9 – LHM2 L external fan damaged. The diagnostic description suggested that the external cooling fan facing outward from the vehicle was not operating correctly or was reporting a fault.
The final repair was much simpler than replacing the complete headlight. After opening the lamp, a broken wire was found at the cooling fan. Reconnecting the wire restored the high beam function.
This is a useful example of why a fault code should be treated as a starting point rather than an automatic instruction to replace an expensive component.
BMW F02 LED Headlight Fault Symptoms
The customer reported that the left high beam was not working. The main symptoms included:
- Left high beam unavailable
- Low beam still operating
- Reduced low-beam output
- Increased cooling fan noise
- Check Control message displayed in the instrument cluster
- Fault stored in the LHM2 lighting module
The vehicle message was:
Left high beam failure
The BMW F02 uses an LED headlight system that depends on proper communication between the lighting control module, LED components, cooling fans, and vehicle power supply. When the headlight fan stops or sends an incorrect signal, the system can protect the LED unit by reducing output.
That protection strategy explains why the high beam may stop working while the low beam remains available.
Fault Code 8059A9 Explained
The stored code was:
8059A9 – LHM2 L external fan damaged
The fault description indicated that the fan facing toward the outside of the vehicle had failed. The fan was either not running or was reporting an internal fault to the headlight control system.
The fault can be recorded when the following conditions are present:
- Supply voltage is between approximately 9 and 16 volts
- Terminal K1.30 is switched on
- The system monitors the fan operation
- The fault remains present for approximately 100 seconds
This delay is important. The code may not appear immediately after switching on the lights. The lighting system needs time to monitor the fan and confirm that the fault is genuine.
In practical terms, the module is checking whether the fan starts, continues running, and communicates correctly. If the expected feedback is missing, the fault is stored.
Why Does the BMW Reduce Headlight Power?
LED headlights create heat, especially around the LED control electronics and light source. Cooling fans help maintain a safe operating temperature.
When the control module detects a fan problem, it may reduce the available lighting power to prevent overheating. According to the service information for this fault, the low beam can be reduced to power level 2 when the system commands both fans to operate.
This may produce several noticeable results:
- The low beam appears weaker than normal
- The high beam is disabled
- The cooling fan may become louder
- A lighting warning appears on the dashboard
- The vehicle remains driveable, but night visibility is reduced
The car may still be safe to move to a workshop during daylight. However, driving at night with a failed high beam should be avoided whenever possible.
Initial Diagnostic Checks
Before removing the headlight, a few basic checks should be completed.
1. Confirm the exact lighting complaint
Check whether:
- Only the left high beam is affected
- The right high beam works normally
- The left low beam still operates
- The fault appears every time the lights are switched on
- The high beam symbol appears on the dashboard
If both headlights have problems, the cause may be different. A single-side failure usually points more strongly toward the affected lamp, wiring, module, or fan.
2. Check the vehicle voltage
Low voltage can create misleading lighting faults. The battery and charging system should be checked before deeper testing.
The relevant operating range for this fault is approximately 9–16 volts. A weak battery, poor ground, or charging problem can affect communication and fan operation.
3. Scan the lighting module
Use a suitable BMW diagnostic system to scan the lighting control modules. Record all codes before clearing anything.
The fault code 8059A9 specifically directs attention to the external cooling fan connected to the left headlight control system.
4. Inspect the headlight connectors
Look for:
- Water contamination
- Corrosion
- Loose pins
- Damaged locking tabs
- Broken wires near the connector
- Signs of overheating
A visual inspection is often worthwhile because headlight wiring can be exposed to vibration, heat, and repeated temperature changes.
The Actual Cause: A Broken Fan Wire

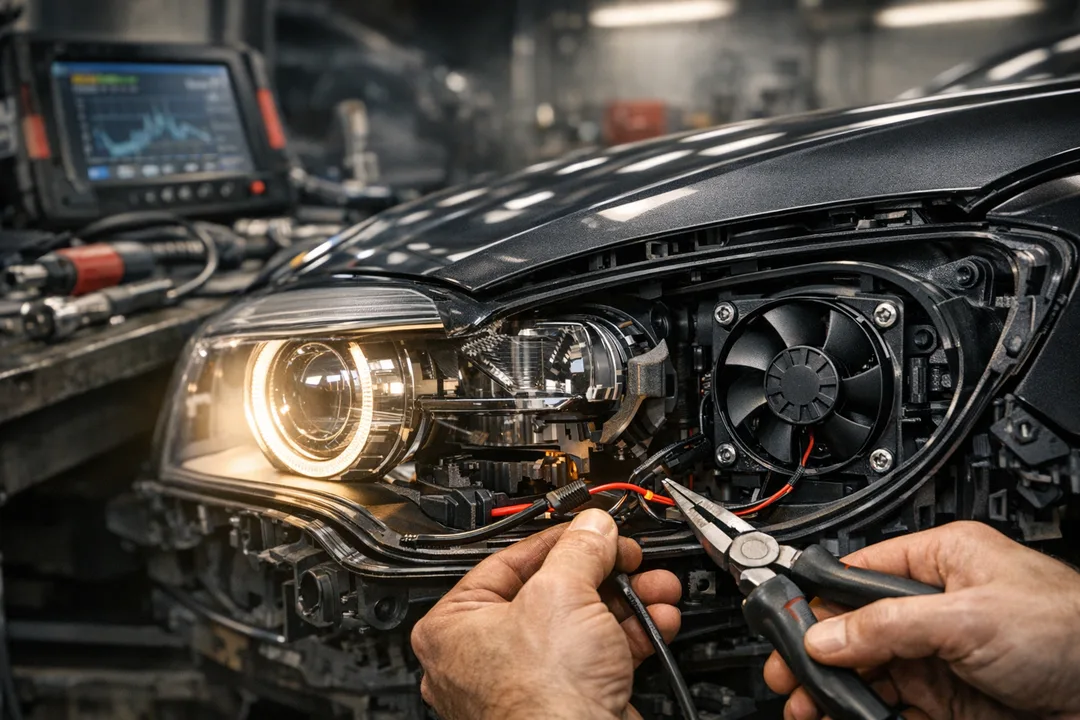

After the headlight was removed and opened, the problem became clear. One wire connected to the cooling fan had broken.
The fan itself was not necessarily defective. The control module saw an open circuit or incorrect fan feedback and correctly reported a fan failure.
This type of fault can be easy to miss from outside the vehicle. The fan may look normal, and the connector may appear firmly installed. The damaged wire may only become visible after the headlight housing is opened.
The broken wire interrupted the fan circuit. As a result, the LHM2 module believed that the fan was damaged.
This is a good reminder that the fault code described the affected system, not necessarily the failed physical part.
Repair Procedure
The repair was completed by reconnecting the broken wire at the cooling fan.
A careful repair should include the following steps:
- Disconnect the vehicle battery according to BMW safety procedures.
- Remove the affected headlight.
- Open the headlight housing using the correct method.
- Locate the external cooling fan and its wiring.
- Inspect the complete wire length for cracks or stretched sections.
- Repair the broken wire using suitable automotive-grade materials.
- Protect the repair from heat, moisture, and vibration.
- Check that the fan rotates freely.
- Reassemble the headlight and ensure the housing is sealed correctly.
- Clear the fault memory and repeat the lighting test.
The wire repair should be mechanically strong, not just twisted together. A poor connection may work temporarily and then fail again due to vibration or heat.
Where possible, use a proper crimp connection, approved repair wire, heat-shrink protection, and secure routing. The repaired wire must not rub against the fan blades or become trapped inside the housing.
Testing After the Repair
After reconnecting the wire, the cooling fan should be tested before final assembly.
Check the following:
- The fan starts when commanded
- The fan runs smoothly
- There is no scraping or grinding noise
- The fan feedback is accepted by the lighting module
- The left high beam operates normally
- The low beam returns to normal output
- The 8059A9 fault does not return
- No new headlight faults are stored
It is best to perform a complete lighting test with the diagnostic tool. Do not rely only on the dashboard message disappearing.
The vehicle should also be checked after a longer test period. Because the fault may be recorded after approximately 100 seconds, the lamp should remain active long enough for the control module to complete its monitoring routine.
Should You Replace the LHM2 Module?
Not immediately.
The repair instructions for this type of fault may include several possible actions:
- Repair the connector or wiring
- Replace the cooling fan
- Swap the left and right LHM2 modules and code them again
- If the fault follows the module, update or replace the LHM2
- If the fault remains with the headlight, inspect or replace the headlight assembly
This testing method helps separate a module fault from a headlight or wiring fault.
If the problem moves when the LHM2 modules are exchanged, the module becomes the main suspect. If the fault remains on the same side, the wiring, fan, or headlight assembly should receive closer attention.
However, module swapping and coding should be performed by a technician familiar with BMW lighting systems. Incorrect coding can create additional faults and may prevent the light from operating correctly.
Common Mistakes During Diagnosis
Replacing the complete headlight too soon
BMW F02 LED headlights are expensive. A broken wire, damaged connector, or failed fan can sometimes be repaired without replacing the full lamp.
Ignoring the cooling fan
A high beam problem may appear to be an LED or lighting-module failure. However, overheating protection can disable the high beam when the cooling system is not working properly.
Clearing the fault without testing
Clearing the code does not repair the cause. If the fan circuit remains open, the fault will return after the module completes its monitoring cycle.
Using a poor wire repair
A weak connection can fail again because the headlight is exposed to heat, vibration, and moisture. The repair must be insulated and secured properly.
Failing to reseal the housing
Once a headlight is opened, the sealing surface becomes extremely important. Moisture inside the lamp can damage the LED electronics and create more serious problems later.
Can You Continue Driving With This Fault?
The vehicle may remain driveable, but the lighting system is not operating normally.
The main safety concern is the loss of the left high beam. Night-time visibility can be reduced, particularly on dark roads without street lighting. The low beam may also operate at reduced power.
If the vehicle must be moved, driving during daylight is the safest option. Arrange a proper repair as soon as possible, especially before regular night driving or long-distance travel.
A working headlight cooling system is important for both lighting performance and the long-term health of the LED electronics.
