If you've ever popped the trunk on a BMW 530Le and seen that bright orange cabling running toward the rear axle, you already know this isn't a car you want to guess your way through. The G38-generation 530Le is BMW's plug-in hybrid version of the 5 Series, and underneath that familiar sedan body sits a genuinely complex high-voltage system — one that mixes a conventional combustion engine with a battery, an electric motor, and a whole network of components most technicians never had to think about a decade ago.

We work on these systems every day, and we get the same question constantly: "What's actually going on under there?" So this guide walks through the 530Le's high-voltage architecture the same way we'd explain it to a technician standing next to the car — component by component, function by function, and with the safety steps that actually matter.

What Counts as "High Voltage" on the 530Le

Before getting into parts, it helps to know what BMW actually classifies as a high-voltage system. Any component driven by more than 60V DC or 30V AC falls into this category. On the 530Le, the plug-in hybrid battery runs at a nominal voltage under 650V DC, and it has to do two jobs at once: power the drivetrain and keep a handful of comfort features running, sometimes even with the engine off.

That second part surprises a lot of owners — yes, your climate control can keep running on battery power alone while the car is parked and charging. That's the high-voltage system doing its job quietly in the background.

The Core Components

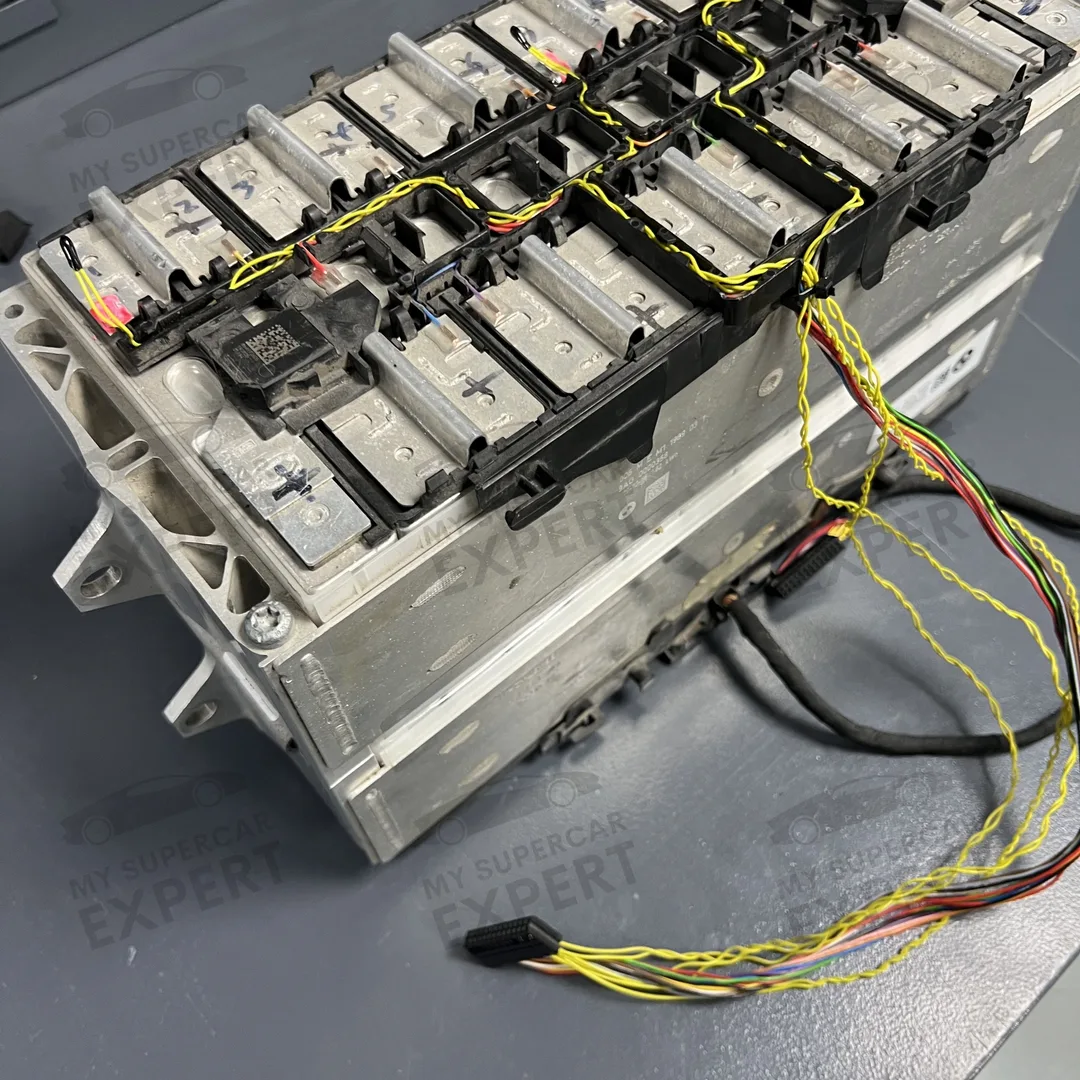

High-Voltage Battery Unit with Storage Management Electronics (SME)

This is the heart of the system. The battery's main job is to pull electricity from the vehicle's network, store it, convert it to chemical energy, and hand it back when needed. It also carries a second responsibility that's just as important: keeping the whole high-voltage system safe, including constant monitoring of the high-voltage contacts.

The battery gets recharged two ways — through regenerative braking (energy recovery while slowing down) and by plugging into an external outlet. On the 530Le, you'll find this unit mounted just ahead of the rear axle, and every connection point is reachable from underneath the vehicle floor. That placement matters for diagnostic work, since it means you're not tearing into the trunk floor for basic checks.

Electric Motor Electronics (EME)

Think of the EME as the electric motor's brain. Its main task is converting the battery's DC voltage — rated at 351V — into three-phase AC to actually drive the motor.

It also works the other way around. When the motor is spinning as a generator instead of a drive unit, like during regenerative braking, the EME flips the conversion and turns that three-phase AC back into DC to recharge the battery. That means the EME needs a bidirectional inverter, capable of acting as both an inverter and a rectifier depending on what the car is doing at that moment.

There's a third job hiding inside the EME housing too: a built-in DC/DC converter that keeps the standard 12V electrical system fed, powered from the high-voltage side. It's a small detail, but it's the reason a healthy 12V battery doesn't necessarily mean the high-voltage side is fine — and vice versa.

The Electric Motor

The 530Le uses a permanent-magnet synchronous motor. It converts stored electrical energy into motion and can drive the car on its own up to roughly 140 km/h in pure electric mode.

Beyond pure EV driving, the motor also assists the combustion engine — giving an extra push during overtaking (BMW calls this the electric boost function) or smoothing out torque during gear changes. Run it in reverse during braking or coasting, and it becomes a generator, sending that recovered energy straight back into the battery.

Mechanically, this hybrid unit is built into the transmission housing itself, sitting in the space that would normally hold a torque converter — a compact, integrated design rather than a bolted-on add-on.

Electric Air Conditioning Compressor

Because this compressor runs off the high-voltage network instead of a belt off the engine, it can deliver full cooling power even when the engine is completely shut off — which is how the car can pre-condition the cabin while parked.

The climate control unit (IHKA) acts as the main controller here, talking to the compressor's electronics over the LIN bus. Inside the compressor housing, you'll find both the electronics and a built-in transformer, cooled by the refrigerant flowing through the system. The transformer's job is straightforward: convert DC to the AC needed to actually spin the compressor.

Electric Auxiliary Heater

Same idea as the AC compressor, but for heat. This works essentially like an electric water heater, using a heating coil to warm the coolant in the heating circuit on demand, cycling on and off as needed rather than running continuously.

The IHKA calculates how much heating power to request — based on inputs like the footwell temperature sensor — and sends that request out over the LIN bus as a percentage.

Convenience Charging Electronics (KLE)

The KLE is what lets your car and the charging station actually talk to each other. Plug in the cable, and the KLE wakes up the relevant control units across the vehicle network. From there, it converts the incoming AC from the charging cable, wallbox, or public station into DC, then routes that power to the EME, which charges the battery.

Charging power comes in as single-phase AC, and the KLE can handle input voltages between 100V and 240V at either 50Hz or 60Hz — which is why the 530Le can charge from a wide range of outlets and stations without complaint. Output is capped at 3.7 kW, which tells you roughly what to expect for a full charge time on a standard setup.

High-Voltage Charging Inlet

Located on the left side of the front fender, the charging inlet locks and unlocks through an electromechanical actuator, controlled by the KLE.

The wiring here is worth knowing if you're chasing a charging fault: the L1 and neutral lines are shielded high-voltage cables ending in a round HV connector at the KLE's AC input, while the PWM signal wire and the charge plug detection wire are simple, separately shielded signal lines. The protective ground conductor is grounded locally near the inlet itself.

Around the inlet, you'll see the charging status ring — a light guide illuminated by red, green, and blue LEDs, controlled by the KLE to show charge state at a glance.

High-Voltage Safety Plug

This is a critical part of the contact monitoring circuit. Pull the safety plug apart from its socket, and the high-voltage contact monitoring circuit opens immediately. That also cuts power to the electromechanical contactors inside the battery unit, which forces the entire high-voltage system to shut down and de-energize.

On the 530Le, you'll find the safety plug behind the trim panel on the right side of the trunk — one of the first things a properly trained tech accesses before doing any hands-on work near the HV components.

How the System Actually Operates

Powering the System On and Off

Startup is a joint effort between the EME and the SME control units, communicating over PT-CAN2, with the EME acting as the lead unit. The system requests activation whenever terminal 15 is on, or when there's a parking climate control or charging request pending.

Activation happens in stages, and there's a reason for that. First, the system checks that the battery and the entire HV network are ready — including confirming the contact monitoring circuit is closed. Then comes the voltage ramp-up: because of the capacitance in the HV circuit (the intermediate circuit capacitors), a sudden connection would cause a current spike big enough to damage both the capacitors and the contactors. So voltage is brought up gradually instead. Only after that does the system close the contactor contacts.

Shutdown works differently depending on urgency. A normal shutdown protects the electrical components and lets the system verify itself — for example, contactor contacts only open once current has dropped close to 0A, otherwise you're opening them under load, which isn't good for anyone.

A fast shutdown is triggered when voltage needs to drop to a safe level immediately. That happens in a few scenarios:

• Accident: Depending on severity, shutdown comes either as a bus command or a forced disconnect through the safety terminal on the 12V battery's positive post. In the second case, the contactors lose power automatically and their contacts open on their own.
• Overcurrent: Voltage and current sensors monitor the HV network continuously. If current gets too high, the SME forces the contactors open.
• Short circuit.
• Critical cell conditions — undervoltage, overvoltage, or excessive temperature at the individual cell level.
• A break in the contact monitoring circuit.

Active and Passive Discharge

HV components store energy in internal capacitors, and that energy has to go somewhere safely once the system shuts down or a fault occurs. There are two discharge paths built in.

Active discharge kicks in on every normal shutdown, draining stored energy through a resistor in under 5 seconds. If the motor is still spinning at that moment, both motor terminals are short-circuited to prevent induced voltage from building up.

If active discharge fails, or if an HV component gets disconnected from the EME while still carrying stored energy, passive discharge takes over as the backup. The motor electronics and the electric AC compressor each have a resistor built in that bleeds off remaining energy within two minutes.

Insulation Monitoring

Insulation monitoring checks whether the resistance between active HV components (like the HV cabling) and ground stays above the required minimum. Drop below that minimum, and you've got a real risk of vehicle parts sitting at a dangerous voltage.

This monitoring lives in the safety box and runs a resistance check roughly every 5 seconds while the HV system is active, using ground as the reference point.

On its own, this method would only catch insulation faults localized to the battery unit. But faults in the HV wiring elsewhere in the car matter just as much — which is why every conductive housing on every HV component is electrically bonded to ground. That's what lets the system catch insulation faults across the entire HV network from one central point in the battery unit.

There are two response levels. Cross the first threshold, and there's no immediate danger to anyone — the system stays active, no warning light appears, but the fault gets logged. Cross the second, lower threshold, and it's logged and a warning message appears, telling the driver to get the car to a workshop.

High-Voltage Power Management

While driving, energy flows from the battery to the HV consumers, and flows back to the battery during regenerative braking. While charging, power management routes incoming energy through the KLE to the battery, and to the electric heater or AC compressor when needed.

Service Safety: What Every Technician Needs to Know

This is the part we can't stress enough, so we're not going to soften it.

Warning: The high-voltage system operates at dangerous voltages with high current flow. Contact with it is life-threatening. Work on the high-voltage system must only be carried out by properly trained personnel, following the hybrid vehicle's operating safety procedures.

As a rule, no repair work is permitted on energized high-voltage components. Before starting any step that touches HV parts, the system voltage must be shut off and secured against being switched back on accidentally.

The standard shutdown sequence looks like this:

1. Charging cable disconnected from the vehicle.
2. Trunk lid open.
3. Vehicle placed into its parked/sleep state (for example, by holding the volume knob down until the car goes to sleep).
4. High-voltage safety plug opened (service disconnect).
5. Safety plug secured against being reinserted.
6. PAD mode activated.
7. Wait for the instrument cluster to display the check-control message "High-voltage system disconnected" (ID 636).

Full step-by-step details belong in the official repair manual's HV shutdown procedure — this summary is a guide, not a replacement for it.

One more thing worth knowing: the entire ground-bonding setup that makes insulation monitoring reliable depends on those connections staying intact. If any electrical connection gets disturbed during service work, it needs to be re-established carefully and correctly, or you risk masking a real insulation fault later.

Why This Matters Beyond the Workshop

Plug-in hybrids like the 530Le aren't going away, and this HV architecture — battery, EME, motor, charging electronics, safety plug, insulation monitoring — is largely the same blueprint BMW carries across its plug-in hybrid lineup. Understanding it isn't just about passing a diagnostic session faster. It's about knowing exactly where the danger zones are, why the car behaves the way it does when you plug it in or brake hard, and what a fault code is actually telling you underneath the surface.

If you're diagnosing a 530Le with a stubborn HV fault, a charging issue, or a check-control message that won't clear, understanding this system end-to-end is what separates a guess from a proper repair.
