The BMW 320i F30 is a popular choice for drivers who want comfort during the week and a little excitement at the weekend. With the B48 four-cylinder turbo engine, the car delivers strong low-end torque, good fuel economy and plenty of tuning potential.

But like any modern turbocharged BMW, it relies on a large number of sensors, actuators and control systems. When one of them reports an unusual reading, the engine control unit can store a diagnostic trouble code, commonly called a DTC.

The BMW 320i F30 B48 uses systems such as direct fuel injection, turbocharging, Double VANOS and Valvetronic. These systems work closely together, so one small air leak or weak ignition coil can sometimes trigger several different fault codes. BMW’s turbocharged four-cylinder engines combine high-pressure injection, variable valve timing and turbocharger control, which is why accurate diagnosis matters more than simply replacing parts. (BMWGROUP)

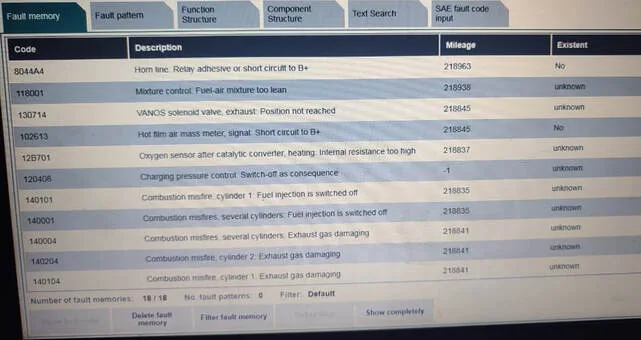

This guide explains several common DTCs associated with the B48 engine and MG1CS003 ECU. The descriptions are useful starting points, but the code alone does not always identify the failed component. A proper scan with BMW ISTA or a capable BMW diagnostic tool should include freeze-frame data, live sensor values and test plans.

Important: Always confirm the exact engine, software version and vehicle market before carrying out repairs. Some F30 320i models use the N20 engine rather than the B48, depending on production date and market. The B48 320i was used in later F30/F31 applications, while some North American F30 320i models used the N20. (PARTSOUQ)

What Is the MG1CS003 ECU?

The MG1CS003 is an engine control unit used on selected modern BMW petrol engines. It manages important functions such as:

• Fuel injection
• Ignition timing
• Turbocharger boost control
• Mixture correction
• Knock detection
• Camshaft timing
• Emissions monitoring
• Torque control
• Engine protection strategies

The ECU does not simply switch parts on and off. It compares expected values with actual sensor readings. If the difference becomes too large, it stores a DTC and may reduce power to protect the engine.

That is why a BMW can sometimes show an air-mass fault, a mixture fault and a boost fault at the same time. The three codes may be linked to one split intake hose or a faulty sensor rather than three separate failures.

1. DTC 8044A4 – Air Mass System

This fault suggests that the ECU has detected an issue with the engine’s air-mass measurement or air-mass control.

Possible symptoms

• Rough idle
• Hesitation when accelerating
• Increased fuel consumption
• Check engine light
• Reduced engine power
• Difficulty starting

Common causes

The most likely causes include:

• Intake air leak
• Dirty or contaminated air-mass sensor
• Loose electrical connector
• Damaged intake pipe
• Incorrectly fitted air filter
• Crankcase ventilation problem

Begin with a visual inspection. Check the airbox, intake pipe, turbo inlet and all hose connections. A smoke test is often more useful than simply looking at the engine bay because small leaks may only open under pressure.

Do not replace the air-mass sensor immediately. First check whether the sensor is receiving the correct power and ground supply. Also make sure the intake system has not been modified in a way that disrupts the sensor’s airflow.

2. DTC 118001 – Mixture Control: Injection

DTC 118001 points toward a fuel-mixture correction problem connected with injection. Depending on the scan tool and software version, the fault may relate to a lean mixture, fuel delivery problem or injection control issue.

What to check

• Fuel pressure
• Fuel injector operation
• Intake leaks
• Oxygen sensor readings
• Air-mass sensor data
• Fuel trims
• Fuel quality
• Electrical supply to the injectors

A weak fuel pump can cause mixture problems, especially under load. A leaking injector can create the opposite condition by adding too much fuel. Spark plugs and ignition coils should also be inspected because a misfire can make the mixture readings appear abnormal.

The best approach is to compare short-term and long-term fuel adaptations. If the engine runs lean mainly at idle, an intake or vacuum leak is a strong possibility. If it runs lean during acceleration, fuel pressure or injector flow becomes more important.

3. DTC 130714 – VANOS Exhaust

This code indicates a problem with exhaust camshaft timing control. VANOS changes camshaft position to improve torque, fuel economy and emissions.

Possible causes

• Dirty or sticking VANOS solenoid
• Low engine oil level
• Incorrect oil grade
• Blocked oil passage
• Camshaft position sensor fault
• Wiring or connector damage
• Mechanical timing problem

Start with the basics. Check the engine oil level and condition. BMW variable valve timing systems depend on clean oil and correct oil pressure. If the oil is old or contaminated, the VANOS solenoid may not respond as it should.

The exhaust VANOS solenoid can sometimes be removed and inspected for debris. However, cleaning a solenoid is not a guaranteed repair. If the solenoid fails an electrical or functional test, replacement may be necessary.

If the fault returns after replacing or cleaning the solenoid, the next steps should include checking camshaft adaptation values and mechanical timing. A timing issue should not be ignored, especially if the engine also has rattling noises or difficult starting.

4. DTC 102613 – Air Mass Plausibility: Air Mass Too High

This fault means the ECU believes the measured or calculated air mass is higher than expected.

It can be caused by:

• Incorrect air-mass sensor readings
• Intake system modifications
• Air leaks after the sensor
• Damaged intake manifold components
• Faulty pressure sensors
• Incorrect throttle or valve operation
• Software calibration issues

A common mistake is assuming that “air mass too high” automatically means the sensor is bad. The ECU calculates expected air flow using several inputs, including engine speed, throttle position, intake pressure and temperature.

Inspect the intake tract carefully. Check clamps, seals and breather hoses. If the vehicle has an aftermarket intake, return it to standard form during diagnosis if possible. Poorly designed intake systems can create turbulent airflow and cause inconsistent sensor readings.

A live-data comparison between air mass, manifold pressure and throttle position can help reveal whether the sensor is reporting unrealistic values.

5. DTC 12B701 – Knock Sensor 3 Signal Implausible

A knock sensor listens for abnormal combustion vibrations. The ECU uses this information to reduce ignition timing when it detects knock.

An implausible knock signal may be caused by:

• Damaged knock sensor
• Loose mounting bolt
• Wiring damage
• Poor connector contact
• Engine vibration
• Incorrect engine assembly
• Severe combustion irregularity

Before replacing the sensor, inspect the wiring and connector. Check that the sensor is mounted correctly and tightened to the manufacturer’s specification. A sensor that is loose or fitted incorrectly may produce unreliable readings.

Also check the engine for real causes of knock, such as:

• Low-quality fuel
• Excessive boost
• Incorrect ignition timing
• Overheating
• Carbon deposits
• Lean mixture
• Faulty spark plugs

This is particularly important on modified vehicles. A knock sensor code should never be treated as a minor electrical issue until the fuel, ignition and boost systems have been checked.

6. DTC 120408 – Charging Pressure Control: Deviation Too High

This is one of the more important faults on a turbocharged B48 engine. It indicates that actual boost pressure is not matching the ECU’s target.

Common causes

• Split charge-air hose
• Loose boost pipe
• Wastegate problem
• Boost control solenoid fault
• Turbocharger actuator issue
• Intercooler leak
• Faulty pressure sensor
• Restricted exhaust system
• Software or calibration problem

The first inspection should be a pressure or smoke test of the complete charge-air system. Pay attention to the turbocharger outlet, intercooler connections and throttle-body hose.

A boost leak may not be visible at idle. The system can appear fine while the engine is stationary but lose pressure under acceleration. That is why a proper pressure test is more reliable than a quick visual check.

If the hoses are sound, inspect the wastegate actuator and boost control system. A turbocharger that cannot control the wastegate correctly may cause underboost, overboost or repeated limp-mode events.

Avoid continuing to drive hard while this code is active. If the engine is overboosting, the ECU may be trying to protect the engine from excessive cylinder pressure.

7. DTC 140101 – Misfire Detection, Cylinder 1

This code identifies a misfire on cylinder 1. A misfire occurs when the air-fuel mixture does not burn correctly.

The quickest practical test is to swap the ignition coil from cylinder 1 with another cylinder. Clear the codes and monitor the engine again.

• If the misfire moves, the coil is likely faulty.
• If it stays on cylinder 1, inspect the spark plug.
• If the plug and coil are good, test the injector, compression and wiring.

Other possible causes include:

• Vacuum leak near cylinder 1
• Injector blockage
• Low compression
• Valve sealing problem
• Carbon buildup
• Incorrect engine timing

A flashing engine warning light usually means the misfire is severe enough to damage the catalytic converter. Stop driving aggressively and diagnose the problem promptly.

8. DTC 140004 – General Misfire Detection

This is a general misfire code. It does not always identify one specific cylinder.

Possible causes include:

• Worn spark plugs
• Weak ignition coils
• Fuel pressure problems
• Intake leaks
• Injector faults
• Low battery voltage
• Poor-quality fuel
• Engine timing issues

Check whether additional cylinder-specific codes are stored. They often provide the most useful clue.

If several cylinders misfire together, look for a shared cause such as low fuel pressure, a major air leak, incorrect valve timing or an electrical supply problem. Replacing all four coils without testing may solve the issue, but it can also waste money if the real fault is elsewhere.

9. DTC 140001 – Random or Multiple Cylinder Misfire

Random misfires across several cylinders usually suggest a system-wide issue rather than one defective spark plug.

Inspect:

1. Battery voltage and charging voltage
2. Fuel pressure
3. Intake and boost leaks
4. Spark plugs and ignition coils
5. Injector balance
6. Camshaft timing
7. Engine compression
8. ECU software and adaptations

Low voltage can create strange BMW fault combinations, particularly after a weak battery or poor jump-start. Always test the battery and charging system before chasing complicated electronic faults.

If the vehicle has recently been tuned, return to the original software where possible. A calibration that requests more boost or ignition advance than the fuel and hardware can safely support may contribute to knock and misfire faults.

10. DTC 140204 – Misfire Detection: Low Fuel Level

This code suggests that misfire detection occurred while the fuel level was low. A low tank can allow the fuel pump to draw air during hard cornering, braking or acceleration.

Recommended checks

• Add enough fuel and retest
• Inspect the fuel pump
• Check the fuel filter and pickup
• Test fuel pressure under load
• Inspect the fuel tank for contamination
• Review the conditions stored in freeze-frame data

Do not assume the fuel level is the only problem. If the code returns with a full tank, the fuel pump or fuel delivery system may be weakening.

11. DTC 140104 – Misfire Detection and EGR-Related Operation

This fault may be linked to exhaust-gas recirculation or related emissions control operation. Depending on the vehicle configuration and scan-tool translation, the wording may vary.

Inspect:

• EGR components, where fitted
• Intake passages
• Electrical connectors
• Vacuum or pressure hoses
• Throttle operation
• Air-mass readings

A valve that sticks open can upset the air-fuel mixture and cause unstable combustion, especially at idle or during light acceleration. Carbon deposits can also affect airflow and valve movement.

Because BMW diagnostic translations can differ between generic scanners and BMW-specific software, confirm the fault description using ISTA or another professional BMW platform before ordering parts.

12. DTC 118002 – Mixture Control: Injection Too Rich

This code indicates that the ECU has detected an excessively rich air-fuel mixture.

Possible causes include:

• Leaking fuel injector
• Excessive fuel pressure
• Faulty air-mass sensor
• Failed oxygen sensor
• Restricted air filter
• Faulty coolant-temperature sensor
• Evaporative-emissions issue
• Incorrect ECU calibration

A rich mixture may produce black smoke, poor fuel economy, rough running and a strong fuel smell. In severe cases, unburned fuel can damage the catalytic converter or dilute the engine oil.

Check the spark plugs. A plug that is unusually dark or wet can help identify the affected cylinder. Injector leak-down testing is also valuable, particularly if the engine is difficult to start after sitting.

Do not replace oxygen sensors based only on the code. The sensor may be correctly reporting a rich mixture caused by an injector, fuel-pressure problem or air-metering fault.

A Better Diagnostic Order for B48 DTCs

When several of these codes appear together, use a logical order:

1. Save the fault data

Record the mileage, engine temperature, RPM, load and fuel trims before clearing the codes.

2. Check battery voltage

Low voltage can create misleading faults and communication problems.

3. Inspect the intake and boost system

Look for split hoses, loose clamps and damaged seals.

4. Check ignition components

Inspect the spark plugs and swap-test the coils.

5. Test fuel pressure

Confirm that pressure remains stable at idle and under load.

6. Inspect VANOS components

Check oil level, oil quality, solenoids, wiring and camshaft adaptations.

7. Use live data

Compare air mass, intake pressure, fuel trims, lambda values, ignition timing and misfire counters.

8. Perform component tests

Use smoke testing, pressure testing, injector testing and compression testing rather than guessing.

9. Clear codes only after repairs

A code disappearing temporarily does not prove the problem has been fixed. Complete the relevant drive cycle and confirm that the fault does not return.
