If you’ve ever stared at a black box under the dash and wondered “is this ECU actually good or is it about to leave me stranded?”, you’re in the right place. I’m talking real bench testing — the kind we do every week in the shop when a customer rolls in with weird idle, no-start, or after a bad flash.

I’ve been tuning and fixing cars for over 15 years. I’ve killed a couple ECUs the hard way (don’t ask) and learned every lesson the expensive way. Today I’m walking you through exactly how I bench test an ECU step by step so you can do it safely at home or in your garage without turning a $1500 computer into a paperweight.

This isn’t theory. This is the exact process we use in 2026.

Why Bench Test an ECU Instead of Just Plugging It In the Car?

Simple. The car has a hundred other things that can mess with your diagnosis — bad grounds, weak battery, shorted sensors, wiring gremlins. On the bench you control everything. Power, grounds, signals. You isolate the ECU. You know for sure if the computer itself is healthy before you waste hours chasing ghosts in the car.

Plus, if you’re flashing tunes or cloning, bench testing lets you verify the ECU is solid first. Saves headaches.

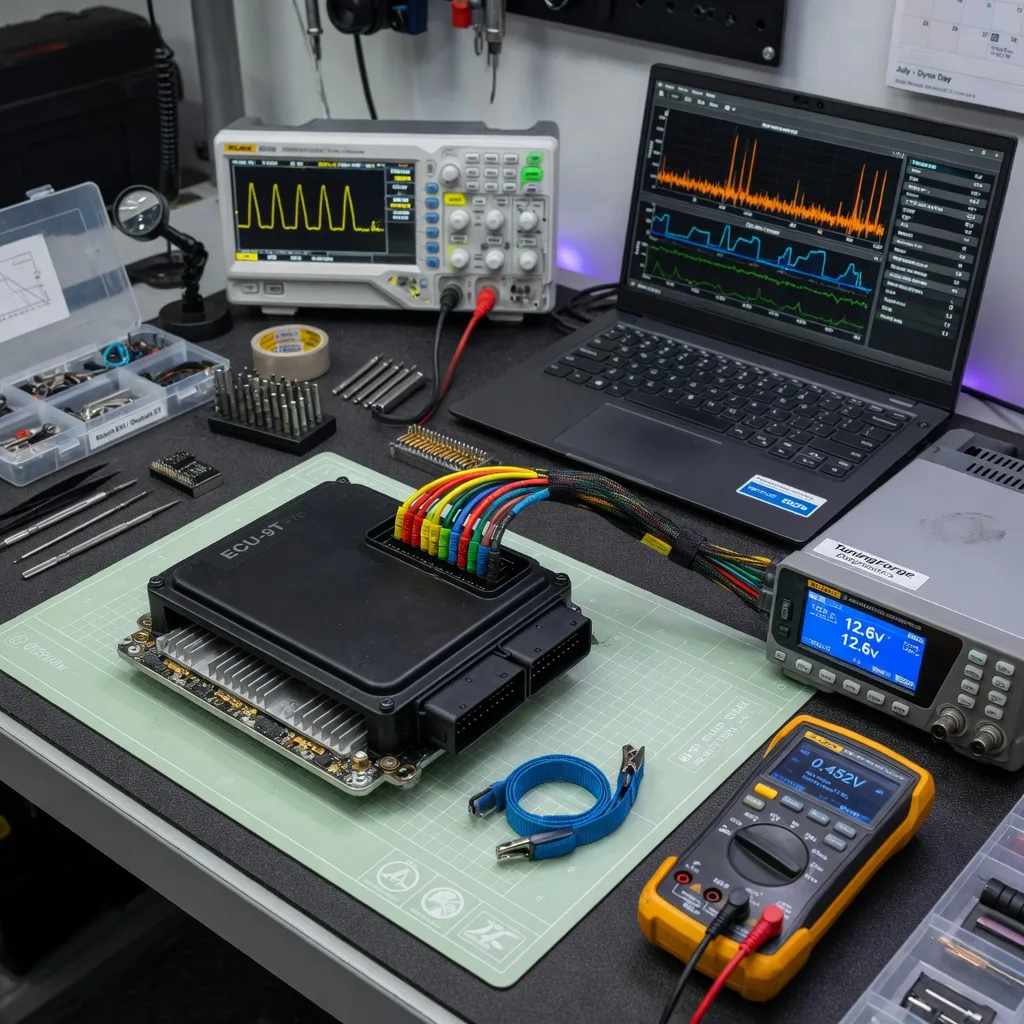

Tools You Actually Need (No Fancy Crap)

Here’s my real-world list. Nothing exotic:

• Good 12-14V bench power supply (adjustable, at least 5-10 amps, with current limiting)
• Multimeter (Fluke or decent digital one)
• Oscilloscope (even a cheap USB one helps a lot)
• Breakout box or pin-out adapter for your specific ECU (or just good quality jumper wires and the factory pinout)
• Laptop with the right software (HP Tuners, EcuTek, WinOLS, manufacturer tools, whatever you use)
• Anti-static mat and wrist strap (seriously, static kills these things)
• Proper connectors / pigtails for your ECU
• Load resistors or dummy loads if you want to simulate injectors/coils
• Good lighting and a clean workbench

That’s it. You don’t need a $10k setup.

Step 1: Identify Your Exact ECU and Get the Pinout

First things first. Look at the label on the ECU. Write down the part number, hardware number, software version if listed.

Then grab the official pinout. I keep PDFs for every common ECU we see — Bosch ME7, MED17, Siemens, Denso, Continental, Delphi, the lot. You can usually find them on forums, AllData, or manufacturer service info.

Print it or have it open on a second screen. Label your wires. Color code them. Red for power, black for ground, etc. Mistakes here fry pins.

Step 2: Prepare the Bench Safely

Lay down the anti-static mat. Put on the wrist strap and clip it to ground.

Set your power supply to 12.6–13.8V. Most ECUs like to see real battery voltage. Start with current limit around 2-3 amps so if something shorts it doesn’t dump 20 amps into the board.

Connect main power and ground first. Most ECUs have multiple power pins (constant, ignition switched) and several grounds. Connect them all properly according to the pinout. Don’t skip the grounds — bad ground = weird behavior or damage.

Step 3: Power It Up the Right Way

Double-check polarity. Triple-check.

Turn on the power supply. Watch the current draw. A healthy ECU usually pulls between 0.3A and 1.5A at idle (no loads). If it jumps to 5A+ immediately, kill power. You have a short.

Listen. Some ECUs click relays inside. That’s normal.

Feel it after 30 seconds. Should be slightly warm, never hot.

Step 4: Check Basic Power and Communication

Probe the 5V reference pins. Should be rock solid 4.9–5.1V.

Check sensor grounds.

Now try to talk to it. Connect your OBD or direct K-line/CAN/boot mode cables.

Open your software. Can you read the ECU ID? Part number? Software version? Immo status?

If it communicates cleanly, big green flag. If it doesn’t, check your wiring again, try different protocols, or the ECU might be bricked or hardware dead.

Step 5: Simulate Key Sensors and Loads (This Separates Pros from Amateurs)

This is where real bench testing happens.

• Connect a throttle position sensor or pot to the TPS pins and sweep it. Watch live data.
• Simulate crank and cam signals if your tool can (or use a signal generator). Many of us use a simple Arduino or dedicated simulator for this.
• Put resistors across injector drivers to load them and check if the drivers switch.
• Check coil drivers the same way.
• Monitor 5V refs under load.

Watch for dropouts, weird voltage spikes, or drivers that don’t fire.

I always log a few minutes of data while gently heating the ECU with a heat gun (carefully) and then cooling it. Intermittent failures love temperature changes.

Step 6: Flash and Verify (If You’re Tuning)

If the ECU passes basic tests, now you can safely read the full dump, write a tune, or clone.

After writing, power cycle it a few times on the bench. Confirm it still communicates and the new software is happy.

Some ECUs need a “first start” procedure or immo adaptation even on the bench with the right tools.

Step 7: Final Health Checks Before It Goes Back in the Car

• Measure standby current (should be very low, milliamps)
• Check all outputs again
• Inspect the board under magnification if you opened it (look for cracked solder, burnt components, water damage, corrosion)
• Clean the connectors with contact cleaner

Only when everything checks out do I put it back in the vehicle.

Common Mistakes That Cost People Money

1. Wrong voltage or reverse polarity — dead ECU in seconds
2. Missing grounds
3. No current limiting on the power supply
4. Static shock
5. Forcing connectors
6. Testing with the car battery and a bunch of unknown wiring still attached
7. Skipping the pinout and guessing

I’ve seen every one of these. Don’t be that guy.

Real Talk From the Shop

Last month a guy brought in a Golf R that kept dying. Everyone told him the ECU was bad. We bench tested it — perfect. Turned out a chafed wire under the intake was shorting the 5V ref when the engine got hot. Bench testing saved him $1800 and a week of downtime.

Another time an ECU looked fine in the car but on the bench the CAN transceiver was flaky. Would have been a nightmare to diagnose installed.

This process works. It’s how we stay out of trouble and deliver solid results for customers.

Quick Checklist You Can Print

• [] Correct pinout in hand
• [] Anti-static protection
• [] Power supply set and current limited
• [] All powers and grounds connected
• [] Healthy current draw
• [] 5V refs good
• [] Communicates with tool
• [] Sensors and drivers respond
• [] Temperature cycle test
• [] Flash verified
• [] Final inspection

Follow this and you’ll catch 95% of ECU problems before they waste your day.

That’s the real process we use every single week. No shortcuts, no magic, just careful work.

If you’re deep into tuning, mastering bench testing will level you up faster than almost anything else. You’ll trust your flashes more, diagnose faster, and sleep better knowing the computer is solid.

Now go set up that bench and start testing. Your future self (and your customers) will thank you.

Drive safe and keep the boost clean.
