If you’re reading this with a BMW that’s suddenly making weird noises from the engine bay and the emissions warning light is staring at you, I feel you. I’ve been under these cars more times than I can count, and the B57 2DDF00 code is one of those “gotcha” faults that looks scary on the scanner but often comes down to one simple missing bolt.
2DDF00 stands for: Air mass system, plausibility: measured air mass too high compared to calculated air mass (with inactive exhaust gas recirculation). In plain English, the car thinks it’s sucking in way more air than it should. On the B57D30O2 and B57D30T2 engines in the G30 5 Series, G31 Touring, and G32 6 Series Gran Turismo, this almost always traces back to a damaged charge air hose.
Why This Happens (The Real Story from the Workshop)

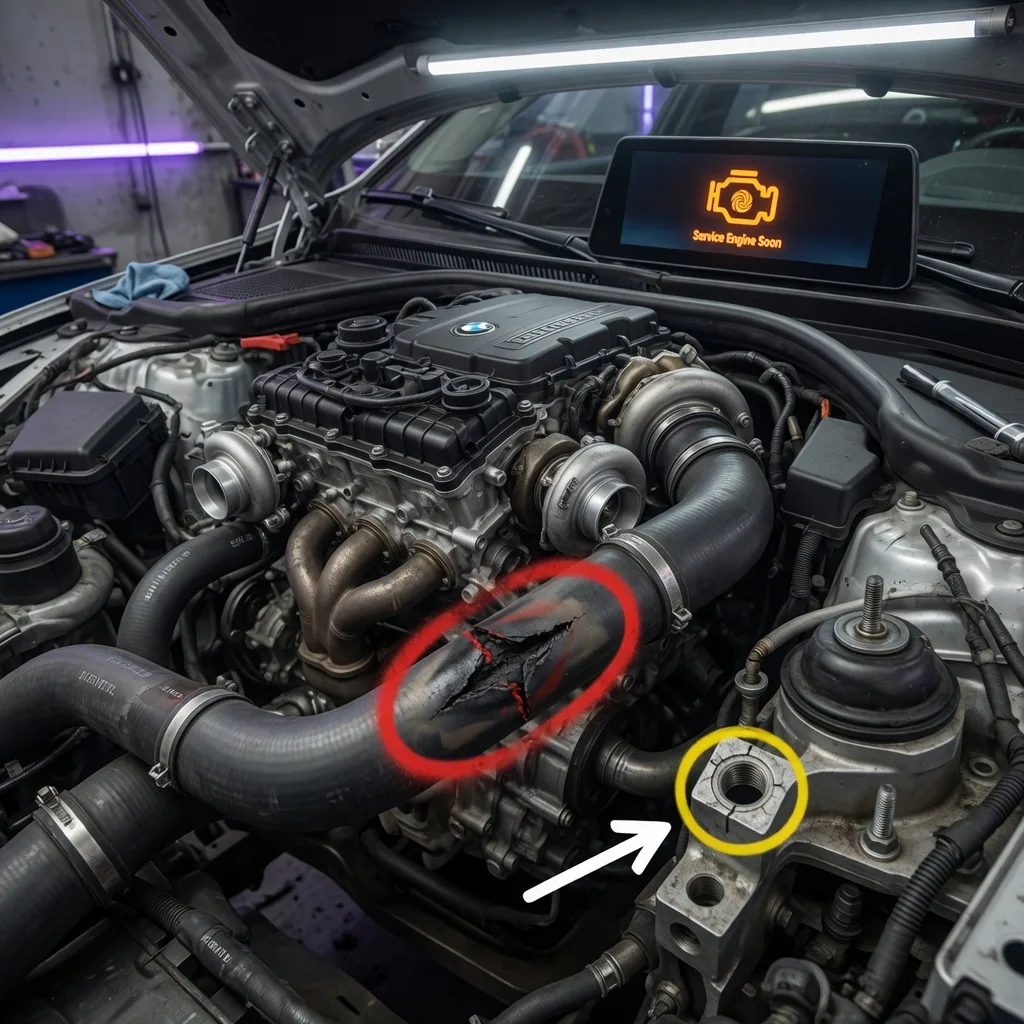

Picture this: you’re driving along, maybe hitting a few bumps or just accelerating hard, and the engine starts lifting slightly because a bolt between the engine support bracket and the engine mount has worked itself loose or gone missing completely. That little bit of movement is enough to stress and eventually tear or pull the charge air hose. Once the hose is damaged, unmetered air gets in (or the system reads wrong), the mass air flow numbers don’t match the calculated values, and boom – 2DDF00 plus the emissions light and those rattling or whistling noises from the engine compartment.
I’ve seen this exact scenario on multiple G30s and G31s. The car might feel a bit rough, power can feel off, and that light comes on. Ignore it and you risk more expensive turbo or intercooler damage down the road.
Affected Models – Double-Check Yours
This hits:
- BMW G30 (5 Series)
- BMW G31 (5 Series Touring)
- BMW G32 (6 Series GT)
With the B57D30O2 or B57D30T2 engines. If your car matches and you’re seeing the code with engine bay noises + emissions light, keep reading – this is almost certainly your issue.
Step-by-Step Diagnosis and Repair (Do It Right the First Time)
- Scan and confirm
- Pull the codes. 2DDF00 is the star. Clear it temporarily if you want, but it will come back until the root cause is fixed.
- Visual check under the hood
- Look at the charge air hose (the big one running from the turbo/intercooler area). Any cracks, splits, loose clamps, or rubbing marks? That’s your smoking gun. Then go lower and inspect the engine mount area on the side where the support bracket meets the mount.
- The bolt check – this is the key
- There should be a bolt (part number 07 11 9 908 507) holding the engine support bracket to the engine mount. If it’s missing or loose, the engine can lift under load or on bumps. That’s what damages the hose.
- Important: If the bolt is gone, you must install two new bolts. Don’t reuse the old one even if you find it lying nearby.
- Installation the proper way
- You need Loctite 243 (part number 83 19 2210 339).
- Apply three drops of Loctite 243 to the front third of the bolt threads.
- Rotate the bolt 180 degrees and apply three more drops.
- Install both new bolts.
- Tightening torque: 100 Nm.
- After tightening, the Loctite needs to cure for 90 minutes. Ideally, don’t drive the car for a full 24 hours. I know it’s annoying, but this is non-negotiable if you want the bolts to stay put. PLEASE ADHERE TO THIS!
- Microencapsulated screws update
- BMW started releasing microencapsulated versions of these bolts from the Group Parts Distribution Center around March 2023. If your dealer has them now (and in 2026 they definitely should), grab those – they’re even better.
- Extra step for xDrive (all-wheel drive) cars
- If you found a missing bolt, also inspect the front left output shaft for wear marks or damage. Replace it if anything looks off. The extra movement from the loose engine can wreck that shaft over time.
Once the bolts are in and cured, replace the damaged charge air hose (use OEM or a high-quality equivalent – cheap ones fail fast). Clear the codes, take it for a proper test drive, and the 2DDF00 should stay gone. The noises disappear and the emissions light stays off.
Real-Life Tips That Separate a Good Fix from a Great One
- Always work with the engine cold when checking mounts.
- Use a good torque wrench – 100 Nm is not a “feel it” job.
- After the repair, monitor live data for air mass values to confirm everything is reading correctly.
- If you’re already in there, check the other mount bolts and the charge air system clamps while you’re at it. Prevention is cheaper than another visit.
I’ve fixed dozens of these. The cars come back quiet, the owners are happy, and the code never returns when the Loctite and torque are done properly. That’s the difference between a quick patch and a lasting repair.
Why This Matters for Your BMW’s Longevity
A damaged charge air hose doesn’t just throw a code – it messes with boost control, fuel trims, and emissions. Left alone, it can lead to limp mode, higher fuel use, or even DPF/SCR headaches on these diesels. Catching the missing bolt early saves you serious money.
