When an Audi A6 develops transmission fault codes, the problem is not always caused by a failed gearbox or a damaged mechatronic unit. In some cases, a small sealing or filter component can create enough pressure loss to affect gear engagement and trigger multiple transmission warnings.
This Audi A6 repair case involved two specific fault codes:
- P17D400: Active/static fault – mechanical malfunction of valve 3 in sub-transmission 1
- P187A00: Passive/intermittent fault – gear actuator 1 did not complete the engagement process successfully
At first, these codes may point technicians toward a faulty solenoid, valve body, gear actuator, or even an internal transmission failure. However, after removing and inspecting the valve body, the real cause was found: a cracked filter gasket that allowed hydraulic pressure to escape.
Replacing the damaged filter gasket restored the required pressure, and the transmission faults were resolved.
What Do the Audi A6 Fault Codes Mean?
P17D400: Mechanical Fault in Valve 3
The P17D400 code indicates that the transmission control system detected a mechanical problem involving valve 3 in sub-transmission 1.
In simple terms, the transmission computer commanded the valve to operate, but the expected hydraulic or mechanical response was not achieved. This does not automatically mean the valve itself is broken.
A mechanical valve fault can be caused by several issues, including:
- A sticking valve
- Contaminated transmission fluid
- A damaged solenoid
- Low hydraulic pressure
- Internal leakage
- A cracked sealing component
- Restricted fluid flow
- A valve body problem
This is why replacing a solenoid immediately is not always the best approach. The actual cause should be confirmed through inspection and pressure testing where possible.
P187A00: Gear Engagement Process Unsuccessful
The P187A00 fault code means that gear actuator 1 did not complete the engagement process successfully.
The transmission control unit expects a specific movement and pressure response during gear selection. If the actuator cannot build or maintain enough hydraulic pressure, the gear may not engage correctly.
Depending on the condition of the vehicle, the driver may notice:
- Delayed gear engagement
- Harsh shifting
- Transmission warning messages
- A gearbox stuck in one gear
- Difficulty selecting reverse or drive
- Reduced-power or limp-home mode
- Intermittent transmission faults
- A noticeable pause when moving away from a stop
An intermittent code can be particularly difficult to diagnose. The vehicle may drive normally during one test drive and then show the same fault again later. This often happens when a damaged seal or gasket leaks only under certain temperature or pressure conditions.

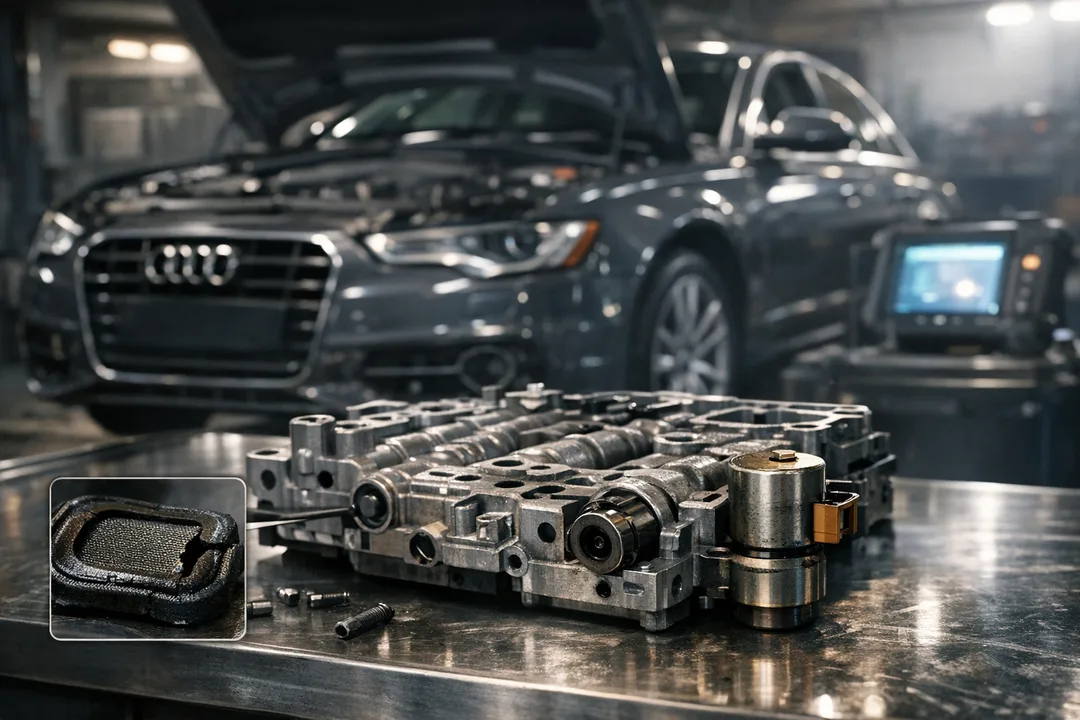

The Real Cause: A Cracked Filter Gasket
During the repair, the transmission valve body was removed for inspection. The valve body contains hydraulic passages, valves, solenoids, filters, and sealing components that control how transmission fluid is directed through the gearbox.
After the valve body was dismantled, the damaged area became clear. The problem was located around a filter gasket.
The gasket had cracked. Although this is a relatively small part, it plays an important role in maintaining the correct hydraulic pressure inside the transmission system.
When the gasket cracked, transmission fluid could bypass the intended passage. This resulted in insufficient pressure reaching the relevant valve and gear actuator. The control unit then detected that the commanded valve movement and gear engagement had not completed correctly.
This explains why the vehicle stored both a valve-related code and a gear-engagement code.
The fault was not simply an electrical issue. The solenoid may have been receiving the correct command, but the hydraulic system could not produce the pressure required for proper operation.
Why Low Transmission Pressure Can Create Several Fault Codes
Modern Audi transmissions use a combination of electronic control and hydraulic pressure. The transmission control unit monitors speed sensors, actuator positions, solenoid operation, pressure behavior, and clutch engagement.
If pressure drops, the system may report a fault in the component that failed to respond. This can sometimes make the diagnosis appear more complicated than it really is.
For example, the control unit may command a solenoid to open or close. If the filter gasket is leaking, the fluid pressure may be too low to move the valve correctly. The control unit sees that the expected result did not happen and may store a mechanical valve fault.
At the same time, the related gear actuator may fail to complete its engagement cycle. This creates a second fault code.
That is why a damaged seal, gasket, or filter interface can produce symptoms that appear to involve several expensive transmission components.
Repair Procedure
The repair process followed a careful inspection of the transmission valve body.
1. Fault Code Diagnosis
The stored transmission fault codes were read using suitable diagnostic equipment. The technician confirmed the presence of P17D400 and P187A00 and reviewed the associated transmission data.
A proper diagnosis should not stop at reading the fault codes. The codes provide direction, but they do not always identify the failed part directly.
2. Valve Body Removal
The valve body was removed from the transmission for closer inspection.
This step requires care because the valve body contains precision components and narrow hydraulic passages. Dirt, metal particles, or incorrect handling can create additional problems during reassembly.
3. Solenoid and Valve Inspection
The relevant solenoid valve was removed and opened for inspection. The valve itself was checked for signs of contamination, sticking, mechanical damage, or abnormal wear.
At this stage, it was important not to assume that the solenoid was the main cause simply because the diagnostic code mentioned a valve malfunction.
4. Filter Gasket Inspection
The filter and gasket area were examined closely. The cracked filter gasket was identified as the source of the hydraulic pressure loss.
The damaged gasket prevented the transmission from maintaining the pressure needed for reliable operation of valve 3 and gear actuator 1.
5. Replacement of the Damaged Component
The cracked filter gasket was replaced with a suitable replacement part. The surrounding surfaces and related components were cleaned and inspected before reassembly.
A sealing surface must be clean and undamaged. Even a small amount of dirt or an incorrectly seated gasket can cause another pressure leak.
6. Reassembly and Testing
After the valve body was reassembled and installed, the transmission system was checked. The stored fault codes were cleared, and the vehicle was tested under different driving conditions.
The transmission was monitored during gear selection, take-off, upshifts, downshifts, and reversing. After the repair, the original faults did not return and gear engagement operated normally.
Why Replacing the Solenoid Alone May Not Solve the Problem
A common mistake with transmission fault codes is replacing the component named in the code without checking the complete hydraulic system.
In this case, replacing the solenoid without repairing the cracked gasket may not have solved the problem. The solenoid could operate correctly, but the leaking gasket would still prevent the system from reaching the required pressure.
This is an important point for Audi A6 owners. A fault code that mentions a valve or actuator does not always mean that the valve or actuator needs to be replaced.
Before fitting expensive parts, a technician should consider:
- Is the transmission fluid level correct?
- Is the fluid in good condition?
- Is the fluid contaminated?
- Are the filters blocked?
- Is the valve body clean?
- Are the gaskets and seals intact?
- Is hydraulic pressure within specification?
- Does the solenoid respond correctly?
- Are the electrical connections secure?
- Does the actuator complete its movement?
A structured diagnosis can prevent unnecessary parts replacement and reduce repair costs.
Symptoms That May Appear With This Problem
A cracked filter gasket may not produce the same symptoms on every Audi A6. The exact behavior depends on the transmission type, operating temperature, fluid condition, and how severe the leak has become.
Common symptoms may include:
- A delay when selecting drive
- A delay when selecting reverse
- Rough or uncertain gear changes
- Transmission warning lights
- Faults that appear after the vehicle warms up
- Intermittent limp mode
- Gear selection failures
- Shifting problems during stop-and-go driving
- A fault that disappears after restarting the vehicle
- Several related transmission codes stored together
When a problem is intermittent, it is useful to record when it happens. Note the transmission temperature, driving conditions, selected gear, and whether the vehicle had just been started or driven for a long period.
This information can help the technician reproduce the fault.
Can You Continue Driving With P17D400 and P187A00?
Driving with transmission faults is not recommended for longer than necessary.
If the vehicle still moves normally, it may be possible to drive carefully to a professional repair facility. However, continuing to use the vehicle for weeks or months can increase the risk of further damage.
Low hydraulic pressure can lead to:
- Clutch slip
- Excessive heat
- Poor lubrication
- Incorrect gear engagement
- Increased wear inside the transmission
- Additional damage to the valve body or mechatronic unit
If the vehicle refuses to select drive or reverse, repeatedly enters limp mode, or produces severe jerking, it should be recovered rather than driven.
Important Diagnostic Checks
A reliable repair should include more than clearing the codes. The following checks are useful when diagnosing P17D400 and P187A00:
Transmission Fluid Condition
The fluid should be checked for the correct level, color, smell, and contamination. Burnt fluid or visible debris may indicate additional internal wear.
Electrical Connections
The solenoid wiring, connectors, and transmission harness should be checked for corrosion, loose pins, damaged insulation, or poor contact.
Valve Body Condition
The valve body should be inspected for contamination, sticking valves, damaged bores, and blocked passages.
Filter and Sealing Surfaces
Filters, gaskets, O-rings, and sealing plates should be checked carefully. A small crack may be difficult to see unless the component is removed and examined closely.
Hydraulic Pressure
Where equipment and specifications are available, hydraulic pressure testing can help confirm whether the transmission is losing pressure.
Adaptation and Calibration
After valve body or transmission work, the correct adaptation or basic setting procedure may be required. The exact procedure depends on the transmission model and vehicle configuration.
Repair Result
In this Audi A6 case, the damaged filter gasket was the source of the problem.
Once the cracked gasket was replaced:
- Hydraulic pressure was restored
- Valve operation returned to normal
- Gear actuator engagement completed correctly
- P17D400 was resolved
- P187A00 was resolved
- The transmission operated normally during testing
This repair demonstrates why a detailed inspection is essential. A small damaged gasket can imitate a much larger transmission failure.
