The ATE MK26 ABS unit is an important part of many modern braking and stability systems. When it works correctly, it helps prevent wheel lockup, supports emergency braking and keeps the vehicle stable when road conditions become difficult.

When the unit develops a fault, the symptoms can be worrying. ABS, ESP, traction control and brake warning lights may appear together. Some drivers also notice unusual pump noises, communication errors or a change in braking performance.

Replacing the complete ABS unit is often expensive. In many cases, the original ATE MK26 module can be properly diagnosed and repaired, saving both time and money.

This guide explains the most common ATE MK26 ABS problems, the warning signs to look for, typical fault codes and the correct repair process.

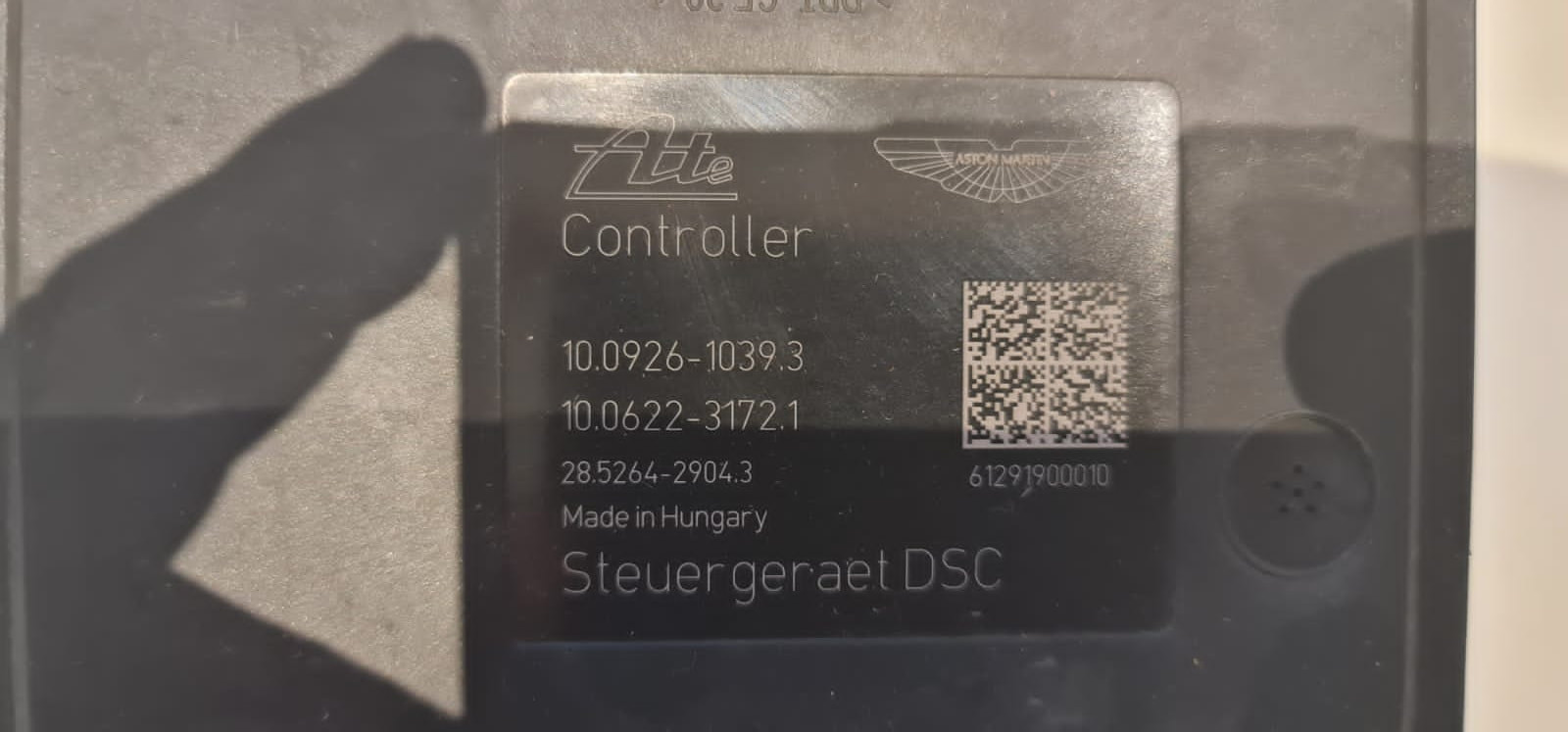

What Is the ATE MK26 ABS Unit?

The ATE MK26 is an integrated ABS and ESP control unit used in a range of vehicles. It combines electronic control with hydraulic braking components to monitor wheel speed, brake pressure and vehicle movement.

The system normally includes:

• ABS electronic control module
• Hydraulic valve block
• Electric pump motor
• Pressure sensors
• Solenoid valves
• Brake pressure circuits
• Communication connections to other vehicle control modules

The ABS system constantly receives information from wheel speed sensors and other vehicle sensors. It then uses this data to decide whether individual wheels are beginning to lock or lose traction.

The ESP function goes further by helping control vehicle stability. If the vehicle begins to understeer, oversteer or lose grip, the system can apply braking force to individual wheels and reduce engine torque when necessary.

Because the ATE MK26 is connected to several vehicle systems, one internal fault can trigger multiple warning lights at the same time.

Common Symptoms of an ATE MK26 Failure

The symptoms may vary depending on the vehicle model and the exact failure inside the unit. The most common signs include:

ABS Warning Light

The ABS warning light may remain illuminated after the engine starts. This usually means the vehicle has detected a fault in the anti-lock braking system.

The standard braking system may still operate, but the ABS function could be disabled. This means the wheels may lock during hard braking, particularly on wet, icy or loose roads.

ESP or Traction Control Warning Light

An ATE MK26 problem can also activate the ESP, ESC or traction control warning light. On some vehicles, the dashboard may display messages such as:

• ESP unavailable
• Traction control fault
• Electronic stability control malfunction
• Brake assist unavailable
• Check ABS system

These warnings should not be ignored because they may indicate that the vehicle has lost part of its active safety support.

ABS Pump Motor Noise

A damaged or worn pump motor may produce unusual sounds. You might hear:

• Clicking
• Grinding
• Buzzing
• Whining
• Repeated pump activation

A pump motor that runs continuously or activates when it should not may be suffering from an internal electrical or mechanical fault.

Loss of Communication

A failed ATE MK26 control module may stop communicating with the vehicle’s diagnostic system. This can lead to a “no communication” fault during scanning.

Communication loss may be caused by:

• Internal circuit board damage
• Corrosion
• Poor power supply
• Damaged wiring
• Bad ground connection
• Failed communication components
• Water contamination

A communication error does not always mean the entire ABS unit must be replaced. The power supply and wiring should be checked before condemning the module.

Reduced Braking Assistance

Some faults may affect the hydraulic operation of the ABS unit. Drivers may notice:

• A harder brake pedal
• A softer brake pedal
• Longer stopping distances
• Uneven braking
• Brake pedal vibration
• Reduced brake assist

Any noticeable change in braking performance should be treated seriously. The vehicle should be inspected before continued driving.

Common ATE MK26 ABS Unit Problems

1. ABS Pump Motor Failure

The electric pump motor is responsible for building hydraulic pressure when the ABS or stability system is activated.

Over time, the motor can wear out. Internal brushes, bearings, electrical contacts or the motor winding may become damaged. Low battery voltage and poor electrical connections can also place additional strain on the motor.

Typical symptoms include:

• ABS and ESP warning lights
• Pump motor-related fault codes
• Clicking or grinding noises
• No pump operation during testing
• Low hydraulic pressure
• ABS activation failure during emergency braking

Depending on the condition of the unit, the motor may be repaired or replaced. A proper test is necessary before deciding which solution is suitable.

2. Pressure Sensor Fault

The ATE MK26 system relies on accurate pressure readings. The control unit uses this information to understand how much braking force is being applied and whether hydraulic pressure is behaving correctly.

A pressure sensor fault can cause:

• Incorrect brake pressure readings
• ESP warning lights
• ABS activation problems
• Brake pressure plausibility errors
• Sudden system shutdown
• Faults that return after clearing

The pressure sensor may be integrated into the hydraulic assembly or electronic unit, depending on the application. This is one reason a vehicle-specific diagnostic test is important.

3. Internal Electronic Failure

The electronic control section of the ATE MK26 can develop internal faults. These may be caused by age, vibration, heat, moisture or damaged solder joints.

Common internal failures include:

• Damaged circuit board tracks
• Failed voltage regulators
• Faulty electronic components
• Corroded connections
• Broken solder joints
• Internal memory or processor faults
• Water damage

An internal fault may cause several unrelated warning lights to appear together. In some cases, the vehicle may start normally but the ABS module will not communicate with the diagnostic tool.

4. Wheel Speed Sensor Errors

Not every ABS fault is caused by the ABS module itself. Wheel speed sensors are common sources of ABS warning lights.

A dirty, damaged or incorrectly installed sensor can send an unreliable signal to the ATE MK26 unit. The system may then believe that one wheel is rotating at a different speed from the others.

Possible causes include:

• Dirt or metal particles on the sensor
• Damaged sensor wiring
• Broken tone ring
• Incorrect wheel bearing installation
• Water inside the connector
• Sensor failure
• Excessive wheel bearing play

The wheel sensor and its wiring should always be tested before repairing or replacing the ABS control unit.

5. Low Voltage or Power Supply Problems

The ABS system is sensitive to voltage problems. A weak battery, poor alternator output or damaged ground cable can trigger misleading ABS faults.

Low voltage may cause:

• ABS pump motor supply errors
• Control unit communication faults
• Multiple warning lights
• Intermittent system failure
• Faults that disappear after restarting
• Repeated module shutdown

Before replacing an ATE MK26 unit, a technician should check the battery, charging system, fuses, grounds and main power connections.

ATE MK26 Fault Codes

The exact fault codes vary between manufacturers and vehicle models. The same ATE MK26 hardware may be used with different software and manufacturer-specific diagnostic systems.

Mercedes-Benz ESP Fault Code 5001

A common Mercedes-Benz-related fault is:

5001 – Control unit N30/4, Electronic Stability Program control unit, internal fault

This code usually points toward an internal problem in the ESP control unit. However, power supply, grounding and communication wiring should be checked before confirming an internal failure.

Possible causes include:

• Internal electronic damage
• Software or memory fault
• Voltage instability
• Communication interruption
• Water or corrosion damage

The solution may involve specialist module repair, software programming or replacement, depending on the test results.

Chrysler, Dodge and Jeep Code C2200

C2200 – Anti-lock brake module internal fault

This code is commonly associated with an internal ABS module problem. It may appear with ABS, traction control and electronic stability warning lights.

Possible causes include:

• Internal control unit failure
• Damaged electronic components
• Pump motor faults
• Poor power supply
• Communication problems
• Corrosion inside the module

A proper diagnostic process is needed because C2200 can sometimes be accompanied by other faults that provide more detail.

Chrysler, Dodge and Jeep Code C2116

C2116 – ABS pump motor supply voltage low

This code indicates that the pump motor is not receiving the correct voltage. The ABS module may be working, but the pump cannot operate correctly.

Possible causes include:

• Weak battery
• Charging system fault
• Damaged wiring
• Poor ground connection
• Blown fuse
• Defective pump motor
• Internal ABS unit failure

The vehicle’s voltage should be tested under load. Simply clearing the code will not fix the underlying problem.

Honda Code 52-01

52-01 – ABS pump motor relay open circuit

This fault may indicate a problem with the relay circuit controlling the ABS pump motor.

Possible causes include:

• Damaged relay
• Open circuit
• Loose connector
• Wiring damage
• Internal module fault
• Pump motor problem

The relay, wiring and pump circuit should be checked before deciding whether the ABS unit requires repair.

How to Diagnose an ATE MK26 ABS Problem

A correct diagnosis is more valuable than guessing from the warning lights. The following process can help identify the real cause.

Step 1: Scan the ABS System

Use a professional diagnostic scanner that can communicate with the vehicle’s ABS and ESP module. A basic engine-code reader may not access the braking system.

Record all stored, pending and history codes before clearing anything.

Step 2: Check Battery and Charging Voltage

Measure the battery voltage and alternator output. Low voltage can create several false or secondary faults.

The electrical system should be tested both at rest and while the pump motor is operating.

Step 3: Inspect Fuses and Grounds

Check the ABS fuses, relays, main power connections and ground points. Look for:

• Loose terminals
• Corrosion
• Burn marks
• Water contamination
• Damaged insulation
• Poor-quality previous repairs

Step 4: Test Wheel Speed Sensors

Inspect each sensor and its wiring. Check the tone rings and wheel bearings as well. A fault in one wheel speed signal can disable ABS and ESP functions.

Step 5: Check Hydraulic Components

Inspect the brake fluid level, brake lines and hydraulic connections. Any leak or air in the system can affect ABS operation.

Step 6: Test the Module

If the external systems are working correctly, the ATE MK26 unit may require specialist testing. This can reveal whether the fault is inside the electronic control unit, pump motor or hydraulic section.

Can an ATE MK26 ABS Unit Be Repaired?

In many cases, yes. Specialist ABS repair can be a practical alternative to buying a new unit.

A professional repair may include:

• Internal electronic testing
• Circuit board repair
• Pump motor repair or replacement
• Pressure sensor testing
• Connector repair
• Corrosion treatment
• Communication fault repair
• Software programming or reprogramming
• End-of-line testing

The advantage of repairing the original module is that it usually retains the vehicle-specific hardware and configuration. It can also be less expensive than purchasing a new dealer-supplied unit.

However, not every module is repairable. Severe corrosion, major hydraulic damage or extensive physical damage may make replacement the safer option.

Is It Safe to Drive With an ATE MK26 Fault?

It depends on the symptoms and the warning lights. If only the ABS light is on and the standard brakes feel normal, the vehicle may still stop normally, but anti-lock braking may not work.

If the brake pedal feels unusual, the brake warning light is red, the vehicle pulls to one side or braking performance has changed, do not continue driving without inspection.

ABS and ESP are safety systems. A fault can become more serious in heavy rain, snow, gravel or during emergency braking.

Why Professional Repair Matters

The ATE MK26 controls safety-critical braking functions. Incorrect repairs, poor soldering or unsuitable replacement parts can cause further faults.

A specialist repair service should be able to:

• Identify the exact failure
• Separate wiring faults from internal module faults
• Test the pump and electronics
• Protect the original coding where possible
• Program the unit when required
• Test the repaired unit before return
• Explain installation and bleeding requirements

A repair is only useful when the original problem has been correctly identified.

The ATE MK26 ABS unit is a dependable system, but age, heat, moisture, low voltage and internal component wear can eventually cause problems.

Warning lights, pump motor noise, pressure sensor errors and communication faults should be investigated quickly. Codes such as Mercedes-Benz 5001, Chrysler, Dodge and Jeep C2200, C2116, and Honda 52-01 can help point toward the source, but a complete diagnosis is still essential.

Before buying an expensive replacement unit, have the original ATE MK26 module tested by a specialist. In many cases, professional repair can restore ABS and ESP operation while reducing unnecessary costs.
