Working on a modern Tesla is very different from working on a traditional gasoline vehicle. The car may look quiet and switched off, but several electronic systems can remain active after the display goes dark.
That is why the low-voltage battery disconnect procedure on the 2024 and newer Tesla Model 3 must be followed in the correct order.
The procedure includes three important waiting periods:
- At least 30 seconds for the climate-control and temperature-management systems to shut down.
- At least 1 minute during which the windows must not move before low-voltage power is disconnected.
- At least 2 minutes after disconnecting the First Responder Loop, allowing electrical circuits to discharge.
These timings are not unnecessary delays. They give the vehicle’s control modules, contactors and electrical circuits time to complete their shutdown sequence.
Tesla’s current service information identifies the 2024 Model 3 lithium-ion low-voltage procedure under correction code 17010410, with a flat-rate time of 0.06 hours. Earlier references may show a different code, such as 17010400, so technicians should always confirm the procedure and code for the exact vehicle configuration before beginning work. (TESLA)
Safety warning: Disconnecting the low-voltage battery does not automatically make the high-voltage system safe. High-voltage components such as the compressor, inverter, drive unit and high-voltage battery may still contain dangerous voltage. A separate Tesla high-voltage disablement procedure is required before working on high-voltage components.
What Is the Low-Voltage Battery Used For?
The low-voltage battery powers many of the systems that make the vehicle operate normally. Depending on the vehicle configuration, it may support:
- Vehicle computers and control modules
- Door locks and latches
- Lighting systems
- Touchscreen and communication systems
- Safety and restraint systems
- Window regulators
- Charging and power-management controls
- Low-voltage relays and contactors
- Emergency-response electrical circuits
The low-voltage battery is not the same as the large high-voltage traction battery under the vehicle floor.
The high-voltage battery supplies energy for propulsion and many high-power systems. The low-voltage battery supplies energy to the control electronics that tell those systems what to do.
This distinction is important because disconnecting the low-voltage battery may shut down the vehicle’s electronics without fully isolating the high-voltage battery.
Why the Three Waiting Times Matter
1. The 30-Second Climate-Control Shutdown
Before disconnecting low-voltage power, disconnect every charging cable and switch off the climate-control system from the touchscreen.
Tesla’s service procedure instructs technicians to wait at least 30 seconds after turning off climate control. This gives the temperature-management system time to complete its shutdown process. (TESLA)
The system may still be operating pumps, valves, fans or other components even when the cabin climate setting appears to be off. Opening doors and moving through the vehicle too quickly can also wake up modules that were beginning to shut down.
The simple rule is:
Charging cable disconnected. Climate control switched off. Wait 30 seconds.
Do not treat this as an approximate countdown. Build the full waiting time into the repair process.
2. The One-Minute Window Rule
Before disconnecting the low-voltage battery, all windows must remain completely still for at least one minute.
This is one of the most important details in the updated procedure. Tesla added a specific caution that the windows must not be moved for at least one minute before disconnecting 12-volt or low-voltage power. Moving a window too soon may create a risk of component damage. (TESLA)
The windows should be lowered before final power-down because the vehicle may need to be accessed or moved during the repair. Once the windows are positioned, do not:
- Open or close the doors repeatedly
- Touch the window switches
- Lock or unlock the vehicle
- Press the door handles
- Wake the vehicle from the phone application
- Activate any feature that could move the glass
A good workshop habit is to lower the windows early, then start the one-minute timer only after every window has stopped moving.
3. The Two-Minute FRL Discharge Time
After the low-voltage battery connector has been disconnected, the First Responder Loop, commonly called the FRL, is disconnected.
Tesla’s service instructions then require a wait of at least two minutes so that the electrical circuits can fully discharge. (TESLA)
The FRL is part of the vehicle’s emergency-response and safety architecture. It is not just another ordinary wiring connector. It must be handled carefully, released in the correct direction and reconnected in the correct order.
The key sequence is:
- Disconnect the low-voltage battery connector.
- Disconnect the FRL.
- Wait at least two minutes.
- Continue with the repair only after the discharge period has passed.
Skipping the two-minute wait can leave stored electrical energy in certain circuits. That may create a risk of damage, unexpected vehicle behavior or personal injury.
Before You Begin
Prepare the work area before touching the vehicle.
You should have:
- The correct Tesla service procedure for the exact vehicle
- Suitable trim-removal tools
- A reliable timer
- Protective gloves and eye protection
- A clean shop towel
- Adequate workshop lighting
- A safe method of preventing doors from latching
- Approved high-voltage safety equipment if high-voltage work is planned
- A properly rated multimeter when voltage verification is required
The service area should be dry, stable and free from unnecessary people or equipment.
Do not begin the procedure while the vehicle is connected to a charger. Confirm that the charging cable is fully removed and stored safely away from the work area.
Also make sure the car is parked securely. If the vehicle will be raised, lifted or moved during the repair, follow the appropriate lifting and parking instructions.
2024+ Model 3 Low-Voltage Battery Disconnect Procedure
The following overview explains the correct order in practical language. It is not a replacement for Tesla’s official repair documentation or technician training.
Step 1: Disconnect All Charging Equipment
Remove every charging cable from the vehicle before beginning.
Check the charge port and confirm that no cable remains attached. This includes home charging equipment, destination charging equipment and service charging leads.
A connected cable can keep vehicle systems active and may prevent the expected shutdown sequence.
Step 2: Turn Off Climate Control
From the center touchscreen, switch off the climate-control or temperature-management system.
After doing this, wait at least 30 seconds.
Avoid pressing other controls during this time. The goal is to let the vehicle complete its normal shutdown process without interruption.
Step 3: Open the Doors and Lower the Windows
Open the necessary doors and lower all windows as required by the service procedure.
The windows may need to be lowered because disconnecting low-voltage power can affect normal door and window operation. Tesla’s procedure also instructs technicians to prevent the rear door latches from securing during the work.
A shop towel can be passed halfway through the rear door strikers to help prevent accidental latch engagement. Use care and do not force the doors or latches.
Once the windows have stopped moving, do not touch the window controls again.
Step 4: Wait One Full Minute
Start the one-minute timer only after the windows have completely stopped.
During this period:
- Do not move the windows.
- Do not close and reopen the doors unnecessarily.
- Do not use the touchscreen.
- Do not wake the vehicle through the Tesla mobile app.
- Do not press exterior door handles.
Waiting a full minute is a small step that can protect expensive electronic components.
Step 5: Remove the Required Rear Under-Hood Trim
Remove the rear under-hood apron or trim panel according to the applicable Tesla service instructions.
Use the correct trim tools and work slowly. Plastic clips can become brittle, especially in cold temperatures. Pulling directly upward or twisting the panel aggressively may break clips or damage the panel.
Keep fasteners and clips organized so they return to their original locations during reassembly.
Step 6: Power Off the Vehicle From the Touchscreen
Use the center display to power off the vehicle.
The typical menu path is:
Controls > Safety > Power Off > Power Off
Follow the prompts displayed on the screen.
After selecting Power Off, avoid interacting with the vehicle. Give the car time to complete the shutdown sequence.
The exact menu appearance may vary slightly with software version, so always follow the wording shown on the vehicle display.

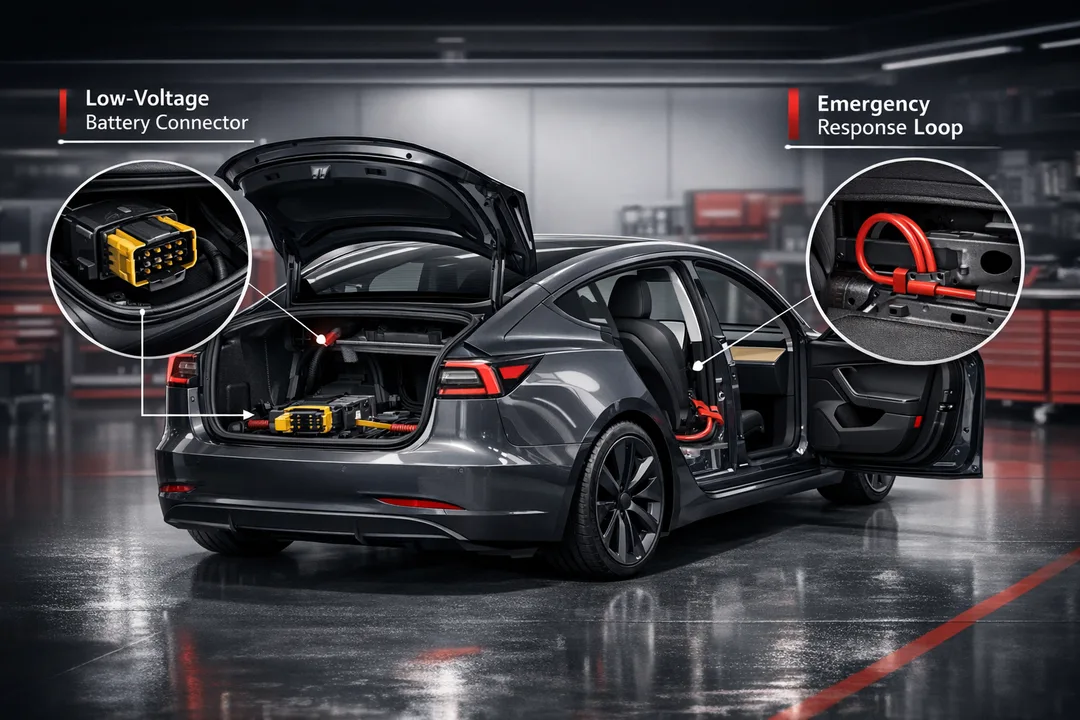

Step 7: Release the Low-Voltage Battery Connector
The 2024+ Model 3 lithium-ion low-voltage battery connector uses multiple locking features.
The general release sequence includes:
- Pull up the green locking tab.
- Release the first black locking feature.
- Release the second black locking feature or connector lock.
- Carefully pull the low-voltage connector upward and away from the battery.
Do not yank the connector by its wires.
The connector should be removed by handling the locking mechanism and housing. If it does not release smoothly, stop and inspect the lock position. Forcing it can damage the connector, terminal or battery connection.
The green and black locking features should be fully released before the connector is pulled.
Step 8: Disconnect the First Responder Loop
After the low-voltage battery connector has been disconnected, release the FRL.
The FRL has its own locking feature, commonly identified by a colored lock tab. Follow the service-manual direction exactly. Do not cut the loop, pull on the wiring or use excessive force.
Tesla service documentation identifies the FRL disconnection as part of procedures involving electrical discharge and high-voltage service preparation. (TESLA)
Step 9: Wait at Least Two Minutes
Once the FRL has been disconnected, wait at least two minutes.
This allows the relevant electrical circuits to discharge.
Do not use this time to reconnect parts, move the vehicle or switch systems back on. Keep the vehicle undisturbed until the full two-minute period has passed.
For professional workshops, recording the start and end time on the job sheet is a useful way to prevent mistakes when several vehicles are being serviced.
Reconnecting the Low-Voltage System
Reconnection must be completed in the correct reverse order.
The basic sequence is:
- Reconnect the FRL first.
- Reconnect the low-voltage battery connector.
- Push the black connector locks into their secured positions.
- Push the green locking tab down.
- Confirm that every lock is fully seated.
- Reinstall the trim panels and clips.
- Restore the vehicle according to the applicable service procedure.
- Check the vehicle for warning messages or abnormal operation.
The FRL must be connected before the low-voltage battery connector is fully restored.
Never leave a connector partially locked. A connector that appears connected but has not been fully secured may create intermittent electrical faults, warning messages or a no-start condition.
After reconnection, inspect the area carefully:
- No wiring should be trapped beneath trim.
- No connector should be under tension.
- Locking tabs should be fully engaged.
- No tools or shop towels should remain in the service area.
- Door latches should operate normally.
- Windows should respond correctly after the vehicle is awake.
- The touchscreen should start without unexpected warnings.
Does Disconnecting the Low-Voltage Battery Disable High Voltage?
No.
This is one of the most common misunderstandings when working on electric vehicles.
Disconnecting the 16-volt or low-voltage battery can shut down many vehicle control systems, but it does not by itself guarantee that all high-voltage energy has been isolated.
The high-voltage battery, compressor, inverter and other high-voltage components may still contain hazardous voltage. Tesla’s service documentation specifically instructs technicians to perform the high-voltage disablement procedure before servicing high-voltage components. (TESLA)
That means the low-voltage disconnect procedure should not be used as a substitute for:
- High-voltage system disablement
- Voltage verification
- Insulation testing
- High-voltage battery service procedures
- Collision-repair isolation procedures
- Emergency-response training
If the repair involves orange high-voltage cables, the traction battery, inverter, drive unit, compressor, onboard charger or other high-voltage equipment, stop and use the dedicated high-voltage service procedure.
Common Mistakes to Avoid
Disconnecting the Battery Too Quickly
The most frequent mistake is skipping one of the waiting periods.
Remember the sequence:
30 seconds for system shutdown, 1 minute with no window movement, and 2 minutes after FRL disconnection.
These are three separate timing requirements.
Moving the Windows After the Timer Starts
Even a quick adjustment can reset the waiting period or create a risk of damage.
Lower the windows first. Then leave them alone.
Pulling the Connector Before Releasing the Locks
The low-voltage connector has locking mechanisms that must be released in sequence. Pulling against a locked connector can damage the housing or terminals.
Disconnecting the FRL First
The correct order is to disconnect the low-voltage battery connector before disconnecting the FRL.
During reconnection, the order is reversed: connect the FRL first, then reconnect the low-voltage battery connector.
Assuming the Vehicle Is Fully Safe
A dark touchscreen does not mean the high-voltage system is safe.
Always identify the repair category before starting. Low-voltage work and high-voltage work require different procedures, tools and safety controls.
Relying on an Unverified Diagram
Connector locations and lock directions can vary by model year, market and vehicle configuration.
A diagram recreated for training may be helpful, but it should never override the official procedure for the vehicle in the workshop.
- [] Vehicle systems checked after startup
- [] Warning messages investigated before returning the car
