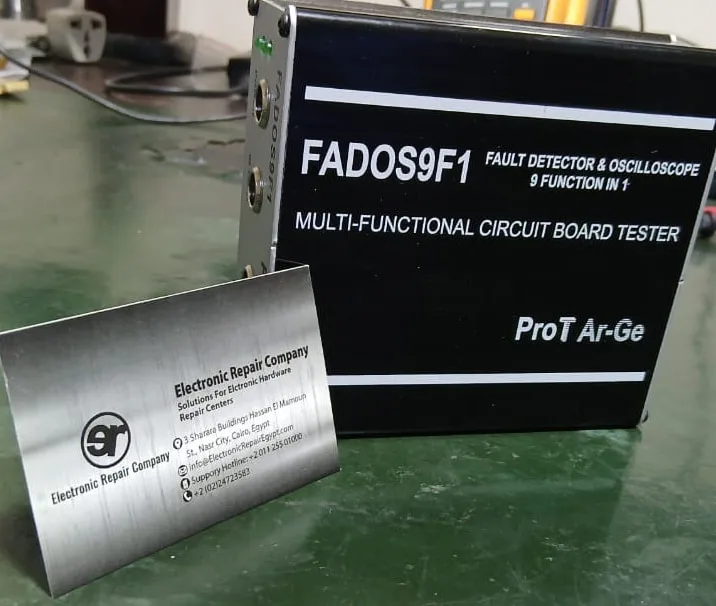

FADOS9F1 [New Version]

Fault Detector and Oscilloscope 9 Functions in 1 Device

It records test data of your boards with pictures, has a non-touch IR temperature sensor, and includes a DC power supply output with adjustable voltage and current.​


Need a reliable, all-in-one electronic board tester?

​The FADOS9F1 Curve Tester is your go-to device.


​It packs 9 functions into one, allowing you to test continuity, resistance, capacitance, inductance, and more. Plus, with a built-in IR temperature sensor and DC power supply, it’s ready for any challenge.



For top performance and great value, choose the FADOS9F1 Curve Tester.

​Get yours today.

Image description
  • Compared to the FADOS7F1, the FADOS9F1 also includes a programmable power supply
  • It also has non-contact IR temperature measurement
  • The programmable power supply can be connected to the power lines of the unit under test
  • You can set a maximum voltage value before testing
  • After pressing the power test button, the software increases the output in 100 mV steps up to the set maximum voltage
  • The voltage and current values are saved automatically in a file
  • After that, the IR temperature measurement helps detect overheated components
  • This makes it easier to find faulty parts by locating components with higher abnormal temperature


Image description

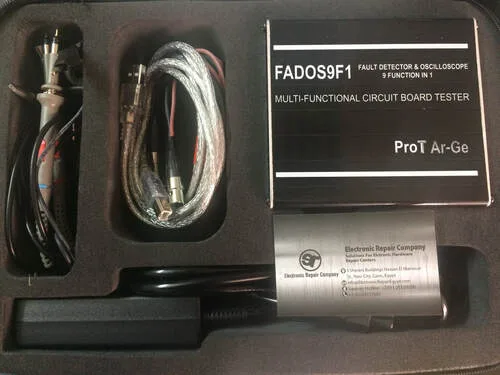

FADOS9F1 Package Contents:

  • 1 × FADOS9F1 device
  • Software
  • 1 × IR temperature probe
  • 2 × oscilloscope probes
  • 1 × USB cable
  • 1 × DC cable
  • 1 × power adapter
  • 1 × FADOS9F1 handbag


Image description
